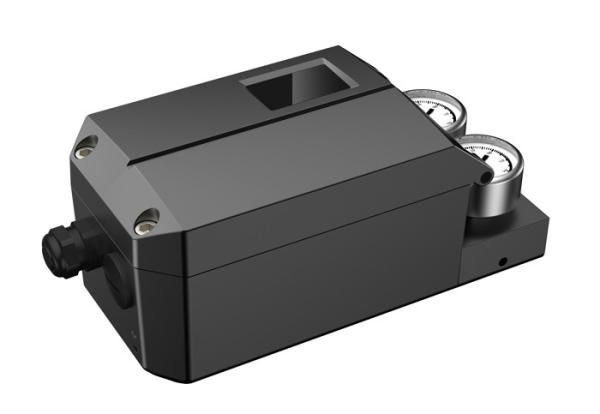

Current Pneumatic HART Communication Control Valve Positioner
Current Pneumatic HART Communication Control Valve Positioner
Specifications
Brand Name :
POWERFLOW
Model Number :
IP6000
Certification :
NEPSI, ISO9001, HART, CE
Place of Origin :
CHINA
MOQ :
1 Nos
Price :
Quotation Offered by Email.
Payment Terms :
T/T
Supply Ability :
50Nos/Week for every single Customer.
Delivery Time :
10-15 Days
Packaging Details :
CTN, 21*26*16CM
Stroke Range :
Linear with 10-100mm; Rotary with 30-100°
Ambient Temp. :
-20 - 70℃
Basic Error :
±0.5%
Hysteresis Error :
≤0.5%
Supply Pressure :
0.14 - 0.7MPa
Feedback Signal :
4 - 20mA
Description

IP6000 Series HART Communication Smart Valve Positioner with 4-20mA Feedback Signal

​1. Product Description

Smart Valve Positioner IP6000 Series is a current pneumatic smart valve positioner with HART communication and 4-20mA feedback signal. It's easy to start-up and with rich additional functions.

​2.Technical Datas

Material Aluminum
Set-point signal 4-20mA DC
Min operating Current 3.6mA DC
Vibration resistance

0.15mm,10Hz-60Hz,20 cycle/axis

20m/s2,60Hz-500Hz,20 cycle/axis

Recommended range for control valve

≤ 20 m/s2,no resonance peak
Ambient Temperature -20 - 70°C
Gas source requirement ISO 8573-1 Class 3
Steady state air consumption ≤ 0.4 L/min
Supply Pressure 0.14 - 0.7MPa
Flow 55 L/min (Sup=0.14MPa)
Stroke Control Range Linear 10-100mm; Rotary 30-100°
Electrical connection M20*1.5
Pneumatical connection G1/4
Protection class IP66
Explosion Proof Ex ia IIC T4/T6
Weight 2KG

3. Dimensions

  • Positioner Dimensions

Current Pneumatic HART Communication Control Valve Positioner

  • Bracket for linear actuators

Current Pneumatic HART Communication Control Valve Positioner

  • Bracket for rotary actuators

Current Pneumatic HART Communication Control Valve Positioner

  • Seperate install sensor

Current Pneumatic HART Communication Control Valve Positioner

4. Product type selection

Current Pneumatic HART Communication Control Valve Positioner

Remarks: Power off State option is safe by default. There is no pressure gauge for the type of seperate install positioners.

5. Notes

Above is brief introduction of IP6000, if you need more info, please contact us.
