Stainless Steel 304 Y Type Control Valve
Stainless Steel 304 Y Type Control Valve
Specifications
Brand Name :
POWERFLOW
Model Number :
2710+1500
Certification :
ISO9001. CE.
Place of Origin :
CHINA
MOQ :
1 Nos
Price :
Quotation Offered by Email.
Payment Terms :
T/T
Supply Ability :
50Nos/Week for every single Customer.
Delivery Time :
10-15 Days
Valve Body Material :
Stainless steel 304(CF8)/ 316(CF8M)
Actuator Material :
Plastic/Stainless steel 304(CF8)/ 316(CF8M)
Seal Material :
PTFE/PPL
Working Pressure :
16Bar
Optional Controller :
1500, 1600, 1880 Series
Weight :
Depending on valve size
Description

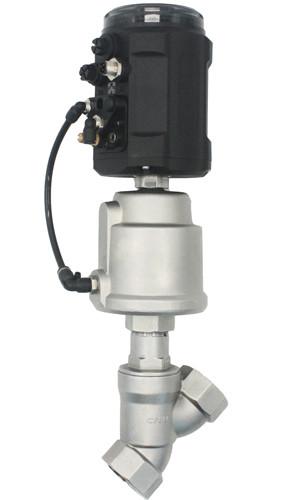

2710 Series Stainless Steel 304(CF8) Angle Seat Valve with 1500 smart positioner

1. Product description

The angle seat control valve is combined with the intelligent positioner (1500) and the angle seat valve(2710). The valve spool design of the angle seat valve (2710) is different from the angle seat valve (2700). It’s flow characteristic is more suitable for the flow adjustment.

The product can easily be operated via the keypad. It detects the external setting signal and the signal of internal displacement sensor, and adjusts valve stroke quickly and accurately by using automatic control algorithm and PWM control technology.

Stainless Steel 304 Y Type Control Valve

2. 2710 Angle Seat Valve Technical Datas

Valve Body Material Stainless steel 304(CF8)/ 316(CF8M)
Actuator Material Plastic/ Stainless steel 304(CF8)/ 316(CF8M)
Seal Material PTFE/ PPL
Working Pressure 16Bar
Available Size DN15 - DN100
Working Temperature -20 - 220℃
Available Connection Thread, Clamp, Flanged, Weldind
Air Supply 2.5 - 8Bar
Standard DIN, SMS, ISO, IDF, RJT, 3A, etc
Certificate CE

3. 2710 Type Selection

Stainless Steel 304 Y Type Control Valve

4. Assembling

The positioner and Valve is connected by thread. You can easily assemble them with a #32 wrench.

After assembling, the Positioner can still have 360°Rotation to fix to your favourite position

Stainless Steel 304 Y Type Control Valve

5. Dimensions

Stainless Steel 304 Y Type Control Valve

Type Actuator D R G1 H/LA
Screw thread

Welding

ISO1127/4200

Welding

DIN11850
DN10 40 50.5 27 G1/8 234 235 235
50 62 34 G1/8 246 247 247
DN15 40 50.5 27 G1/8 234 234 234
50 62 34 G1/8 246 246 246
DN20 50 62 34 G1/8 250 250 250
DN25 50 62 34 G1/8 256 256 256
63 77 41.5 G1/8 278 278 278
DN32 63 77 41.5 G1/8 286 286 286
80 98 52 G1/4 303 303 303
DN40 63 77 41.5 G1/8 294 294 294
80 98 52 G1/4 310 310 310
100 121 63 G1/4 328 328 328
DN50 63 77 41.5 G1/8 305 305 305
80 98 52 G1/4 320 320 320
100 121 63 G1/4 338 338 338
DN65 80 98 52 G1/4 345 345 345
100 121 63 G1/4 362 362 362

6. Flow characteristics

Stroke(%) Kv(%) Stroke(%) Kv(%)
0 0 55 56.3
5 5.1 60 64.8
10 6.3 65 74.9
15 6.6 70 82.7
20 7.2 75 84.3
25 7.9 80 89.1
30 10.9 85 93
35 17.8 90 97.3
40 26.7 95 97.9
45 35.2 100 100
50 45.1

Stainless Steel 304 Y Type Control Valve
