12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
Specifications
Brand Name :
SMATIPC
Model Number :
IEXP-502
Certification :
CE, ROHS,FCC,ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Paypal
Delivery Time :
5-8 work days
Packaging Details :
Each pc for one neutral box
CPU :
Intel 12th Gen Core processor
RAM :
1xDDR5 4800 , max 32 GB
Storage :
SSD + WIFI + 4G/5G at the same time
Network :
3xIntel i226-V 2.5G LAN
COM :
2xCOM(RS232/485 )
Display :
3xHD-MI, triple display
Graphics :
Intel(R) UHD Graphics
Extensible :
2xUSB2.0, 4xpin GPIO (Standard None)
Installation :
VESA, Wall mount, DIN-rail (optional)
Description

12th Gen Core i3 i5 i7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC

Features

All-aluminum alloy structure, fanless cooling design
Intel 12th Gen Core i3 i5 i7 processor
3xM.2 slots ( SSD + WIFI + 4G/5G at the same time)
3xHDMI, synchronous/asynchronous triple display
3xIntel i226-V 2.5G LAN
2xCOM(RS232/485 optional)
Optional extensions: 9～36V Wide voltage,4 pin GPIO, 4G module, 5G module, WIFI/Bluetooth module
Other Function:Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption

Specification

Parameter-IEXP-502

Processor

Intel Core i3 1215U (6 cores 8 threads, Turbo 4.4 GHz)
Intel Core i5 1235U (10 cores12 threads, Turbo 4.4 GHz)

Intel Core i7 1255U (10 cores 12 threads, Turbo 4.7 GHz)

Chipset

Alder Lake

Memory

2xDDR5 4800 , Max 32 GB

Storage

1xM.2 2280 M-key slot(Only support NVME)
1x2.5 inch HDD

I/O Port

Display Port

 3xHD-MI (Resolution 4096x2160@ 60Hz)

Lan Port

3xIntel i226-V 12.5Gbe LAN

USB

 4xUSB 3.1

COM

 2xCOM(RS232/485 optional)

Power supply

 1xDC 12V input
Expansion
WIFI 1xM.2 2230 E-key slot (support WIFI, BT)
4G/5G 1xM.2 3052 B-key slot (USB3.0 signal), External SIM card slot
Extensible 2xUSB2.0, 4xpin GPIO (Standard NOT included)

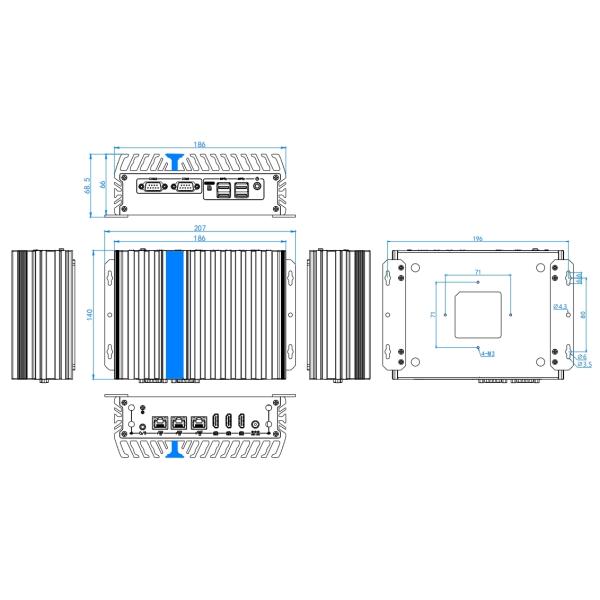

Drawing

12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC

Application

12th Gen Core I3 I5 I7 DDR5 Ram M.2 NVME SSD 2.5G Lan Fanless Mini PC
