SMD3225 Electronic Crystal Oscillator 18.080MH Load For Security Camera
SMD3225 Electronic Crystal Oscillator 18.080MH Load For Security Camera
SMD3225 Electronic Crystal Oscillator 18.080MH Load For Security Camera
SMD3225 Electronic Crystal Oscillator 18.080MH Load For Security Camera
SMD3225 Electronic Crystal Oscillator 18.080MH Load For Security Camera
SMD3225 Electronic Crystal Oscillator 18.080MH Load For Security Camera
Specifications
Brand Name :
XTY
Model Number :
3225 18.080MHZ
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Price :
0.03~0.22
Delivery Time :
7days
Packaging Details :
3000pcs/tape.
Payment Terms :
T/T
Supply Ability :
1 week
Description :
3225
Nominal Freq :
XTY-18.080MHZ
Frequency Stability :
10PPM
Load Capacitance :
8~20Pf
Certificate :
ISO9001, ISO14001, SGS, RoHS
Shipment :
DHL, UPS, Fedex, EMS,China Post
Description

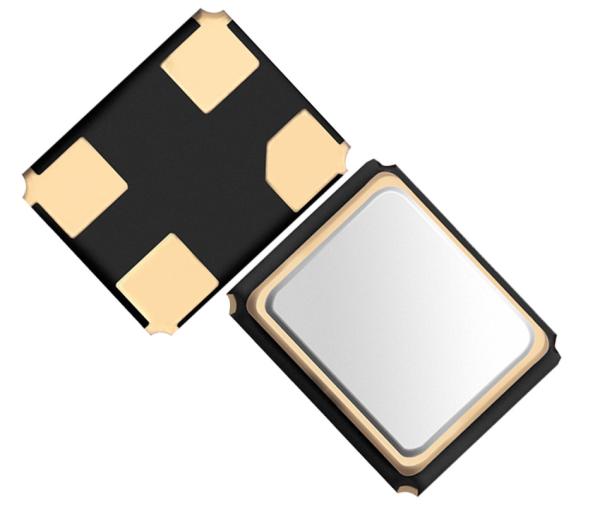

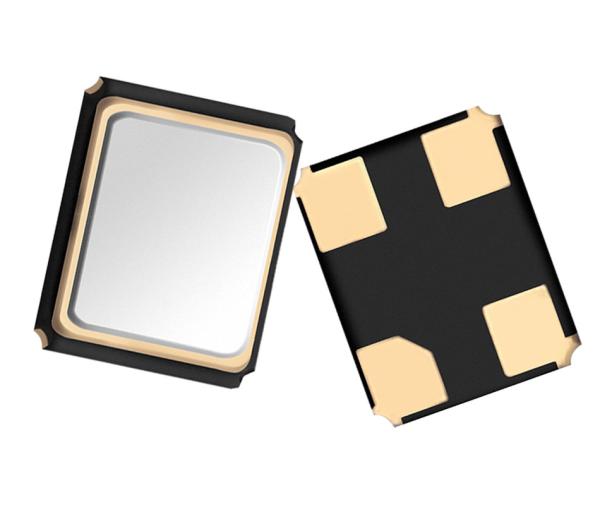

4 PINS csf SMD Passive Crystal Oscillator Consumer Electronics 3.2*2.5 18.080MHZ

Product application

Ideally suited designed for ,TPMS HDTV,

Product features

Automatic mounting
Emboss taping specification
Suitable for Reflow soldering
Ultra thin,thickness 0.6mm
Leadless type
High precision characteristic covering up to high frequency range

Product specification

Type 3225
Frequency Range(MHZ) 18.080MHZ
Frequency Tolerance(at25℃) ±10PPm ,±5PPm at25℃+/-2℃
Frequency Stability vs. Temp(FL-T) ±10PPm,±20PPm ,±30PPm
Operating Temperature range -20~+70℃ -40~+85℃
Storage Temperature range -45~+80℃
Temperature Characteristics ±10PPm ±20PPm
Load Capacitance 8 to 20 Pf or Serles
Aging ±3 PPm/year
Insulation Resistance 500MΩ(DC100V±15V)

Dimension

SMD3225 Electronic Crystal Oscillator 18.080MH Load For Security Camera

Frequency change:≤±5ppm

SMD3225 Electronic Crystal Oscillator 18.080MH Load For Security Camera

Product advantage

An integrated structure of crystal resonator and thermistor.

High Quality Produce with SGS ,ROHS(JDS OR OEM ) ;

High production capacity;

Professional Electronics Components supplier and over 17 experience TECH

Advanced production line and test equipment from USA,JP,etc.

The company since its inception, adhere to the "strategy first, business success, management oriented" business promotion concept, step by step to become the most widely in Shenzhen and similar companies, the industry influential enterprises.

Products lead-time

Product Lead Time
JU2*6 JU3*8 1~2 weeks
SMD Security Crystal 1~2 weeks
DIP Oscillator 1~2 weeks
SMD Oscillator 1~2 weeks
TCXO Crystal 2~4 weeks
Watch Crystal 1~2 weeks
Bluetooth Crystal 1~2 weeks
Medical Crystal Oscillator 2~4 weeks

FAQ

Packing

3000pcs/tape.

Samples and technical support can be provided free of charge.
