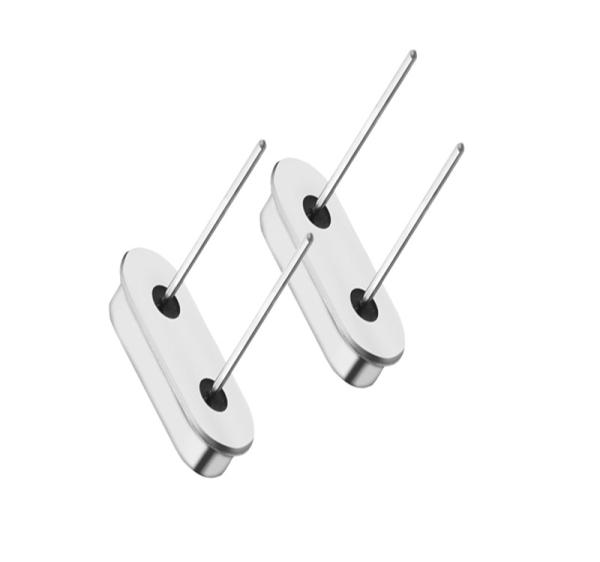

High precision Passive Crystal Oscillator , 4mhz oscillator Electronic Components
High precision Passive Crystal Oscillator , 4mhz oscillator Electronic Components
High precision Passive Crystal Oscillator , 4mhz oscillator Electronic Components
High precision Passive Crystal Oscillator , 4mhz oscillator Electronic Components
Specifications
Brand Name :
XTY
Model Number :
4.000MHZ
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Price :
0.03~0.22
Frequency Toler :
±20ppm
Load Capacitan :
20PF
Package / Case :
DIP
Aging :
± 3ppm / year Max
Drive Level :
0.01μW ~ 300μW, 100μW typical
Packaging Details :
200pcs or 1000pcs /bag
Delivery Time :
7days
Payment Terms :
T/T
Supply Ability :
1 week
Description

DIP Oscillator 27.000MHz 20PF Crystal Oscillator HC - 49S 2Pin 20ppm

Product Application

For Electrical appliances

PDA, DSC

USB interface card

Product Features

2 pin Resonator.
Lead-free production and RoHS compliance

Product Specification

Type HC-49S
Frequency Range(MHZ) 4.000MHZ
Frequency Tolerance(at25℃) ±10PPm ,±5PPm at25℃+/-2℃
Frequency Stability vs. Temp(FL-T) ±10PPm,±20PPm ,±30PPm
Operating Temperature range -20~+70℃ -40~+85℃
Storage Temperature range -45~+80℃
Temperature Characteristics ±10PPm ±20PPm
Load Capacitance 8 to 20 Pf or Serles
Aging ±3 PPm/year
Insulation Resistance 500MΩ(DC100V±15V)

Product Advantage

1. Our products are all original and new from manufacturer. It must be work if the model number is correct.

2. We have advanced testing equipments
3. Get the international standard management sysem ISO9001,RoHS
4. All products before sending client,we make 72 hours aging test
5. We have 180days warranty
6. During the guarantee period, if the items you purchased from our store are out of perfected quality, pls notify us within 3 days after delivery, we will return the new products when we got your message.

Dimension

High precision Passive Crystal Oscillator , 4mhz oscillator Electronic Components

Refluence examination

Frequency change:≤±5ppm

High precision Passive Crystal Oscillator , 4mhz oscillator Electronic Components

High precision Passive Crystal Oscillator , 4mhz oscillator Electronic Components

FAQ

Packing

200pcs/bag .

Samples and technical support can be provided free of charge.
