2 Pin Resonator Clipped Sine Wave Tcxo Oscillator 40ºC ~ + 85ºC Operating Temp
2 Pin Resonator Clipped Sine Wave Tcxo Oscillator 40ºC ~ + 85ºC Operating Temp
2 Pin Resonator Clipped Sine Wave Tcxo Oscillator 40ºC ~ + 85ºC Operating Temp
2 Pin Resonator Clipped Sine Wave Tcxo Oscillator 40ºC ~ + 85ºC Operating Temp
Specifications
Brand Name :
XTY
Model Number :
3.579545MHZ~48MHZ
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Price :
0.03~0.22
Frequency Toler :
±20ppm
Load Capacitan :
20PF
Package / Case :
DIP
Aging :
± 3ppm / year Max
Shipping :
By Air
Packaging Details :
200pcs or 1000pcs /bag
Delivery Time :
7days
Payment Terms :
T/T
Supply Ability :
1 week
Description

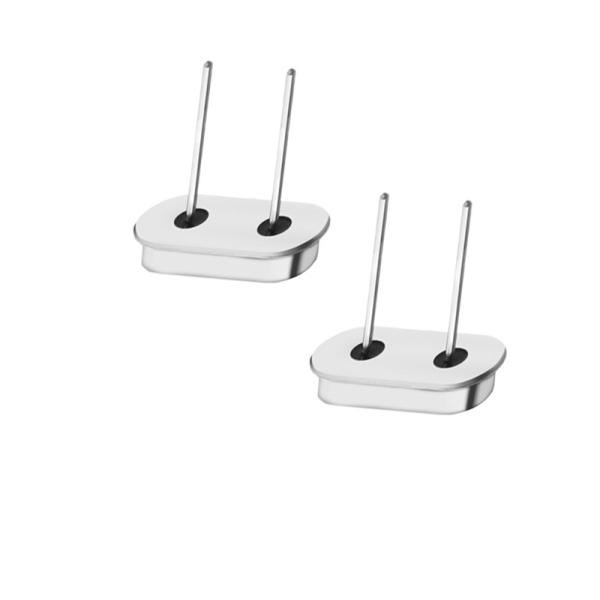

Hot Sale DIP Oscillator Quartz Crystal Resonator 40ºC ~ + 85ºC HC-49S

Product Application

For Mobile TV, DVD , Electronic equipment , etc.

Product Features

Able to by means of a metal case and completely sealed high solution characteristics

Copes with high density mounting and is the optimum for mass production

2 pin Resonator.
Lead-free production and RoHS compliance

Product Specification

Type HC-49S
Frequency Range(MHZ) 3.579545MHZ~48MHZ
Frequency Tolerance(at25℃) ±10PPm ,±5PPm at25℃+/-2℃
Frequency Stability vs. Temp(FL-T) ±10PPm,±20PPm ,±30PPm
Operating Temperature range -20~+70℃ -40~+85℃
Storage Temperature range -45~+80℃
Temperature Characteristics ±10PPm ±20PPm
Load Capacitance 8 to 20 Pf or Serles
Aging ±3 PPm/year
Insulation Resistance 500MΩ(DC100V±15V)

Product Advantage

1. Our products are all original and new from manufacturer. It must be work if the model number is correct.

2. We have advanced testing equipments
3. Get the international standard management sysem ISO9001,RoHS
4. All products before sending client,we make 72 hours aging test
5. We have 180days warranty
6. During the guarantee period, if the items you purchased from our store are out of perfected quality, pls notify us within 3 days after delivery, we will return the new products when we got your message.

Dimension

2 Pin Resonator Clipped Sine Wave Tcxo Oscillator 40ºC ~ + 85ºC Operating Temp

Refluence examination

Frequency change:≤±5ppm

2 Pin Resonator Clipped Sine Wave Tcxo Oscillator 40ºC ~ + 85ºC Operating Temp

2 Pin Resonator Clipped Sine Wave Tcxo Oscillator 40ºC ~ + 85ºC Operating Temp

FAQ

Packing

200pcs/bag .

Samples and technical support can be provided free of charge.
