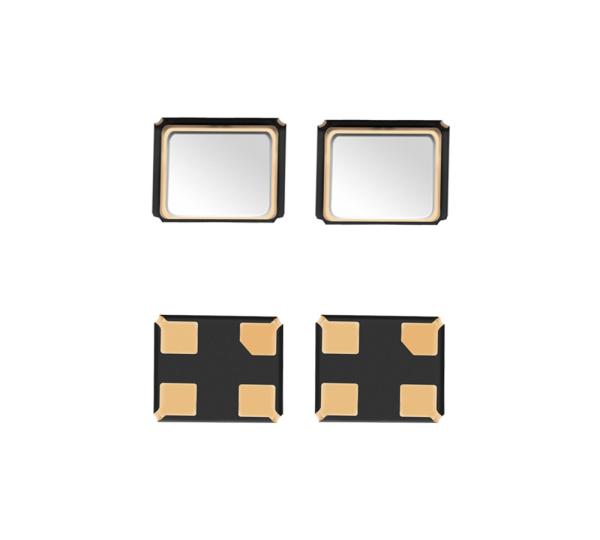

Low Frequency Crystal Oscillator SMD 24.576MHZ 2.0*1.6mm -20 TO +70℃

Packaging Details

Sub-functionally divided into passive crystal oscillator and active crystal oscillator. The passive crystal is the quartz crystal resonator, and the active crystal is the quartz crystal oscillator.
Passive crystal is only a quartz crystal chip, the use of the corresponding capacitance, inductance, resistance and other peripheral circuits to work, the accuracy is lower than the crystal oscillator, but it does not require power supply, start-up circuit can start vibration, there are generally Two pins, the price is lower.
Active crystal contains quartz crystal and matching capacitors and other peripheral circuits, high precision, the output signal is stable, do not need to design peripheral circuits, easy to use, but need power supply, the active crystal is usually four pin sealed, with power, ground Line, oscillation output and a free end. Special attention should be paid to the use of active crystal oscillator. The power supply must be regulated and the power supply lead as short as possible, and should be as common as the chip in the system that uses the crystal oscillator signal.

Product description

The crystal is usually matched with the PLL circuit, the clock frequency to provide system required. If different subsystems need different frequency clock signal can be used in different phase locked loop is connected with the same crystal to provide.

Product application

For Bluetooth.PCs and hand-held electronic products.

Product specification

Dimension

Frequency change:≤±5ppm

Product advantage

An integrated structure of crystal resonator and thermistor.

High Quality Produce with SGS ,ROHS(JDS OR OEM ) ;

High production capacity;

Professional Electronics Components supplier and over 17 experience TECH

Advanced production line and test equipment from USA,JP,etc.

The company since its inception, adhere to the "strategy first, business success, management oriented" business promotion concept, step by step to become the most widely in Shenzhen and similar companies, the industry influential enterprises.
