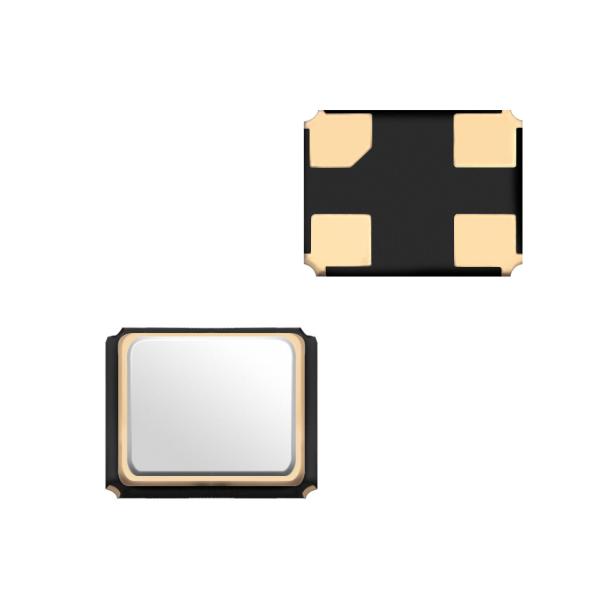

Optical Transceiver SMD Crystal Oscillator 25MHZ 3225 4 Pin 10ppm Frequency
Optical Transceiver SMD Crystal Oscillator 25MHZ 3225 4 Pin 10ppm Frequency
Specifications
Brand Name :
XTY
Model Number :
SMD 3.2×2.5
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Description :
SMD 3225
Nominal Freq :
XTY-25.000MHZ
Frequency Stability :
5PPM,10PPM
Operating Temperature Range :
＜7PF
Price :
0.03~0.22
Packaging Details :
3000pcs/tape.
Delivery Time :
7days
Payment Terms :
T/T
Supply Ability :
1 week
Description

SMD Crystal Oscillator 25MHZ 3225 4Pin10ppm Made in China Rohs

product application

1 , The network card chip

2 , Network set-top box

3 , Optical transceiver

product features

25m crystal for the network card section, the network card to provide a working clock, but also for the NVIDIA chip power clocking in the required clock, voltage 1.1-2.2v.

The Crystal It has the characteristics of stability and anti-interference. It is widely used in various electronic products.

Mechanical test:

The quartz crystal unit shall be subjected to normal atmospheric conditions for 1hr before being tested.

Dropping Test:

The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage,after allowing the crystal to fall freely.

From 75 cm of height 3 times on the firmed wood.

product advantage

The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop. The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.

Product specification

Type SMD3225
Frequency Range(MHZ) 25.000MHZ
Frequency Tolerance(at25℃) ±10PPm ,±5PPm at25℃+/-2℃
Frequency Stability vs. Temp(FL-T) ±10PPm,±20PPm ,±30PPm
Operating Temperature range -20~+70℃ -40~+85℃
Storage Temperature range -45~+80℃
Temperature Characteristics ±10PPm ±20PPm
Load Capacitance 8 to 20 Pf or Serles
Aging ±3 PPm/year
Insulation Resistance 500MΩ(DC100V±15V)

Dimension

Optical Transceiver SMD Crystal Oscillator 25MHZ 3225 4 Pin 10ppm Frequency

Refluence examination

Frequency change:≤±5ppm

Optical Transceiver SMD Crystal Oscillator 25MHZ 3225 4 Pin 10ppm Frequency

Optical Transceiver SMD Crystal Oscillator 25MHZ 3225 4 Pin 10ppm Frequency

FAQ

Packing

3000pcs/tape.

Samples and technical support can be provided free of charge.
