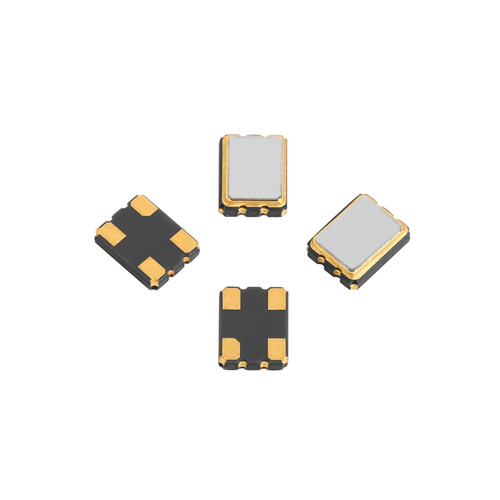

High Frequency Stability 8 MHz Oscillator , 3225 20PPM Passive TV Oscillator
High Frequency Stability 8 MHz Oscillator , 3225 20PPM Passive TV Oscillator
Specifications
Brand Name :
XTY
Model Number :
SMD 3.2×2.5
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description :
SMD 3225
Nominal Freq :
XTY-8.000MHZ
Frequency Stability vs. Temp（FL-T） :
20PPM
Storage Temprature Range (STR) :
-40℃ ~ +85℃
Price :
0.03~0.22
Packaging Details :
3000pcs/tape.
Delivery Time :
7days
Supply Ability :
1 week
Description

8MHz SMD Crystal Oscillator 3225 20PPM Top Sale Passive Crystal Oscillator

product application

1 , Intelligent robot

2 , Vehicle navigation

3 , VR

product features

High precision, high frequency stability,

It is very good to reduce EMI,

Ultra thin, thickness 0.7mm

Operating Temperature Range:-40℃~85℃

Crystal Frequency & Resistance will be tested under the following conditions,

Unless extra requirments:

standard temperature(25±2℃) after heat balance.

Storage Temperature Range:-40℃~+85℃

Mechanical property test:

The test can be measured after 1 hours of rest at the reference temperature

Dropping Test:

The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage,after allowing the crystal to fall freely.

From 75 cm of height 3 times on the firmed wood.

Vibration Test:

The Units are measured for its frequency and resistance in accordance with Table 1&without mechanical damage afer subjectiong to 2hrs of vibration with 0.75mm amplitude with 10~55Hz frequency sweep 20 times.

Sealing Tightness:

Find Lead Test:≤1×10-8atm·cc/S by Helium mass-mass-spectrometer detector,and vacuum and reach 1×10-3Pa；

Resistance to Soldering Heat:

The Units are measured for its frequency and resistance in accordance with Table 1 after dipping into molten solder with the temperature of 320℃±10℃；For 3~4 secs and at a depth up to a point 2.0mm from the base root.

Product specification

Type SMD3225
Frequency Range(MHZ) 8.000MHZ
Frequency Tolerance(at25℃) ±10PPm ,±5PPm at25℃+/-2℃
Frequency Stability vs. Temp(FL-T) ±10PPm,±20PPm ,±30PPm
Operating Temperature range -20~+70℃ -40~+85℃
Storage Temperature range -45~+80℃
Temperature Characteristics ±10PPm ±20PPm
Load Capacitance 8 to 20 Pf or Serles
Aging ±3 PPm/year
Insulation Resistance 500MΩ(DC100V±15V)

Dimension

High Frequency Stability 8 MHz Oscillator , 3225 20PPM Passive TV Oscillator

Refluence examination

Frequency change:≤±5ppm

High Frequency Stability 8 MHz Oscillator , 3225 20PPM Passive TV Oscillator

High Frequency Stability 8 MHz Oscillator , 3225 20PPM Passive TV OscillatorFAQ

Packing

3000pcs/tape.

Samples and technical support can be provided free of charge.
