Consumer Electronic Tuning Fork Resonator Epson Oscillator Reflow Available
Consumer Electronic Tuning Fork Resonator Epson Oscillator Reflow Available
Consumer Electronic Tuning Fork Resonator Epson Oscillator Reflow Available
Consumer Electronic Tuning Fork Resonator Epson Oscillator Reflow Available
Specifications
Brand Name :
XTY
Model Number :
SMD 3.8*8.0mm
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Description :
MC-306
ESR :
50Kohm Max
Frequency Stability :
20PPM
Operating Temperature Range :
-20℃ ~ +70℃
Shunt Capacitance (C0) :
＜1.0pF
Aging Rate a Year :
≤±3ppm/Year
Price :
0.03~0.22
Packaging Details :
3Kor 9K/tape.
Delivery Time :
7days
Payment Terms :
T/T
Supply Ability :
1 week
Description

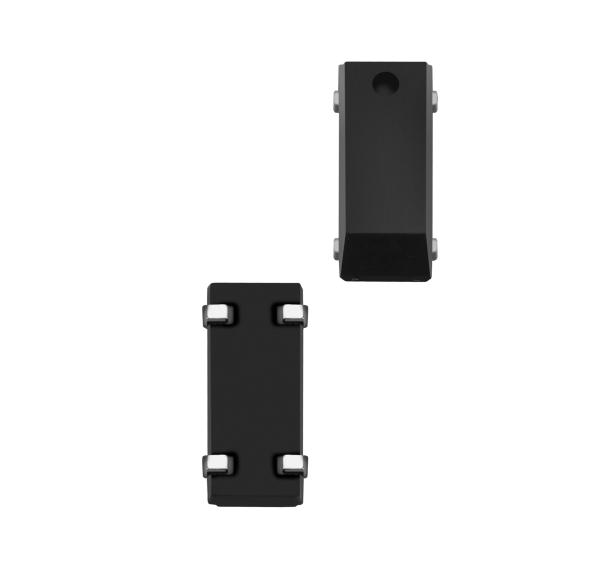

Epson SMD Tuning Fork Crystal MC-306 32.768khz 3.8*8.0 12.5pf 20ppm

product application

Microprocessor Systems

Consumer Electronics

product features

Wide Frequency range

Small size

Tape & Reel

Reflow available

Standard Environmental Condition:

Environmental Temperature:15℃~35℃

Humidity:45%~85%

Atmospheric pressure:86~106KPa

Operating Temperature Range:-20℃~70℃

Crystal Frequency & Resistance will be tested under the following conditions,

Unless extra requirments:

standard temperature(25±2℃) after heat balance.

Storage Temperature Range:-40℃~+85℃

Mechanical test:

The quartz crystal unit shall be subjected to normal atmospheric conditions for 1hr before being tested.

Dropping Test:

The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage,after allowing the crystal to fall freely.

From 75 cm of height 3 times on the firmed wood.

Vibration Test:

The Units are measured for its frequency and resistance in accordance with Table 1&without mechanical damage afer subjectiong to 2hrs of vibration with 0.75mm amplitude with 10~55Hz frequency sweep 20 times.

Sealing Tightness

Find Lead Test:≤1×10-8atm·cc/S by Helium mass-mass-spectrometer detector,and vacuum and reach 1×10-3Pa；

Resistance to Soldering Heat:

The Units are measured for its frequency and resistance in accordance with Table 1 after dipping into molten solder with the temperature of 320℃±10℃；For 3~4 secs and at a depth up to a point 2.0mm from the base root.

Product specification

Type MC-306
Frequency Range(KHZ) 32.768KHZ
Frequency Tolerance(at25℃) ±20PPm at25℃+/-2℃
Frequency Stability vs. Temp(FL-T) -0.04×10-6/℃2 Max
Operating Temperature range -20~+70℃ -40~+85℃
Storage Temperature range -45~+80℃
Temperature Characteristics ±20PPm
Load Capacitance 8 to 20 Pf or Serles
Aging ±3 PPm/year
Insulation Resistance 500MΩ(DC100V±15V)

Dimension

Consumer Electronic Tuning Fork Resonator Epson Oscillator Reflow Available

Refluence examination

Frequency change:≤±5ppm

Consumer Electronic Tuning Fork Resonator Epson Oscillator Reflow Available

Temperature Shock:

The Units are measured for its frequency and resistance in accordance

with Table 1 .

Consumer Electronic Tuning Fork Resonator Epson Oscillator Reflow Available

FAQ

Packing

3000pcs/tape.

Samples and technical support can be provided free of charge.
