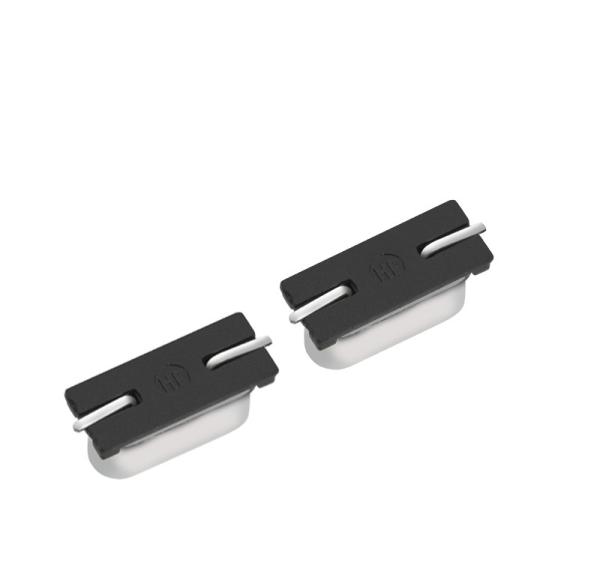

Small High Frequency Crystal Oscillator HC-49SMD -20~+70 20PPM 36.000MHZ
Small High Frequency Crystal Oscillator HC-49SMD -20~+70 20PPM 36.000MHZ
Specifications
Brand Name :
XTY
Model Number :
49SMD 36.000MHZ
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Item :
HC-49SMD
Mounting Style :
SMD/SMT
Supply Voltage :
Standard
Package :
Tape and Reel
Level of drive :
10uW
Equivalent Series Resistance :
≤30Ω
Price :
0.03~0.22
Packaging Details :
3000pcs/tape.
Delivery Time :
7days
Payment Terms :
T/T
Supply Ability :
1 week
Description

36.000MHZ Hot Sale High Frequency Crystal Oscillator HC-49SMD -20~+70 20PPM

Product application

For The set-top box , DVD,etc.

Product advantage

An integrated structure of crystal resonator and thermistor.

High Quality Produce with SGS ,ROHS(JDS OR OEM ) ;

High production capacity;

Professional Electronics Components supplier and over 17 experience TECH

Advanced production line and test equipment from USA,JP,etc.

The company since its inception, adhere to the "strategy first, business success, management oriented" business promotion concept, step by step to become the most widely in Shenzhen and similar companies, the industry influential enterprises.

Product features

high frequency pullabity andlow equivaient series resistance
lower cost and highly mass production capacity
the best choice of PC STB LCDM and cable modem
RoHS compliant / Pb Free

The crystal oscillator uses a crystal that converts electrical energy and mechanical energy to each other in a resonant state to provide stable, accurate single frequency oscillations. Under normal working conditions, the absolute precision of the normal crystal frequency can reach fifty per millionth. Higher precision is higher.

Product specification

Type HC-49SMD
Frequency Range(MHZ) 36.000MHZ
Frequency Tolerance(at25℃) ±10PPm ,±5PPm at25℃+/-2℃
Frequency Stability vs. Temp(FL-T) ±10PPm,±20PPm ,±30PPm
Operating Temperature range -20~+70℃ -40~+85℃
Storage Temperature range -45~+80℃
Temperature Characteristics ±10PPm ±20PPm
Load Capacitance 8 to 20 Pf or Serles
Aging ±3 PPm/year
Insulation Resistance 500MΩ(DC100V±15V)

Dimension

Small High Frequency Crystal Oscillator HC-49SMD -20~+70 20PPM 36.000MHZ

Refluence examination

Frequency change:≤±5ppm

Small High Frequency Crystal Oscillator HC-49SMD -20~+70 20PPM 36.000MHZ

FAQ

Packing

200pcs/bag or 2000pcs/tape.

Samples and technical support can be provided free of charge.
