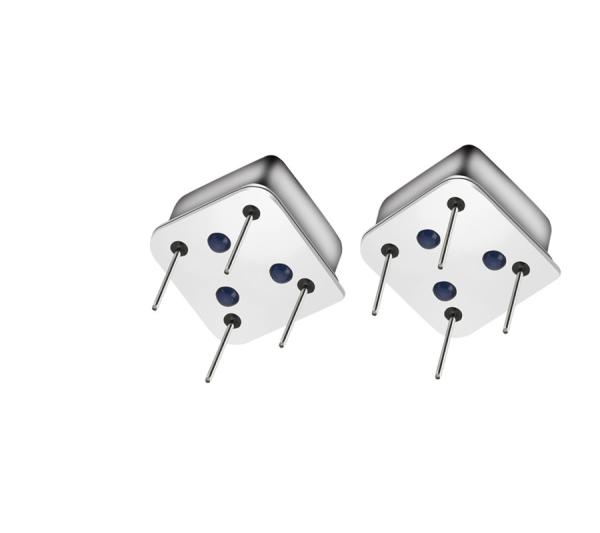

DIP Double Ocxo Oven Controlled Crystal Oscillator HCMOS Level 25.4 X 25.4 Mm
DIP Double Ocxo Oven Controlled Crystal Oscillator HCMOS Level 25.4 X 25.4 Mm
DIP Double Ocxo Oven Controlled Crystal Oscillator HCMOS Level 25.4 X 25.4 Mm
DIP Double Ocxo Oven Controlled Crystal Oscillator HCMOS Level 25.4 X 25.4 Mm
Specifications
Brand Name :
XTY
Model Number :
DIP 8
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Package Size :
25.4 x25.4 mm
Nominal Freq :
DIP
Initial Accuracy :
0.1PPM
Level :
HCMOS
Price :
0.03~0.22
Packaging Details :
3000pcs/tape.
Delivery Time :
7days
Payment Terms :
T/T
Supply Ability :
1 week
Description

DIP Double Oven Controlled Crystal Oscillator 25.4 x 25.4 mm

product features

Design for applications of exceptional frequency stability and timing
Holdover of < 10 uS for 24 hours
Aging Performance
±0.1 ppb/Day
±20 ppb/Year
±0.1 ppm/10 Years

product application

Satellite navigation system / device
Basic communication equipment
Industry / Automation

product advantage

1. Our products are all original and new from manufacturer. It must be work if the model number is correct.

2. We have advanced testing equipments
3. Get the international standard management sysem ISO9001,RoHS
4. All products before sending client,we make 72 hours aging test
5. We have 180days warranty
6. During the guarantee period, if the items you purchased from our store are out of perfected quality, pls notify us within 3 days after delivery, we will return the new products when we got your message.

Product specification

　 Item Test Condition Specification
1. Rating
1.1 Output frequency Nominal frequency at 25℃ 20.0000MHz
1.2 Supply voltage (Vdd) Supply voltage range. 1.70~3.50V
(Typical 1.8V)
1.3 Output voltage level(Vp-p) 　 0.8 V min.
Clipped sine wave
1.4 Supply current (lop) Consumption current. 2.0 mA max.
1.5 Start up time 90% Vp-p 2.0 msec max.
1.5 Output load Nominal Load (10kΩ//10pf ±5% ± 0.1 ppm max.
1.6 Operating temperature range 　 -40℃~85℃
1.7 Storage temperature range 　 -40℃~85℃
2. Electrical characteristics
2.1 Frequency Tolerance Frequency at 25℃ ±2℃,
After 2 times reflow		 ± 2.0 ppm max.
2.2 Frequency stability
(Based on frequency @ 25 )		 -30℃~+85℃ ± 0.5 ppm max.
-40℃~-30℃ ± 2.0 ppm max.
2.3 Supply voltage stability Supply voltage varied ±5% at℃ deg C. ± 0.1 ppm max.
2.4 Aging Frequency drift over 1 year. ± 1.0 ppm max.
2 years. ± 1.5 ppm max.
5 years. ± 2.5 ppm max.
10 years. ± 5.0 ppm max.
2.5 Frequency Slope -30℃~+85℃ ± 0.1 ppm/℃ max.
-40℃~-30℃ ± 0.35 ppm/℃ max. 　
2.5 Static temperature hysteresis Frequency change after reciprocal
temperature ramped over the operating range.
Frequency measured before and after at 25		 ± 0.6 ppm max.
2.6 Harmonics 2'nd, -20.0 dBc max.
3'rd -10.0 dBc max.
34th, 36th, >69th -60.0 dBc max.
2.7 Phase noise 1Hz offset -50dBc/Hz max.
10Hz offset -80dBc/Hz max.
100Hz offset -105dBc/Hz max.
1KHz offset -130dBc/Hz max.
10KHz offset -145dBc/Hz max.
100KHz offset -150dBc/Hz max.


Output wave form

DIP Double Ocxo Oven Controlled Crystal Oscillator HCMOS Level 25.4 X 25.4 Mm
