Telecom Systems SMD TCXO Crystal Oscillator 2.5 X 2.0mm Size 1.8V / 2.8V / 3.3V
Telecom Systems SMD TCXO Crystal Oscillator 2.5 X 2.0mm Size 1.8V / 2.8V / 3.3V
Telecom Systems SMD TCXO Crystal Oscillator 2.5 X 2.0mm Size 1.8V / 2.8V / 3.3V
Telecom Systems SMD TCXO Crystal Oscillator 2.5 X 2.0mm Size 1.8V / 2.8V / 3.3V
Specifications
Brand Name :
XTY
Model Number :
SMD 2.5×2.0
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description :
SMD2520
Frequency Stability over temperature :
2.5PPM
Supply Voltage :
1.8V / 2.8V / 3.3V
Operating Temperature :
-40~+85'C
Price :
0.03~0.22
Packaging Details :
3000pcs/tape.
Delivery Time :
7days
Supply Ability :
1 week
Description

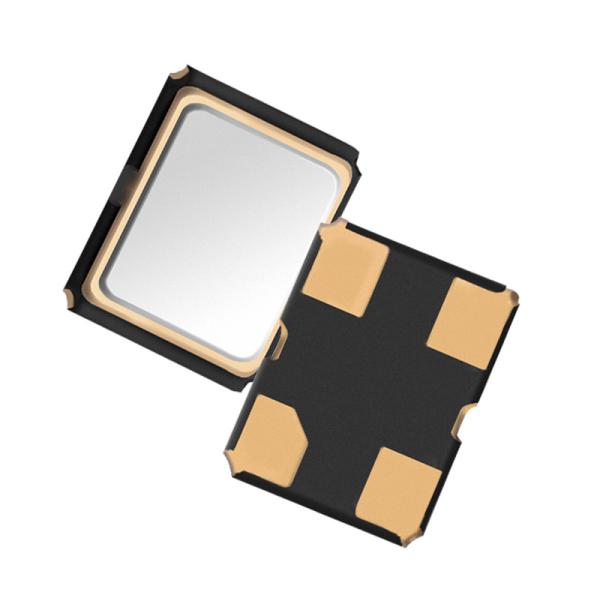

2.5 x 2.0 mm SMD TCXO Temperature Compensated Crystal Oscillator

product application

 Telecom Systems

Radar Systems

Medical (MRT)

product features

Typical 2.5 x 2.0 x 0.85 mm ceramic SMD package

LVCMOS Output Logic

Femto second phase jitter and -145dBc/Hz at 10kHz offset

product advantage

1.Our products are all original and new from manufacturer. It must be work if the model number is correct.

2.We have advanced testing equipments
3.Get the international standard management sysem ISO9001,RoHS
4.All products before sending client,we make 72 hours aging test
5.We have 180days warranty
6.During the guarantee period, if the items you purchased from our store are out of perfected quality, pls notify us within 3 days after delivery, we will return the new products when we got your message.

Product specification

　 Item Test Condition Specification
1. Rating
1.1 Output frequency Nominal frequency at 25℃ 9.5~60MHz
1.2 Supply voltage (Vdd) Supply voltage range. 1.70~3.50V
(Typical 1.8V)
1.3 Output voltage level(Vp-p) 　 0.8 V min.
Clipped sine wave
1.4 Supply current (lop) Consumption current. 2.0 mA max.
1.5 Start up time 90% Vp-p 2.0 msec max.
1.5 Output load Nominal Load (10kΩ//10pf ±5% ± 0.1 ppm max.
1.6 Operating temperature range 　 -40℃~85℃
1.7 Storage temperature range 　 -40℃~85℃
2. Electrical characteristics
2.1 Frequency Tolerance Frequency at 25℃ ±2℃,
After 2 times reflow		 ± 2.0 ppm max.
2.2 Frequency stability
(Based on frequency @ 25 )		 -30℃~+85℃ ± 0.5 ppm max.
-40℃~-30℃ ± 2.0 ppm max.
2.3 Supply voltage stability Supply voltage varied ±5% at℃ deg C. ± 0.1 ppm max.
2.4 Aging Frequency drift over 1 year. ± 1.0 ppm max.
2 years. ± 1.5 ppm max.
5 years. ± 2.5 ppm max.
10 years. ± 5.0 ppm max.
2.5 Frequency Slope -30℃~+85℃ ± 0.1 ppm/℃ max.
-40℃~-30℃ ± 0.35 ppm/℃ max. 　
2.5 Static temperature hysteresis Frequency change after reciprocal
temperature ramped over the operating range.
Frequency measured before and after at 25		 ± 0.6 ppm max.
2.6 Harmonics 2'nd, -20.0 dBc max.
3'rd -10.0 dBc max.
34th, 36th, >69th -60.0 dBc max.
2.7 Phase noise 1Hz offset -50dBc/Hz max.
10Hz offset -80dBc/Hz max.
100Hz offset -105dBc/Hz max.
1KHz offset -130dBc/Hz max.
10KHz offset -145dBc/Hz max.
100KHz offset -150dBc/Hz max.


Output wave form

Telecom Systems SMD TCXO Crystal Oscillator 2.5 X 2.0mm Size 1.8V / 2.8V / 3.3V

Measurement circuit

Telecom Systems SMD TCXO Crystal Oscillator 2.5 X 2.0mm Size 1.8V / 2.8V / 3.3V
