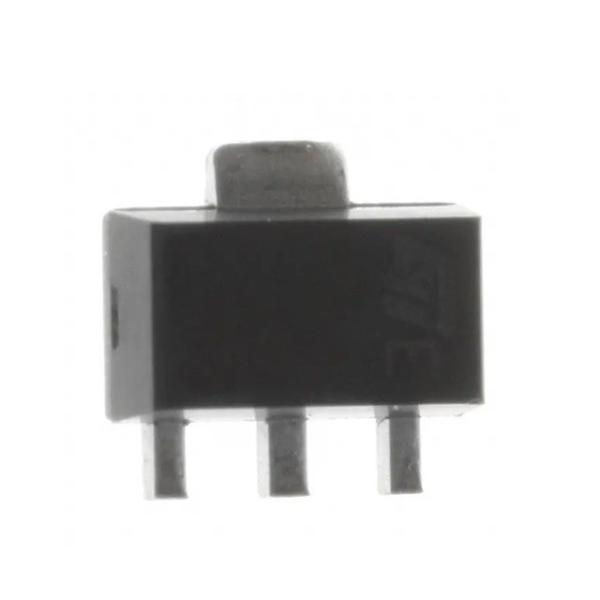

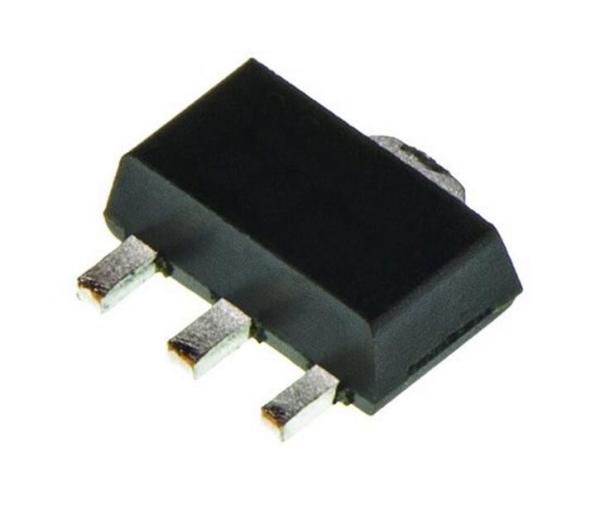

LD1117S33CTR LDO Regulator Pos 3.3V 1.3A 4 Pin SOT-223 T/R Surface Mount 12W
LD1117S33CTR LDO Regulator Pos 3.3V 1.3A 4 Pin SOT-223 T/R Surface Mount 12W
LD1117S33CTR LDO Regulator Pos 3.3V 1.3A 4 Pin SOT-223 T/R Surface Mount 12W
LD1117S33CTR LDO Regulator Pos 3.3V 1.3A 4 Pin SOT-223 T/R Surface Mount 12W
Specifications
Brand Name :
STMicroelectronics
Model Number :
LD1117S33CTR
Certification :
Original Part
Place of Origin :
Shenzhen, China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal, Wechat Pay
Supply Ability :
1 Million pieces per Month
Delivery Time :
Immediate
Packaging Details :
SOT-223
Packaging :
SOT-223
Product Type :
LDO Regulator Pos 3.3V 1.3A 4-Pin(3+Tab) SOT-223 T/R
Package type :
Surface Mount
Application :
Telecommunication Equipment
Keypad button material :
PC,Sandwich
Color :
Pantone,any color
Description

LD1117S33CTR LDO Regulator Pos 3.3V 1.3A 4-Pin(3+Tab) SOT-223 T/R


General Description :

The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version

(VREF= 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V.

The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT-223 and DPAK surface mount packages optimize the

thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this case,

unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10 μF minimum capacitor is needed for stability.

On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 1 % at 25 °C. The adjustable LD1117 is pin to

pin compatible with the other standard. Adjustable voltage regulators maintaining the better performances in terms of drop and tolerance.


Distinctive Characteristics :

Part No: LD1117S33CTR

Description: Voltage Regulator, +3.3V, Bi-Polar, 3 Pin, Plastic, SOT-223

Power Dissipation: 12(W)
Mounting: Surface Mount
Operating Temp Range: -40C to 125C
Regulator Output Type: Fixed
Output Voltage: 3.3(V)
Voltage Regulator Type: Linear
Package Type: SOT-223
Packaging: Tape and Reel
Pin Count: 3 +Tab
Polarity Type: Positive
Output Voltage Accuracy: 1%
Operating Temperature Classification: Automotive
Input Voltage (Max): 15V
Quiescent Current (Max): 10 mA
Line Regulation: 6mV
Load Regulation: 10mV
Number of Outputs: 1
Topology: LDO
Rad Hardened: No
Dropout Voltage@Current (Typ): 1@100mA/1.05@500mA
Output Current: 1300(mA)
Dropout Voltage@Current (Max): 1.1@100mA/1.15@500mA
Input Voltage: 15(V)
Output Type: Fixed
Quiescent Current: 10000(uA)
Type: LDO
Polarity: Positive.



for product datasheet, CONTACT US directly
