Specifications
Brand Name :
Cypress
Model Number :
CY7C136-55JI
Certification :
Original Part
Place of Origin :
Shenzhen, China
MOQ :
1PCS
Price :
to be Negotiated
Payment Terms :
T/T, Western Union, Paypal, Wechat Pay
Supply Ability :
1 Million pieces per Month
Delivery Time :
Immediate
Packaging Details :
52PLCC
Packaging :
52PLCC
Product Description :
IC SRAM 16K PARALLEL 52PLCC
Product Type :
Static RAM, 2Kx8, 52 Pin, Plastic, LDCC, SRAMs
Operating Temp Range :
-40C to 85C
Description

Electronic Components Rectifier Diode Schottky CY7C136-55JI Integrated Circuits





Functional Description :

The CY7C132/CY7C136/CY7C142 and CY7C146 are high-speed CMOS 2K by 8 dual-port static RAMs. Two ports are provided to permit independent access to any location in memory. The CY7C132/ CY7C136 can be utilized as either a standalone 8-bit dual-port static RAM or as a MASTER dual-port RAM in conjunction with the CY7C142/CY7C146SLAVE dual-port device in systems requiring 16-bit or greater word widths. It is the solution to applications requiring shared or buffered data such as cache memory for DSP, bit-slice, or multiprocessor designs.
Each port has independent control pins; chip enable (CE), write enable (R/W), and output enable (OE). BUSY flags are provided on each port. In addition, an interrupt flag (INT) is provided on each port of the 52-pin PLCC version. BUSY signals that the port is trying to access the same location currently being accessed by the other port. On the PLCC version, INT is an interrupt flag indicating that data has been placed in a unique location (7FF for the left port and 7FE for the right port).
An automatic power-down feature is controlled independently on each port by the chip enable (CE) pins.
The CY7C132/CY7C142 are available in 48-pin DIP. The CY7C136/CY7C146 are available in 52-pin PLCC and PQFP.




Features :

• True Dual-Ported memory cells which allow simultaneous reads of the same memory location
• 2K x 8 organization
• 0.65-micron CMOS for optimum speed/power
• High-speed access: 15 ns
• Low operating power: ICC = 90 mA (max.)
• Fully asynchronous operation
• Automatic power-down
• Master CY7C132/CY7C136 easily expands data bus width to 16 or more bits using slave CY7C142/CY7C146
• BUSY output flag on CY7C132/CY7C136; BUSY input on CY7C142/CY7C146
• INT flag for port-to-port communication (52-pin PLCC/PQFP versions)
• Available in 48-pin DIP (CY7C132/142), 52-pin PLCC and 52-pin TQFP (CY7C136/146)
• Pin-compatible and functionally equivalent to IDT7132/IDT7142

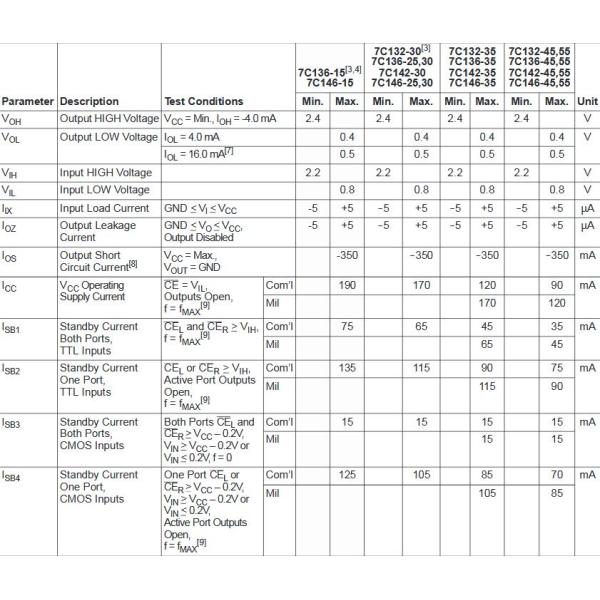

Electrical Characteristics :

Electronic Components Rectifier Diode Schottky CY7C136-55JI Integrated Circuits






for product datasheet, CONTACT US directly.
