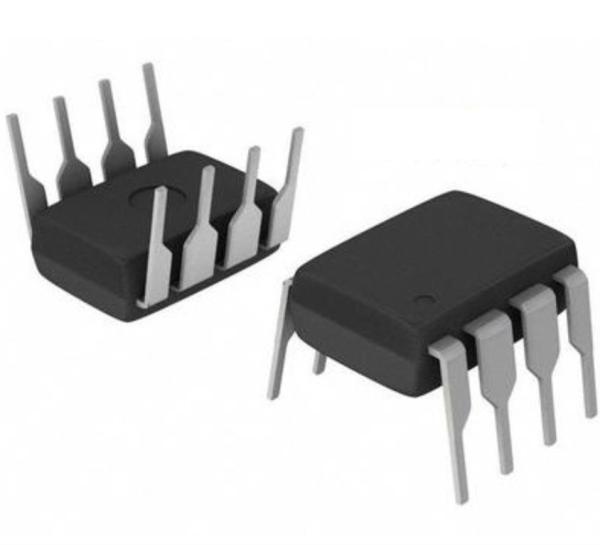

TC4427CPA 1.5A 2 OUT 8 Pin PDIP Tube MOSFET Drivers
TC4427CPA 1.5A 2 OUT 8 Pin PDIP Tube MOSFET Drivers
Specifications
Brand Name :
Micro chip
Model Number :
TC4427CPA
Certification :
Original Part
Place of Origin :
Shenzhen, China
MOQ :
1PCS
Price :
to be Negotiated
Payment Terms :
T/T, Western Union, Paypal, Wechat Pay
Supply Ability :
1 Million pieces per Month
Delivery Time :
Immediate
Packaging Details :
8DIP
Packaging :
8DIP
Product Description :
1.5A Dual High-Speed Power MOSFET Drivers
Product Type :
IC GATE DRVR LOW-SIDE 8DIP
Operating Temp Range :
0C to 70C
Description

TC4427CPA Driver 1.5A 2-OUT Low Side Non-Inv 8-Pin PDIP Tube

Descriptions :

The TC4427 is a improved version of the earlier TC427 family of MOSFET drivers. The TC4427 devices have matched rise and fall times when charging and discharging the gate of a MOSFET. These devices are highly latch-up resistant under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin. They can accept, without damage or logic upset, up to 500 mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against Electrostatic Discharge (ESD) up to 4 kV. The TC4427 MOSFET drivers caneasily charge/discharge 1000 pF gate capacitances in 1000 pF gate capacitances in under 30 ns. These devices provide low enough impedances in both the on and off states to ensure the MOSFET’s intended state will not be affected, even by large transients


Features :

  • High Peak Output Current – 1.5A.
  • Wide Input Supply Voltage Operating Range: - 4.5V to 18V.
  • High Capacitive Load Drive Capability – 1000 pF in 25 ns (typ.).
  • Short Delay Times – 40 ns (typ.).
  • Matched Rise and Fall Times.
  • Low Supply Current: - With Logic ‘1’ Input – 4 mA - With Logic ‘0’ Input – 400 μA.
  • Low Output Impedance – 7Ω
  • Latch-Up Protected: Will Withstand 0.5A Reverse Current.
  • Input Will Withstand Negative Inputs Up to 5V.
  • ESD Protected – 4 kV.
  • Pin-compatible with the TC427.
  • Space-saving 8-Pin MSOP and 8-Pin 6x5 DFN Packages.



Technical Specifications :

for product datasheet, CONTACT US directly.
