330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800
330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800
330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800
330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800
Specifications
Brand Name :
original
Model Number :
T490B337M006ATE800
Certification :
contact us
Place of Origin :
China
MOQ :
1000
Price :
contact us
Payment Terms :
T/T,PayPal
Supply Ability :
100000+pcs+35 working days
Delivery Time :
25-35 working days
Packaging Details :
reel
Capacitance Value :
330uF
Tolerance :
20%
IR (mA) :
326
IL (uA) :
19.8
Number of Terminals :
2
Size (mm) :
3.5 X 2.8 X 1.9
Product Length (mm) :
3.5
Product Depth (mm) :
2.8
Product Height (mm) :
1.9
Description

T490B337M006ATE800

Capacitor Tantalum Solid

The KEMET T490 Series, designed for customer product applications (low temperature demanding applications), meets RoHS compliance with leads constructed of 100% matte tin and green molding compound. This series is classified as MSL (Moisture Sensitivity Level) 1 under J STD 020: unlimited floor life time at ≤30°C / 85% RH. Tin/lead (Sn/Pb) terminations are available upon request for any part number. Gold-plated terminations are also available for use with conductive epoxy attachment processes. Standard packaging of these devices is tape and reel in accordance with EIA 481. This system provides perfect compatibility with all tape-fed placement units.

Key Features:

  • Taped and reeled per EIA 481
  • Symmetrical compliant terminations
  • Optional gold-plated terminations
  • Laser-marked case
  • Suitable for 3 x 260°C reflow passes
  • Halogen-free epoxy
  • Capacitance values of 47 μF to 470 μF
  • Tolerance of ±20%
  • Voltage rating of 4 – 10 VDC
  • 0.2% per 1,000 hours at 85ºC 0.5 VR Reliability
  • Small and low profile case sizes
  • RoHS Compliant and lead-free terminations
  • MSL Reflow Temp ≤ 260ºC = 1
  • Operating temperature range of -55°C to +40°C

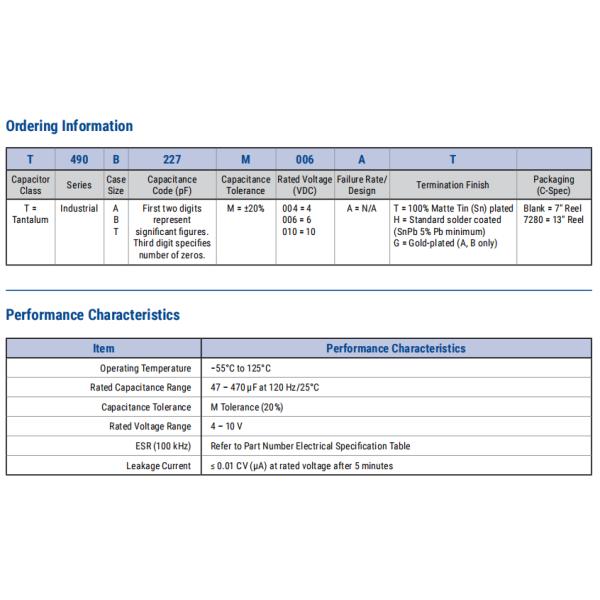

Product Technical Specifications:

EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8532.21.00.50
Mounting Surface Mount
Type Solid
Capacitance Value 330uF
Tolerance 20%
Voltage 6.3VDC
ESR (Ohm) 0.8
Equivalent Series Resistance Type Standard
IR (mA) 326
IL (uA) 19.8
Polarity Polar
Special Features Lead Free Terminations|RoHS Compliant|Laser Marked Case
Fail Safe with Built-in Fuse No
High Shock and Vibrating No
Case Code B
Case Style Molded
Construction Flat
Termination Style Inward L
Number of Terminals 2
Size (mm) 3.5 X 2.8 X 1.9
Package/Case 3528-21
Temperature Range @ Derated Voltage (°C) 40 to 125
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Product Length (mm) 3.5
Product Depth (mm) 2.8
Product Height (mm) 1.9
Length Tolerance (mm) ±0.2
Depth Tolerance (mm) ±0.2
Height Tolerance (mm) ±0.2

Overview:
The KEMET T490, designed for customer product applications (low temperature demanding applications),
meets RoHS compliance with leads constructed of 100% matte tin and a green molding compound. The T490 is
classified as MSL (Moisture Sensitivity Level) 1 under J STD 020: unlimited floor lifetime at ≤ 30°C/85% RH. Tin/lead (Sn/Pb) terminations are available upon request for any part number.
Gold-plated terminations are also available for use with conductive epoxy attachment processes. Standard packaging of these devices is Tape & Reel in accordance with EIA 481. This system provides perfect compatibility with all tape-fed placement units.

330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800

330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800

330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800

330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800
