SMD 4V 330uF Tantalum Electrolytic Capacitor T490B337M004ATE800
SMD 4V 330uF Tantalum Electrolytic Capacitor T490B337M004ATE800

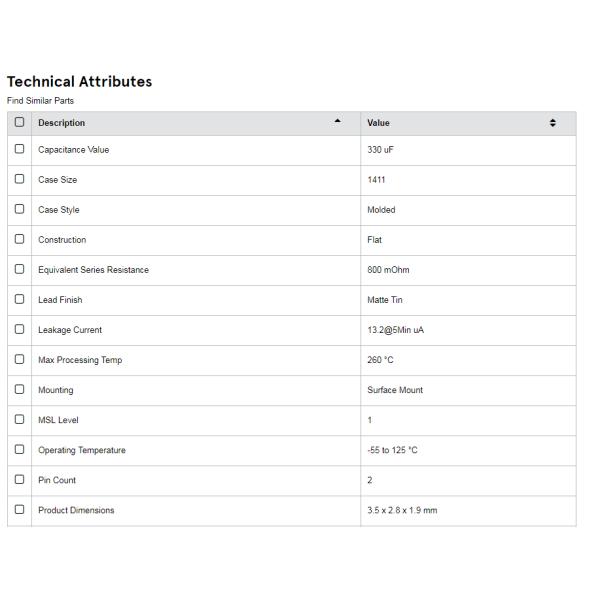

Specifications
Brand Name :
original
Model Number :
T490B337M004ATE800
Certification :
contact us
Place of Origin :
China
MOQ :
1000PCS
Price :
contact us
Payment Terms :
T/T,PayPal
Supply Ability :
100000+PCS+35 working days
Delivery Time :
20-35 days
Packaging Details :
reel
Tolerance :
20 %
Ripple Current :
326 mA
Operating Temperature :
-55 to 125 °C
Max Processing Temp :
260 °C
Leakage Current :
13.2@5Min uA
Voltage(DC) :
4 V
Mounting :
Surface Mount
Capacitance Value :
330 uF
Description

Cap Tant Solid 330uF 4V B CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528-21,B 800 mOhm 125°C T/R

The T490 Series, designed for commercial grade applications with low ambient temperatures. This series is classified as MSL (Moisture Sensitivity Level) 1 under J STD 020: unlimited floor life time at <= 30°C/85% RH.

  • Capacitance values ranges 47 µF to 470 µF
  • Voltage rating of 4 - 10 VDC
  • Operating temperature range of -55°C to +125°C
  • Suitable for 3 x 260°C reflow passes
  • 0.2% per 1,000 hours at 85°C 0.5 VR Reliability
  • Tin/lead (Sn/Pb) and Gold-plated terminations are available

Dimensions :

Footprint 3528

L 3.5mm +/-0.2mm

W 2.8mm +/-0.2mm

H 1.9mm +/-0.2mm

T 0.13mm REF

S 0.8mm +0.2/-0.3mm

F 2.2mm +/-0.1mm

A 1.9mm MIN

B 0.4mm +/-0.15mm

E 2.2mm REF

G 1.8mm REF

P 0.5mm REF

R 1mm REF

X 0.1mm +/-0.1mm

Product information:

Capacitance: 330µF

Rated voltage: 4V

Tantalum capacitor package: 1411 [3528 Metric]

Product Range: T490 Series

Capacitance tolerance: ± 20%

Minimum operating temperature: -55°C

Maximum operating temperature: 125°C

Equivalent Series Resistance (ESR): 0.8ohm

Manufacturer Size Code: B

SMD 4V 330uF Tantalum Electrolytic Capacitor T490B337M004ATE800
