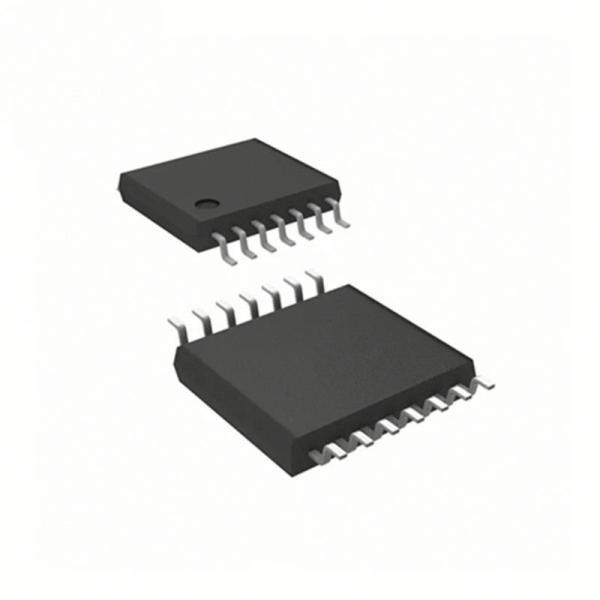

Electronic Components Inverter Schmitt Trigger 6-Element CMOS Automotive TSSOP W T/R MC74HC14ADTR2G Integrated Circuits
Electronic Components Inverter Schmitt Trigger 6-Element CMOS Automotive TSSOP W T/R MC74HC14ADTR2G Integrated Circuits
Specifications
Brand Name :
ON Semiconductor
Model Number :
MC74HC14ADTR2G
Certification :
Original Part
Place of Origin :
Shenzhen, China
MOQ :
1PCS
Price :
to be Negotiated
Payment Terms :
T/T, Western Union, Paypal, Wechat Pay
Supply Ability :
1 Million pieces per Month
Delivery Time :
Immediate
Packaging Details :
14TSSOP
Packaging :
14TSSOP
Product Description :
IC INVERTER SCHMITT 6CH 14TSSOP
Product Type :
Inverters 2-6V Hex CMOS Schmitt Trigger
Operating Temp Range :
-55C to 125C
Description

Electronic Components Inverter Schmitt Trigger 6-Element CMOS Automotive 14-Pin TSSOP W T/R MC74HC14ADTR2G Integrated Circuits

Description :

The MC74HC14A is identical in pinout to the LS14, LS04 and the HC04. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

The HC14A is useful to “square up” slow input rise and fall times. Due to hysteresis voltage of the Schmitt trigger, the HC14A finds applications in noisy environments.





Features :

• Output Drive Capability: 10 LSTTL Loads

• Outputs Directly Interface to CMOS, NMOS and TTL

• Operating Voltage Range: 2.0 to 6.0 V

• Low Input Current: 1.0 A

• High Noise Immunity Characteristic of CMOS Devices

• In Compliance With the JEDEC Standard No. 7.0 A Requirements

• Chip Complexity: 60 FETs or 15 Equivalent Gates

• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant





Technical Specifications :

Mounting Surface Mount
Lead Shape Gull-wing
Package Height 1.05(Max)
Package Width 4.5(Max)
Package Length 5.1(Max)
PCB changed 14
Logic Family HC
Logic Function Inverter Schmitt Trigger
Number of Elements per Chip 6
Maximum Propagation Delay Time @ Maximum CL (ns) 75@2V|30@3V|15@4.5V|13@6V
Absolute Propagation Delay Time (ns) 110
Process Technology CMOS
Output Type Schmitt Trigger
Maximum Low Level Output Current (mA) 5.2
Maximum High Level Output Current (mA) -5.2
Minimum Operating Supply Voltage (V) 2
Typical Operating Supply Voltage (V) 3.3|2.5|5
Maximum Operating Supply Voltage (V) 6
Maximum Quiescent Current (uA) 1
Propagation Delay Test Condition (pF) 50
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 125
Supplier Temperature Grade Automotive
Packaging Tape and Reel
Supplier Package TSSOP W
Pin Count 14
Standard Package Name SOP


for product datasheet, CONTACT US directly.
