High Frequency Inverters IC Chips IGBT Transistors 650V 80A 375W STGWA60H65DFB
High Frequency Inverters IC Chips IGBT Transistors 650V 80A 375W STGWA60H65DFB
Specifications
Brand Name :
Original Manufacturer
Model Number :
STGWA60H65DFB
Certification :
Electronic Components STGWA60H65DFB
Place of Origin :
Original
MOQ :
50
Price :
sales07@wtxcapacitors.com
Payment Terms :
pls contact me on whatsapp: +86 13534216947
Supply Ability :
9999999
Delivery Time :
3-5DAYS
Packaging Details :
Standard package
item :
STGWA60H65DFB in stock
package :

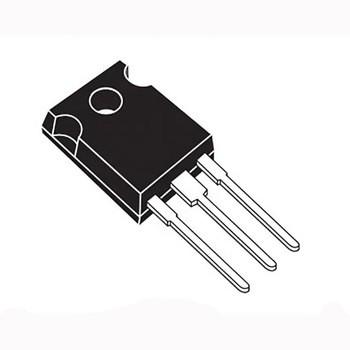

TO-247 Long Leads
Applications :
High frequency inverters, Photovoltaic inverters
more details :
pls contactc me
email :
sales07@wtxcapacitors.com
tel/whatsapp :
+86 13534216947
Description

New Original IC chips IGBT Transistors 650V 80A 375W STGWA60H65DFB in stock

Product Description

Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories Discrete Semiconductor Products
Transistors - IGBTs - Single
Manufacturer STMicroelectronics
Series -
Packaging Tube
Part Status Active
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 650V
Current - Collector (Ic) (Max) 80A
Current - Collector Pulsed (Icm) 240A
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 60A
Power - Max 375W
Switching Energy 1.59mJ (on), 900µJ (off)
Input Type Standard
Gate Charge 306nC
Td (on/off) @ 25°C 66ns/210ns
Test Condition 400V, 60A, 10Ohm, 15V
Reverse Recovery Time (trr) 60ns
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247 Long Leads
Base Part Number STGWA60

Features • Maximum junction temperature: TJ = 175 °C • High speed switching series • Minimized tail current • Low saturation voltage: VCE(sat) = 1.6 V (typ.) @ IC = 60 A • Tight parameter distribution • Safe paralleling • Positive VCE(sat) temperature coefficient • Low thermal resistance • Very fast soft recovery antiparallel diode

Applications • Photovoltaic inverters • High-frequency converters

Description These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure. These devices are part of the new HB series of IGBTs, which represent an optimum compromise between conduction and switching loss to maximize the efficiency of any frequency converter. Furthermore, the slightly positive VCE(sat) temperature coefficient and very tight parameter distribution result in safer paralleling operation.
