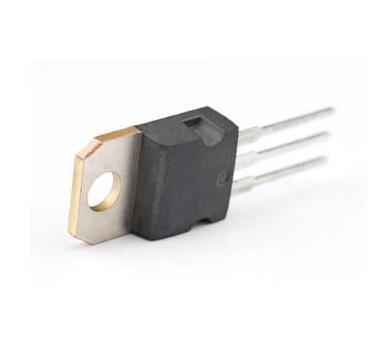

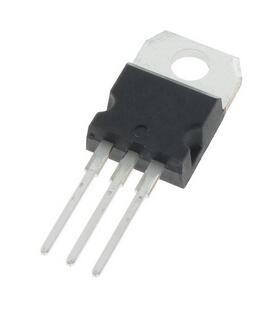

TRIAC 600V 126A Electronic Integrated Circuits 3 Pin TO-220AB Insulated Tube BTA12-600BRG
TRIAC 600V 126A Electronic Integrated Circuits 3 Pin TO-220AB Insulated Tube BTA12-600BRG
TRIAC 600V 126A Electronic Integrated Circuits 3 Pin TO-220AB Insulated Tube BTA12-600BRG
TRIAC 600V 126A Electronic Integrated Circuits 3 Pin TO-220AB Insulated Tube BTA12-600BRG
Specifications
Brand Name :
STMicroelectronics
Model Number :
BTA12-600BRG
Certification :
Original Part
Place of Origin :
Shenzhen, China
MOQ :
1PCS
Price :
to be Negotiated
Payment Terms :
T/T, Western Union, Paypal, Wechat Pay
Supply Ability :
1 Million pieces per Month
Delivery Time :
Immediate
Packaging Details :
TO-220AB
Packaging :
TO-220AB
Product Description :
TRIAC 600V 126A 3-Pin(3+Tab) TO-220AB Insulated Tube
Product Type :
Small Signal Bipolar Transistors
Package type :
Surface Mount
Condition :
Brand New and Original
Shipping by :
DHL\UPS\Fedex\EMS\HK Post
Description

BTA12-600BRG TRIAC 600V 126A 3-Pin(3+Tab) TO-220AB Insulated Tube


Applications :

ON/OFF or phase angle function in applications such as static relays, light dimmers and appliance motors speed controllers.

The snubberless versions (BTA/BTB...W and T12 series) are especially recommended for use on inductive loads,

because of their high commutation performances. The BTA series provides an insulated tab (rated at 2500 V RMS)

Description :

Available either in through-hole or surface-mount packages, the BTA12, BTB12 and T12xx triac series is suitable for general purpose mains power AC switching.

Features :

  • Medium current triac.
  • Low thermal resistance with clip bonding.
  • Low thermal resistance insulation ceramic for insulated BTA.
  • High commutation (4Q) or very high commutation (3Q) capability.
  • BTA series UL1557 certified (File ref: 81734).
  • Packages are RoHS ( 2002/95/EC) compliant.

Basic Information :

Part No: BTA12-600BRG

Description: TRIAC 600V 126A 3-Pin(3+Tab) TO-220AB Insulated Tube

Gate Trigger Current (Max): 100 mA
Gate Trigger Voltage (Max): 1.3 V
Mounting: Through Hole
Operating Temp Range: -40C to 125C
Package Type: TO-220AB Insulated
Packaging: Rail/Tube
Peak Surge on-state current (Max): 126(A)
Peak Repeat Off Current: 0.005
Repetitive Peak off-state volt: 600(V)
Pin Count: 3 +Tab
Type: TRIAC
Off-State Voltage: 600(V)
Operating Temperature Classification: Automotive
On State Voltage(max): 1.55@17A(V)
Hold Current: 50(mA)
Rad Hardened: No
Gate Trigger Current: 100(mA)
Gate Trigger Voltage: 1.3(V)

for product datasheet, CONTACT US directly.
