3W 1450Mhz To 1800Mhz Band Pass Filter And Band Stop Filter
3W 1450Mhz To 1800Mhz Band Pass Filter And Band Stop Filter
Specifications
Brand Name :
Hansejohn
Model Number :
1450MHZ LTCC Low Pass Filter, DC -1450 MHz LF3216-1450 /LFCN-1450(+)
Certification :
Pass-band low-loss , high rejection stopband, rectangular coefficient good
Place of Origin :
wuxi
MOQ :
500
Price :
$1-50/pcs
Payment Terms :
Western Union, MoneyGram
Supply Ability :
1000000
Delivery Time :
25 day
Packaging Details :
REEL
Pass band insertion loss F1 :
DC-1450.00Mhz <2.0dB
pass band cut-off frequency F2 :
1825Mhz
pass band VSWR :
DC-1450Mhz <2.0
Stop band rejection loss F3 :
2025Mhz>20dB
Stop band rejection loss F4-F5 :
2050Mhz-6600Mhz >30dB
stop band rejection loss F6 :
6700Mhz >20dB
Stop band VSWR :
2025Mhz-6700Mhz >20

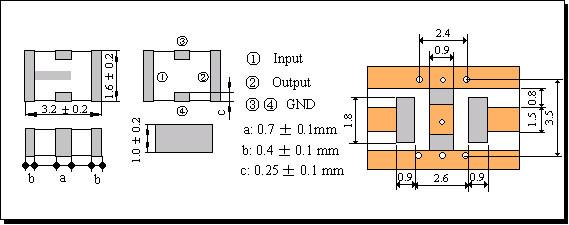

size :
3.2*1.6*1.0mm
In/Output Impedance :
50ohm
Permissible Input Power :
3W
Operating temperature :
-50℃～+85℃
Description

3W 1450Mhz To 1800Mhz Band Pass Filter And Band Stop Filter

RF Filters

Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

  • Made by low temperature co-firing process, stable structure and high consistency
  • Small size, light weight and low power
  • The frequency response can be flexibly customized with a center frequency covering 30Mhz to 138Ghz
  • SMD chip design, suitable for large-scale patch production process

Model Pass band insertion loss F1 pass band cut-off frequency F2 pass band VSWR Stop band rejection loss F3 Stop band rejection loss F4-F5 Stop band rejection loss F6 Stop band VSWR
1450Mhz DC-1450.00Mhz <2.0dB 1825Mhz DC-1450Mhz <2.0 2025Mhz>20dB 2050Mhz-6600Mhz >30dB 6700Mhz >20dB 2025Mhz-6700Mhz >20
1500Mhz DC-1500.00Mhz <2.0dB 1825Mhz DC-1500Mhz <2.0 2100Mhz>20dB 2150Mhz-6600Mhz >30dB 6800Mhz >20dB 2100Mhz-6800Mhz >20
1525Mhz DC-1525.00Mhz <2.0dB 1750Mhz DC-1525Mhz <2.0 2040Mhz>20dB 2120Mhz-6600Mhz >30dB 6700Mhz >20dB 2040Mhz-6700Mhz >20
1575Mhz DC-1575.00Mhz <2.0dB 1875Mhz DC-1575Mhz <2.0 2175Mhz>20dB 2225Mhz-6800Mhz >30dB 7100Mhz >20dB 2175Mhz-7100Mhz >20
1700Mhz DC-1700.00Mhz <2.0dB 2050Mhz DC-1700Mhz <2.0 2375Mhz>20dB 2500Mhz-6500Mhz >30dB 7000Mhz >20dB 2375Mhz-7000Mhz >20
1800Mhz DC-1800.00Mhz <2.0dB 2125Mhz DC-1800Mhz <2.0 2425Mhz>20dB 2500Mhz-7200Mhz >30dB 8600Mhz >20dB 2425Mhz-8600Mhz >20
3W 1450Mhz To 1800Mhz Band Pass Filter And Band Stop Filter
3W 1450Mhz To 1800Mhz Band Pass Filter And Band Stop Filter
3W 1450Mhz To 1800Mhz Band Pass Filter And Band Stop Filter
