3227 BI-COLOR SMD LED, RED & GREEN BICOLOR, 1206 SMD LED, SUPER BRIGHT LED,LOW POWER LED,BI-COLOR LED
3227 BI-COLOR SMD LED, RED & GREEN BICOLOR, 1206 SMD LED, SUPER BRIGHT LED,LOW POWER LED,BI-COLOR LED
3227 BI-COLOR SMD LED, RED & GREEN BICOLOR, 1206 SMD LED, SUPER BRIGHT LED,LOW POWER LED,BI-COLOR LED
3227 BI-COLOR SMD LED, RED & GREEN BICOLOR, 1206 SMD LED, SUPER BRIGHT LED,LOW POWER LED,BI-COLOR LED
Specifications
Brand Name :
XIN MING HONG
Model Number :
MH-3227QRQGC-001
Certification :
ROHS certification
Place of Origin :
CHINA
MOQ :
100000pcs
Price :
USD 0.03/PCS
Payment Terms :
T/T
Supply Ability :
50000000 /month
Delivery Time :
5-7 working days
Packaging Details :
Products are packed in one bag of 3000pcs(one taping reel)
Color :
RED AND GREEN
Package Size :
3.2X2.7X1.1mm(1206)
Forward Voltage :
RED:2.0-2.6v GREEN:3.0-3.4v
Luminous Intensity :
RED：100-200mcd GREEN：600-800MCD
Forward Current :
20MA
Domint Wave Length :
RED:625-630nm GREEN:520-530nm
Viewing Angle :
120 deg
Description

SHEN ZHEN XIN MING HONG ELECTRONIC CO.,LIMITED professional manufacture SMD LED for 10 years with good quality and best performance. Our products include 0603 0805 1206 3528 5050 etc.

3227 RED AND GREEN BI-COLOR CHIP LED

Features:

  • (1)suitable for all SMT asembly methods.
  • (2)compatible with infrared and vapor phase reflow solder process.
  • (3)compatible with automatic placement equipment.
  • (4)This product doesn't contain restriction substance,comply ROHS standard.

Applications:

  • Turn singals
  • Status indicators:comsumer & industrial
  • Backlighting:LCDS,Key pads adverstising
  • General use

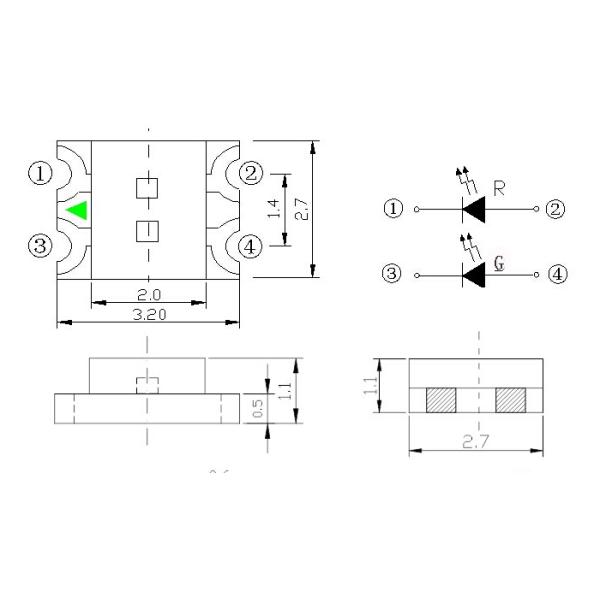

Package dimensions:

3227 BI-COLOR SMD LED, RED & GREEN BICOLOR, 1206 SMD LED, SUPER BRIGHT LED,LOW POWER LED,BI-COLOR LED

Electrical and optical characteristics(Ta=25Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)C)

Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity

Iv red

green

 100 600 - 200 800 mcd If=20mA (Note 1)
Viewing Angle 2θ1/2 --- 120 --- Deg (Note 2)
Wave length

nm red

green

625 520

 ---

630

530

 nm IF=20mA (Note 3)
Forward Voltage VF red green 1.8 3.0 2.0 3.2 2.4 3.4 V IF=20mA
Reverse Current IR --- --- 100 µA VR=5V

Soldering

  • Reflow soldering

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

3227 BI-COLOR SMD LED, RED & GREEN BICOLOR, 1206 SMD LED, SUPER BRIGHT LED,LOW POWER LED,BI-COLOR LED

  • Dip soldering(wave soldering)

Preheating:120°C-150°C, within 120-180 sec

Operation heating:245°C±5°C within 5 sec.260°C(MAX)

Gradual cooling(Avoid quenching)

3227 BI-COLOR SMD LED, RED & GREEN BICOLOR, 1206 SMD LED, SUPER BRIGHT LED,LOW POWER LED,BI-COLOR LED
