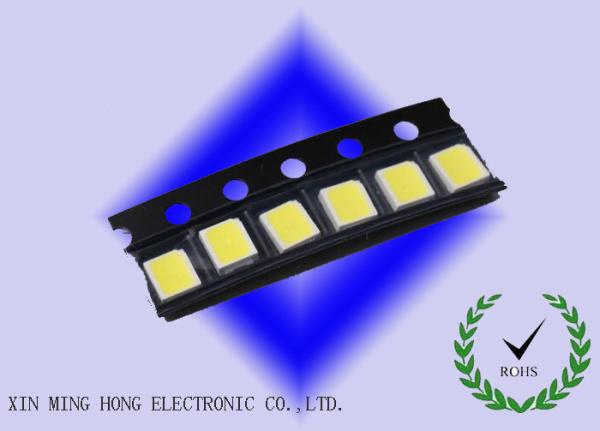

0.2w 24-26LM 2835 WHITE SMD LED, LED CHIP, 2835 TOP LED, 2835 NATURAL WHITE SMD LED,GOOD PRICE AND HIGHT QUALITY SMD LED
0.2w 24-26LM 2835 WHITE SMD LED, LED CHIP, 2835 TOP LED, 2835 NATURAL WHITE SMD LED,GOOD PRICE AND HIGHT QUALITY SMD LED
0.2w 24-26LM 2835 WHITE SMD LED, LED CHIP, 2835 TOP LED, 2835 NATURAL WHITE SMD LED,GOOD PRICE AND HIGHT QUALITY SMD LED
0.2w 24-26LM 2835 WHITE SMD LED, LED CHIP, 2835 TOP LED, 2835 NATURAL WHITE SMD LED,GOOD PRICE AND HIGHT QUALITY SMD LED
Specifications
Brand Name :
XIN MING HONG
Model Number :
MH-2835UWC-037
Certification :
ROHS certification
Place of Origin :
CHINA
MOQ :
120000pcs
Price :
USD 0.02-USD0.05/PCS
Payment Terms :
T/T
Supply Ability :
50000000 /month
Delivery Time :
3-5 working days
Packaging Details :
Products are packed in one bag of 4000pcs(one taping reel)
Emitting Color :
Natural WHITE
Package Size :
2.8x3.5x0.8(2835)
Forward Voltage :
3.0-3.4v
Luminous Intensity :
24-26LM
Forward Current :
20MA
Domint Wave Length :
8000-10000K
Viewing Angle :
120 deg
Power Dissipation :
0.2w
Len type :
Yellow diffuse flat mold
Color Rendering Index(Ra) :
85
Description

SHEN ZHEN XIN MING HONG ELECTRONIC CO.,LIMITED professional manufacture SMD LED for 10 years with good quality and best performance. Our products include 0603 0805 1206 3528 5050 etc.

2835 WHITE SMD LED CHIP

Features:

  • (1)suitable for all SMT asembly methods.
  • (2)compatible with infrared and vapor phase reflow solder process.
  • (3)compatible with automatic placement equipment.
  • (4)This product doesn't contain restriction substance,comply ROHS standard.

Applications:

  • Turn singals
  • Status indicators:comsumer & industrial
  • Backlighting:LCDS,Key pads adverstising
  • General use

0.2w 24-26LM 2835 WHITE SMD LED, LED CHIP, 2835 TOP LED, 2835 NATURAL WHITE SMD LED,GOOD PRICE AND HIGHT QUALITY SMD LED0.2w 24-26LM 2835 WHITE SMD LED, LED CHIP, 2835 TOP LED, 2835 NATURAL WHITE SMD LED,GOOD PRICE AND HIGHT QUALITY SMD LED

Package Dimensions:

0.2w 24-26LM 2835 WHITE SMD LED, LED CHIP, 2835 TOP LED, 2835 NATURAL WHITE SMD LED,GOOD PRICE AND HIGHT QUALITY SMD LED

Electrical and optical characteristics(Ta=25Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)C)

Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 24 --- 26 LM If=20mA (Note 1)
Viewing Angle 2θ1/2 --- 120 --- Deg (Note 2)
Colour temperature k 6000 --- 6500 k IF=20mA (Note 3)
Forward Voltage VF 3.0 3.2 3.4 V IF=20mA
Reverse Current IR --- --- 100 µA VR=5V

Soldering

  • Reflow soldering

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

0.2w 24-26LM 2835 WHITE SMD LED, LED CHIP, 2835 TOP LED, 2835 NATURAL WHITE SMD LED,GOOD PRICE AND HIGHT QUALITY SMD LED

  • Dip soldering(wave soldering)

Preheating:120°C-150°C, within 120-180 sec

Operation heating:245°C±5°C within 5 sec.260°C(MAX)

Gradual cooling(Avoid quenching)

0.2w 24-26LM 2835 WHITE SMD LED, LED CHIP, 2835 TOP LED, 2835 NATURAL WHITE SMD LED,GOOD PRICE AND HIGHT QUALITY SMD LED
