LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED
LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED
LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED
LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED
LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED
LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED
Specifications
Brand Name :
XIN MING HONG
Model Number :
MH-110QRC-001
Certification :
ROHS certification
Place of Origin :
CHINA
MOQ :
100000pcs
Price :
USD 0.011/PCS
Payment Terms :
T/T
Supply Ability :
50000000 /month
Delivery Time :
3-5 working days
Packaging Details :
Products are packed in one bag of 2000pcs(one taping reel)
Color :
RED
Package Size :
3.5x2.8x1.9mm(3528)
Forward Voltage :
2.0-2.4V
Luminous Intensity :
1500-2000MCD
Forward Current :
20MA
Domint Wave Length :
620-630
Viewing Angle :
120 deg
Description

SHEN ZHEN XIN MING HONG ELECTRONIC CO.,LIMITED professional manufacture SMD LED for 10 years with good quality and best performance. Our products include 0603 0805 1206 3528 5050 etc.

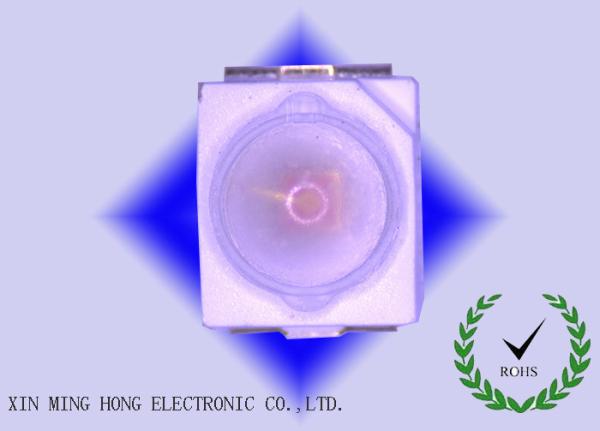

3528 RED LED WITH LENS

Features:

  • (1)suitable for all SMT assembly methods.
  • (2)compatible with infrared and vapor phase reflow solder process.
  • (3)compatible with automatic placement equipment.
  • (4)This product doesn't contain restriction substance,comply ROHS standard.

Applications:

  • Turn singals
  • Status indicators:comsumer & industrial
  • Backlighting:LCDS,Key pads adverstising
  • General use

Package Dimensions:LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED

Electrical and optical characteristics(Ta=25Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)C)

Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 200 - 400 mcd If=20mA (Note 1)
Viewing Angle 2θ1/2 --- 120 --- Deg (Note 2)
Wave length nm 620 625 630 nm IF=20mA (Note 3)
Forward Voltage VF 2.0 2.2 2.4 V IF=20mA
Reverse Current IR --- --- 100 µA VR=5V

Soldering

  • Reflow soldering

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED

  • Dip soldering(wave soldering)

Preheating:120°C-150°C, within 120-180 sec

Operation heating:245°C±5°C within 5 sec.260°C(MAX)

Gradual cooling(Avoid quenching)

LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED

LED BRAKE LIGHT FOR CAR, 3528 RED LED WITH LENS, 1210 SMD LED, SUPER BRIGHT LED,LOW POWER LED,LENS LED
