LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light
LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light
LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light
LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light
LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light
LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light
LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light
LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light
Specifications
Brand Name :
LEARNEW OPTO
Model Number :
LN-SMD5054RGBW-P4-LYH/LN-SMD5054RGB-P3-LYH
Certification :
CE/RoHs
Place of Origin :
CHINA
MOQ :
50000
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500,000PCS per month
Delivery Time :
1-7 working days for samples, 1-4Weeks for quantity Order
Packaging Details :
Anti-static Blister packing
Name :
SMD RGBW LED CHIP
POWER :
4W/3W
CHIPS :
SANAN CHIP
IF :
300mA
WHOLE SIZE :
5.0*5.4MM
LES :
R5.0MM
VIEW ANGLE :
120°
SUBSTRATE :
PCT
Description

Consistent Color Smooth Light Quality Full Color RGBW 4 in 1 MULTIPLE COLOR 5054 3W 4W RGBW

5054 SMD LED CHIP Details

PART NUMBER POWER CCT LUMINUOUS EFF CHIPS IF VF CIRCUIT WHOLE SIZE LES VIEW ANGLE SUBSTRATE
LN-SMD5054RGBW-P4-LYH 4W R=620-630nm
G=520-530nm
B=450-470nm
W=6000-7000K		 R=30-40lm
G=60-70lm
B=20-30lm
W=70-90lm		 SANAN CHIP 300mA R=2.0-2.4V
G=3.0-3.4V
B=3.0-3.4V
W=3.0-3.4V		 1PCS in series
1PCS in parallel
4 circuit		 5.0*5.4MM R5.0MM 120° PCT
LN-SMD5054RGB-P3-LYH 3W R=620-630nm
G=520-530nm
B=450-470nm		 R=30-40lm
G=60-70lm
B=20-30lm		 SANAN CHIP 300mA R=2.0-2.4V
G=3.0-3.4V
B=3.0-3.4V		 1PCS in series
1PCS in parallel
3 circuit		 5.0*5.4MM R5.0MM 120° PCT

DESIGN ADVANTAGE

1,PCT leadframe.
2,High ESD pass
3,Standard A Class chips.
4,Cost performance.
5,Gold wire bond.
6,Easy reflow sodering.

APPLICATION

1,LED stage light
2,LED landscape lighting

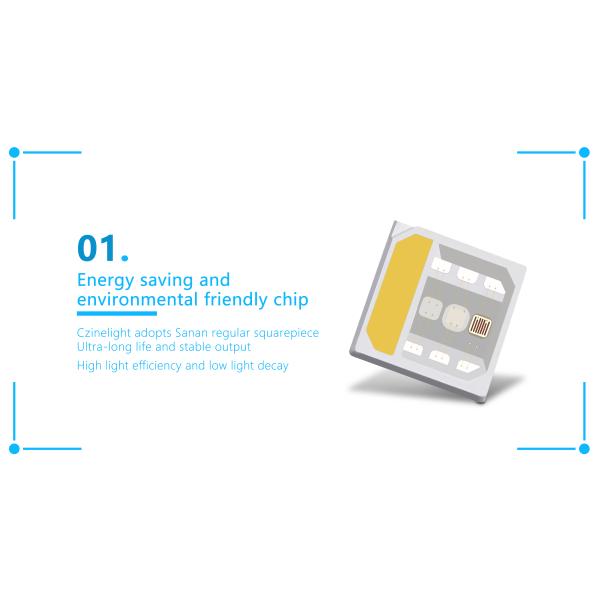

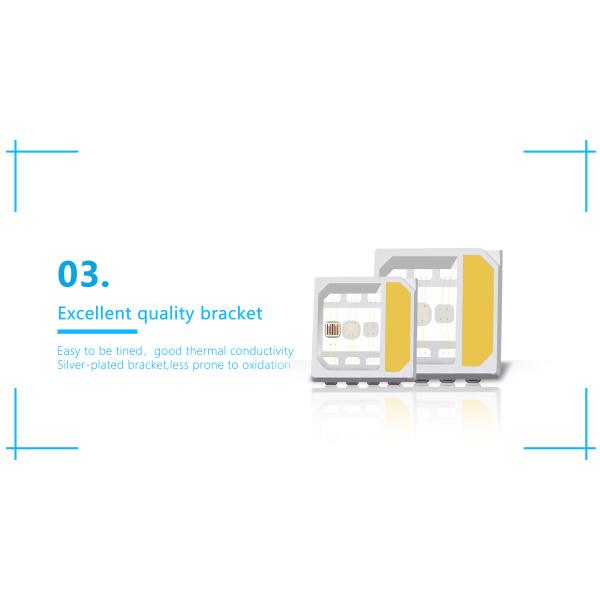

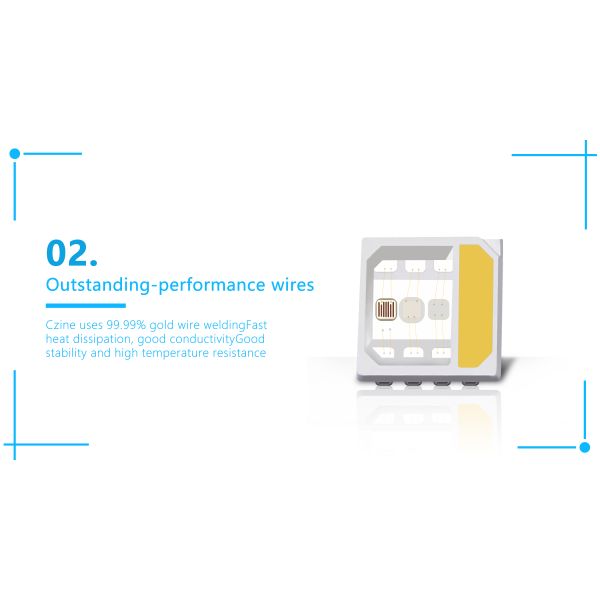

5054 RGBW LED CHIP picture

LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light

LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage LightLEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light

LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light

LEARNEW RGB LED SMD 6064 5054 3w 4W , Epistar RGB LED Use For LED Stage Light

FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
