365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer
365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer
365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer
365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer
365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer
365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer
365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer
365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer
Specifications
Brand Name :
Learnew Opto
Model Number :
LN-SMD3838UV-P1
Certification :
RoHS CE
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
200000PCS/Monthly
Delivery Time :
7-14 working days
Packaging Details :
Anti-static Blister Packing
Wattage :
3W
Substrate :
ALN Coppering
Current :
700-1400mA
Voltage :
3.4-3.8V
Wavelength :
365nm/385nm/395nm
Whole Size :
3.8*3.8MM
Description

LN-SMD3838UV-P1

3838 3W UVA LED Chip Descriptions

Power Wavelength Current Optical Power Voltage Lighting Area Design Advantages View Angle Whole Size Application LENS Substrate
3W 365nm/385nm/395nm 700-1400mA 810-1020mW;1000-1200mW;1050-1200mW 3.4-3.8v R3.0MM 1,Long life span
2,low thermal resistance
3,High effiency
4,Ingorganic encapsulation		 60deg 3.8*3.8MM 1,LED plant Growing Market;2,UV curing,Inkjet curing;3,Photosensitive. QUARTZ GLASS LENS ALN Coppering

3838 3W UVA LED Chips'Design Advantages and Applications

365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer

365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer

365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer

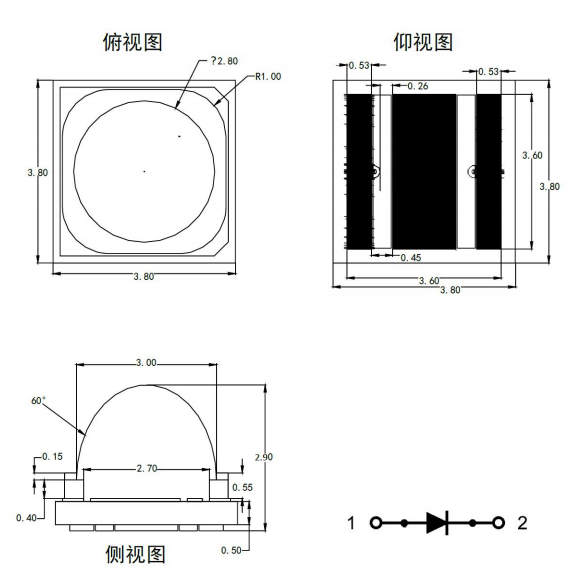

3838 3W UVA 365nm 385nm 395nm LED Chip Dimension

365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer

3838 3W UVA 365nm 385nm 395nm LED Chip Parameters

365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer

Learnew Company Profile for UV LEDs

365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer

Engineer&QC Team

365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer

Factory Info&Certifications

365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer

365nm 385nm 395nm UVA LED Chips 3838 High Power 3W For Curing Printer

FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 9 years.


Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can ask our team after knowing your post code and qty.

Q6: How to place an order?
A6: You can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
