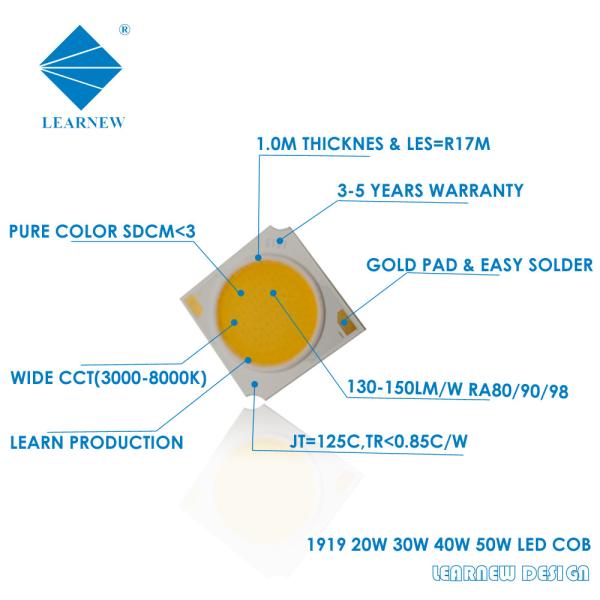

1919 30W 50W flip chip cob led 2700-6500k high cri super aluminum substrate Led cob
1919 30W 50W flip chip cob led 2700-6500k high cri super aluminum substrate Led cob
Specifications
Brand Name :
LERANEW
Model Number :
LN-AFS19XW-P24-17/LN-AFS19XW-P40-17
Certification :
CE RoHS SGS
Place of Origin :
CHINA
MOQ :
5000-10000
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200,000PCS per month
Delivery Time :
7-12 working days
Packaging Details :
Anti-static Blister packing
Color :
2700-6500K
Size :
19x19MM
LES :
R17MM
Efficiency :
120-140LM/W
Circuit :
12S4P/12S7P
View angle :
120DEG
Electrical power :
25W-35W
Input voltage :
35-38V
Description

1919 30W 50W flip chip cob led 2700-6500k high cri super aluminum substrate Led cob

1919 30W 50W flip chip cob led 2700-6500k high cri super aluminum substrate Led cob

Models LN-AFS19XW-P24-17 LN-AFS19XW-P40-17
Electronic power 25-35W 35-50W
Color temperature

WW:Warm white=2800-3200K

NW:Neutral white=4000-4500K

PW:Pure white=6000-7000K

WW:Warm white=2800-3200K

NW:Neutral white=4000-4500K

PW:Pure white=6000-7000K
Luminous efficiency 120-140lm/w 120-140lm/w
Working voltage 35-38V 35-38V
Working current 700-1000mA 900-1200mA
Circuit 12S4P 12S7P
Size 19*19mm 19*19mm
LES(Diameter) R17mm R17mm
View angle 120DEG 120DEG
CRI >80 >80
SUBSTRATE Super Aluminum Super Aluminum

1919 30W 50W flip chip cob led 2700-6500k high cri super aluminum substrate Led cob

Design Advantage :

1,High density

2,High power series

3,Low thermal resistance

4,SDCM<5

5,CRI available in 80/90/95+

6,Flip chip technology

7,Good stability

1919 30W 50W flip chip cob led 2700-6500k high cri super aluminum substrate Led cob1919 30W 50W flip chip cob led 2700-6500k high cri super aluminum substrate Led cob

Application:

1,LED spotlight

2,LED car light

3,LED downlight

4,LED tracking light

5,LED wall lamp

6,LED bulb

7,LED floodlight

8,LED streetlight

1919 30W 50W flip chip cob led 2700-6500k high cri super aluminum substrate Led cob

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.

Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).

Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.

Q5: Do you support drop shipping and how much is the shippping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.

Q6: How to place an order?

A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).

Q7: What payment terms are available?

A7: T/T,PayPal, Western Union and Secure Payment.
