Specifications
Brand Name :
LEARNEW OPTO
Model Number :
LN-SMD3535UVC-P0.5
Certification :
CE/RoHs/SGS
Place of Origin :
CHINA
MOQ :
1000
Price :
USD$0.35-USD$1.8/PCS
Payment Terms :
T/T, Paypal,Alipay, , T/T
Supply Ability :
500,000PCS per month
Delivery Time :
1-3 working days for samples, 1-4Weeks for quantity Order
Packaging Details :
Anti-static Blister packing
Power :
0.5W
Narrow Wavelength :
220-285NM
Input Current :
50(Max=60mA)
Input Voltage :
5-7V
Substrates :
ALN Coppering
LENS :
Quartz glass lens
View Angle :
120DEG
Chips Brand :
Imported Level-A LG/PW Chips
Description

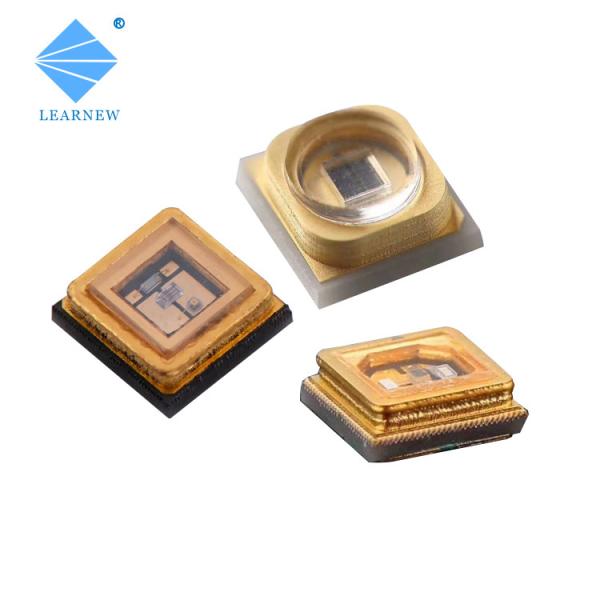

Air purifier source SMD 3535 UVC LED Chips with voltage 5-7V Germicial power 7-15mW current 50mA

North American customers recommended 1W 3535 UVC LED Chips

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Specification of SMD LED Chips

models Power Peak Wavelength

Input Current

Radiant Power Whole Size
LN-SMD3535UVC-P0.5(250-260NM) 0.5W 250-260NM 50mA(Max=60mA) 7-15mW 3.5*3.5mm
LN-SMD3535UVC-P0.5(260-270NM) 0.5W 260-270NM 50mA(Max=60mA) 7-15mW 3.5*3.5mm
LN-SMD3535UVC-P0.5(270-280NM) 0.5W 270-280NM 50mA(Max=60mA) 7-15mW 3.5*3.5mm

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Thick 3535 ALN Coppering Substrates with New Generation Flip chip LG/Seoul semi/Dowa/PW Packing technology, Results in a good heat conductive(Thermal resistance 0.1-0.2C/W) & Long Life span(LM50 10000Hrs) & Efficiency in Sterilization purpose.

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MMWater Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

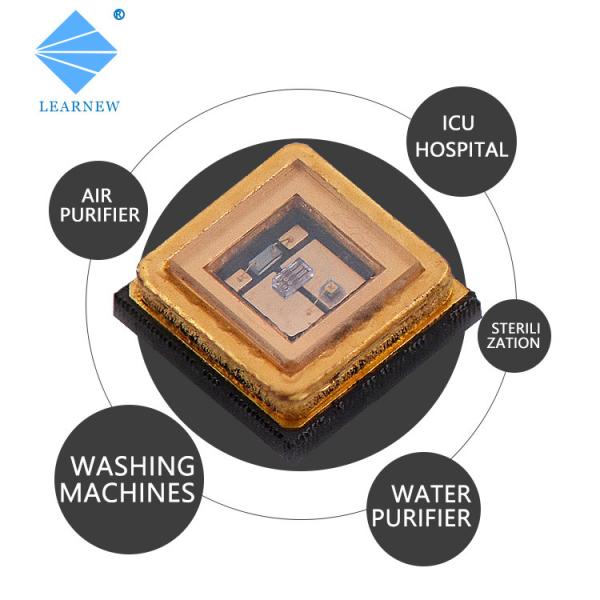

Appilcation:

  • CU Hospital
  • Air purifier
  • Water purifier
  • Washing machines Sterilization...

Feedbacks:

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online,

we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-30working days. For samples, the delivery could be as fast as same day
