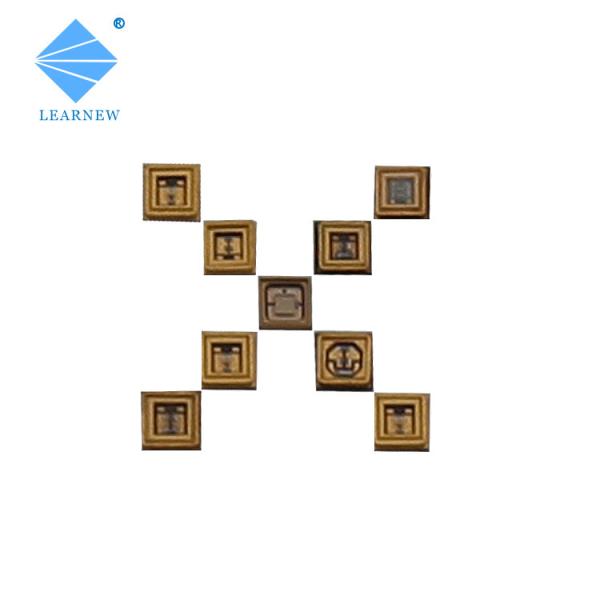

0.5w 1w 2w 3w 5w 10w Uvc Led Chip 254nm Smd For Water Air Purifier And Sterilization
0.5w 1w 2w 3w 5w 10w Uvc Led Chip 254nm Smd For Water Air Purifier And Sterilization
0.5w 1w 2w 3w 5w 10w Uvc Led Chip 254nm Smd For Water Air Purifier And Sterilization
0.5w 1w 2w 3w 5w 10w Uvc Led Chip 254nm Smd For Water Air Purifier And Sterilization
Specifications
Brand Name :
Learnew
Model Number :
LN-SMD3535UVC-P1
Certification :
CE; ROHS
Place of Origin :
China
MOQ :
1000
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000000PCS/Month
Delivery Time :
7-90
Packaging Details :
Samples packing method can be in a Antistatic bag, Anti-static plate in deal with empty space, or Circle up with foam. Order packing method will be Anti-static plate in deal with empty space.
UV-C :
LN-SMD3535UVC-P1
Power :
1W
Dominant Wavelength :
250-260nm/260-270nm/270-280nm
Optical Power :
20-30mW
IF :
100mA (max=150mA)
VF :
5-7V
Description

3535 UVC 1W 250-260nm 260-270nm 270-280nm 20-30mW 100mA 5-7V SMD UV-C LED Chip For Purifier And Sterilization​.

Power

Dominant Wavelength

Optical Power

IF

VF

Whole Size

View Angle

LENS

 Substrate

1W

250-260nm

260-270nm

270-280nm

20-30mW

100mA (max=150mA)

5-7V

3.5*3.5mm

120°

QUARTZ GLASS LENS

 ALN Coppering

Design Advantage Of SMD 3535 UVC 1W LED Chip:

1, Quartz glass package
2, High radiant flux
3, Narrow Wavelength
4. Inorganic & Nitrogen package
5, Low thermal resistance

SMD UVC 3.5*3.5mm 1W LED Chip Application:

1. ICU Hospital
2. Air purifier
3. Water purifier
4. Washing machines
5. Sterilization...

0.5w 1w 2w 3w 5w 10w Uvc Led Chip 254nm Smd For Water Air Purifier And Sterilization

0.5w 1w 2w 3w 5w 10w Uvc Led Chip 254nm Smd For Water Air Purifier And Sterilization

0.5w 1w 2w 3w 5w 10w Uvc Led Chip 254nm Smd For Water Air Purifier And Sterilization
