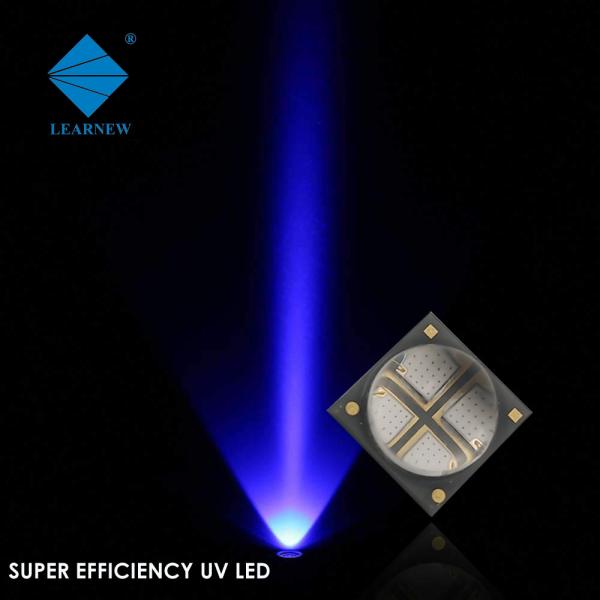

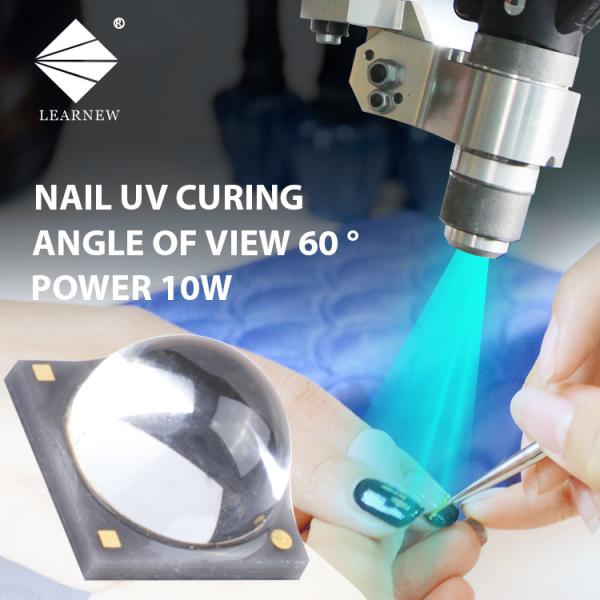

Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light
Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light
Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light
Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light
Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light
Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light
Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light
Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light
Specifications
Brand Name :
Learnew
Model Number :
LN-SMD6868UV-P4
Place of Origin :
China
MOQ :
1000
Price :
USD 2.4-4.8 /Piece
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000000Pieces/month
Delivery Time :
15-30 work days
Packaging Details :
We use a layer of waterproof material attached to the packaging box to prevent damage to the product
VF :
6.0-7.0V
Lens type :
QUARTZ GLASS LENS
SUBSTRATE :
ALN Coppering
CHIPS :
VERTICAL (EPILED & Sanan)
VIEW ANGLE :
60°
Warranty :
3 years
Lighting Area :
R5.0MM
Circuit :
2S2P
Dominant Wavelength :
365nm 385nm 395nm
Optical Power :
4100-5000mW
Description

Product Name 365-395nm UVA LED Chip Product Model LN-SMD6868UV-P4
Power Dissipation 10W Light Color UV Lights
Forward Voltage 6.0-7.0V Viewing Angle 60°
Forward Current 1500mA Operating Temperature -40~+80 ℃
SUBSTRATE ALN Coppering Storage Temperature -40~+100 ℃
Wavelength 365-395nm Soldering Temperature 260℃

Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light

Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light

Purple Luminous 10W 100W 365nm 395nm UV LED Chips 3838 For Plant Growing Light

WHAT IS UV?

Ultraviolet (UV) radiation is electromagnetic radiation of a wavelength shorter than that of the visible
region and longer than that of X-rays.

As air is opaque to UV radiation of less than 200nm wavelength, it is often subdivided into:
Near UV (380-200nm wavelength)
Extreme or Vacuum UV (200-10nm)

More commonly, when used in connection with human health and the environment, it is subdivided into:
UV-A: 315-400nm
UV-B: 280-315nm
UV-C: 250-280nm
In respect of UV curing there is also UVV (UV visible, 400-450nm). As the name suggests, UVV extends into the visible light spectrum.

WHY CHOOSE US
Learnew LED's Advantage

Never worry about our PRODUCT QUALITY;
Good Raw Material used and strict production process controlled
Famous Branded Chips 99.9%Purity Gold Wires
Original genuine Bridgelux,Epistar,Osram,Epileds,San'an chips...
High lumen,strong anti-static ability,good consistency.. High conductivity,good toughness, good stability..
Red Copper Lead Frame NarrowBinning&Voltage Sorting
High conductivity>400w/mk and thick silver coating: 80-120u One or two binning available,SDCM<3or 5 step ,0.1Vvoltage sorting available
We can offer ANY LED PRODUCT you want to;Customized LED Product available.
