High definition small pitch P2.5 indoor full color LED Display for rental cabinet
High definition small pitch P2.5 indoor full color LED Display for rental cabinet
High definition small pitch P2.5 indoor full color LED Display for rental cabinet
High definition small pitch P2.5 indoor full color LED Display for rental cabinet
High definition small pitch P2.5 indoor full color LED Display for rental cabinet
High definition small pitch P2.5 indoor full color LED Display for rental cabinet
High definition small pitch P2.5 indoor full color LED Display for rental cabinet
High definition small pitch P2.5 indoor full color LED Display for rental cabinet
Specifications
Brand Name :
Dehao
Model Number :
P2.5
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
15-20 working days after payment
Packaging Details :
Standard wooden case or flight case packing as customer's request
MOQ :
5 square meters
Price :
Negotiation
Supply Ability :
3000 square meters per month
Pitch :
2.5mm
Density :
160000 dot/㎡
Module size :
160x160mm
Module resolution :
64x64 dot
LED standard :
SMD2121
Brightness :
≥1200 cd/㎡
Viewing distance :
2-20m
Warranty period :
2 years
Description

High definition small pitch P2.5 indoor full color LED Display for rental cabinet

Product Description


Product Parameters

1.LED Module
Dot Pitch(mm)2.5mm Size(W×H)160*160mm
Pixel Point(Dot/ m2)160000 dots/m2 Resolution(W×H)64 * 32 dots
2.LED Lamp: Epistar
3. Simply Cabinet or Wall Frame
Module sizes160*160mm
Cabinet Size(W×H)960mm * 960mm (rental can be: 640*640mm)
Module Weight(g/pcs)About 120g/pcs
4.Led Display Specification
ITMESPECIFICATION
LED DisplayBest View distance:2.5~100m
Viewing angle-Horizontal :120 degree;
Viewing angle-Vertical :90 degree
Environment Temp: -40ºC ~ +85ºC
Working Temp: -20ºC ~ +50ºC
Operating Humidity Range:≤10~95%
Power SupplyOperating Voltage: 220V±5%
Average Power: 400W/m2
Max Power: 1200W/m2
Control SystemControl mode:Novastar/ Colorlight/ Huidu/Linsn/Listen
Main Technical ParameterFull white brightness:≥1000nits
Driving IC:MBI Led Driver
Scan mode:1/16 scan
Frame frequency:≥60 HZ/s
Refresh rate:≥1000 HZ/s
Grey scale levels/Color processing:65536levels, Process 16.7M colors
Brightness adjustment mode: 100 levels available
MTBF:≥10,000 hours
Life-span:100,000 hours
Flatness:neighbor pixel≤0.5mm;module joint gap<1mm ;
Uniformity:pixel light intensity, module brightness uniformity
power supply :5V/40A


Product Features:
1. Certification:
CE, RoHS, FCC, UL authorized;
2. Good Raw Material:
The raw material including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antirust. High strictly selected LED chips (Nationstar,Kinglight,EPISTAR), to ensure the long lifetime and high brightness of our LED display system.
3. Clear vivid image quality:
Throughout the show, the picture clear, bright color. Video, flash, animation, graphic, text available.
4. Installation is simple, easy to use:
Easy and simple installation interface and user friendly software to ensure that customers use easily, installation structure drawing offered FOC.
5. Superior uniformity and ultra-wide view angle:
Good performance in color uniformity. The color formation must be RGB: 3: 6: 1 as required.
6. High stability and long span:
Aging test at least 24 hours before shipment, 100, 000 hours life span, while the power consumption is lower than one tenth of lamp or neon;
7. Competitive price:
Our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
8. Good quality and service:
ISO9001: 2008 QC system, 1% spare parts offered FOC, factory visiting and inspecting is welcome; training in our factory offered FOC; on-line remote
ervice is available; 2 years warranty offered;
Application:

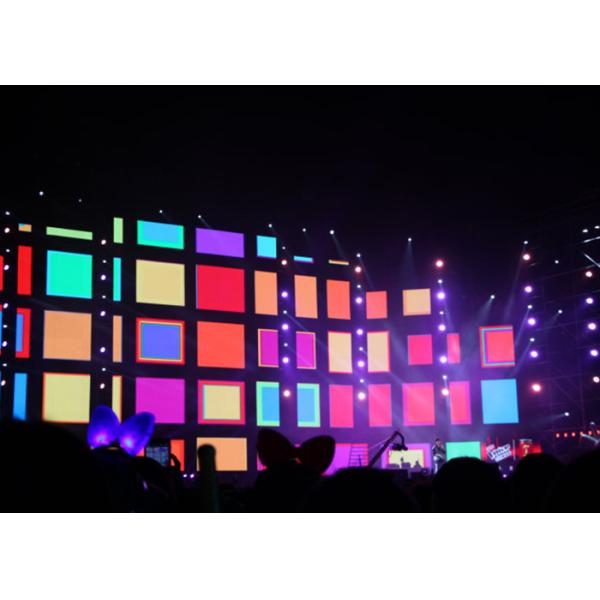

Our full color LED display are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.
Some Cabinets and Packing:
High definition small pitch P2.5 indoor full color LED Display for rental cabinet
High definition small pitch P2.5 indoor full color LED Display for rental cabinet
Why us:
1) CE,RoHS,FCC, ISO9001
2) Low consumption
3) Competitive price as stocks and lower marketing expense.
4) Good quality by using Nationstar/Kinglight led lamp, MBI IC.
Our services:
1) Your inquiry will be replied within 24 hours!
2) 2 years for warranty, service time: 24 hours*7 days.
3) Aging test at least 24 hours before shipment.
4) Factory and product inspection accepted.
Trade Terms:
1) Packing: Anti-shaking wooden cabinet /Air flight case/carton.
2) Shipping port: Shenzhen. China.
3) Shipping freights are quoted according to your requests.
4) Delivery time:7-15 working days.
