P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡
P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡
P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡
P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡
P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡
P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡
P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡
P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡
Specifications
Brand Name :
Dehao
Model Number :
P1.667
Certification :
CE ROHS FCC UL
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
20-30 working days after deposit
Packaging Details :
Standard wooden case or flight case packing as customer's request
MOQ :
1 square meter
Price :
Negotiation
Supply Ability :
2000 square meters per month
Pitch :
1.667mm
Density :
360000 dot/㎡
Module size :
200x150mm
Module resolution :
120x90 dot
LED standard :
SMD1010
Brightness :
≥600 cd/sqm
Viewing distance :
2-30m
Warranty period :
2 years
Description

Indoor P1.667 SMD Small Pixel Pitch Stage Rental Indoor LED Display Screen


Product Description

P1.667/1.923 Indoor Small Pixel Pitch rental LED Display screen
1.Parameter:
1.LED Module
Dot Pitch(mm)1.667mmSize(W×H)200*150mm
Pixel Point(Dot/ m2)360000 dots/m2Resolution(W×H)120 * 90 dots
2.LED Lamp: Epistar/Kinglight/Nationstar
3. Rental Cabinet or Wall Frame
Module sizes200*150mm
Cabinet Size(W×H)400mm * 300mm
Module Weight(g/pcs)About 600g/pcs
4.Led Display Specification
ITMESPECIFICATION
LED DisplayBest View distance:1.667~15m
Viewing angle-Horizontal :160 degree;
Viewing angle-Vertical :110 degree
Environment Temp: -40ºC ~ +85ºC
Working Temp: -20ºC ~ +50ºC
Operating Humidity Range:≤10~95%
Power SupplyOperating Voltage: 220V±5%
Average Power: 400W/m2
Max Power: 900W/m2
Control SystemNovastar/ Colorlight/ Huidu/Linsn/Listen
Main Technical ParameterFull white brightness:≥600nits
Driving IC:MBI5124 Led Driver
Scan mode:1/30 scan
Frame frequency:≥60 HZ/s
Refresh rate:≥960 HZ/s
Grey scale levels/Color processing:65536levels, Process 16.7M colors
Brightness adjustment mode: 100 levels available
MTBF:≥10,000 hours
Life-span:100,000 hours
Flatness:neighbor pixel≤0.5mm;module joint gap<1mm ;



2. Product Features:

1) High brightness(>600cd/㎡ ), adjustable.
2) Clear vivid image quality.
3) Good Raw Materials: Nationstar/ Epistar/ Kinglight led chip, Chipone/MBI IC, G-energy/ CL Power Supply.
4) Installation is simple by fast lock.
5) High stability and long span: Aging test at least 24 hours before shipment, 100, 000 hours life span.
6) Cabinet: Diecasting aluminum rental cabinets 640*640mm or standard iron waterproof 960*960 cabinets.
7) Package: Flight case, wooden box package & carton box and so on.
8) Guarantee:2 years.

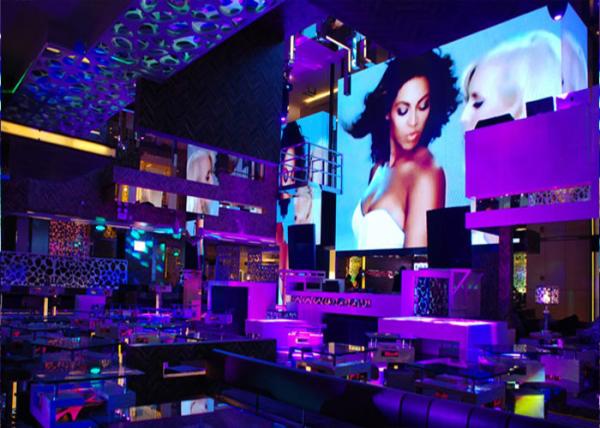

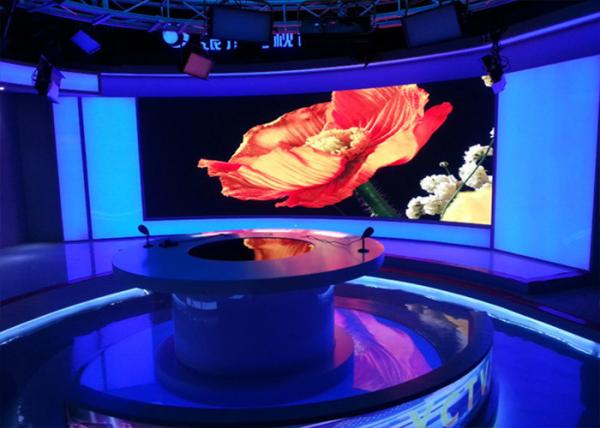

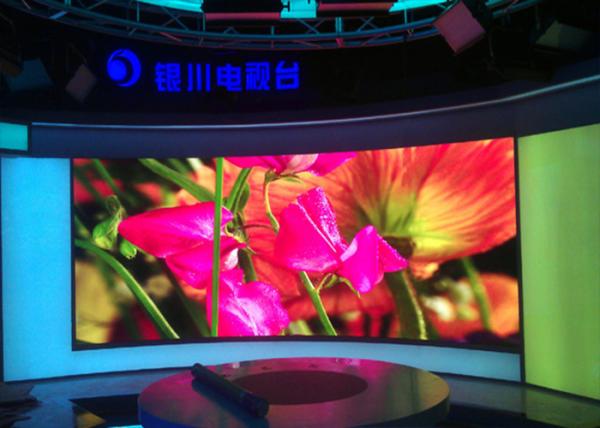

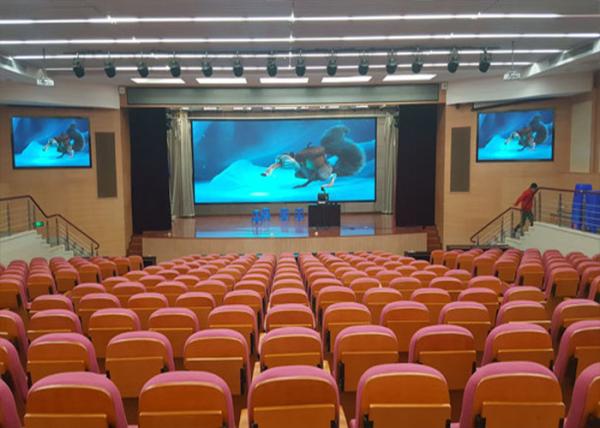

3. Application Case:

Our full color LED display are widely used in commercial advertising, entertainment industry, financial industry,communications, power sector, traffic, stadium, plaza, school, airport, bus station etc. for advertising and displaying messages.

P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡
P1.667 Small Pitch LED Display , Stage Rental LED Display Screen 360000 dot/㎡


4. Our services:
1) Your inquiry will be replied within 24 hours!
2) 2 years for warranty, service time: 24 hours*7 days.
3) Aging test at least 24 hours before shipment.
4) Factory and product inspection accepted.


5. Trade Terms:
1) Packing: Anti-shaking wooden cabinet /Air flight case/carton.
2) Shipping port: Shenzhen. China.
3) Shipping freights are quoted according to your requests.
4) Delivery time:15-25 working days.
