P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen
P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen
P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen
P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen
P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen
P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen
P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen
P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen
Specifications
Brand Name :
Dehao
Model Number :
P3
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
10-15 working days after payment
Packaging Details :
Standard wooden case or flight case packing as customer's request
MOQ :
1 square meter
Price :
Negotiation
Supply Ability :
3000 square meter per month
Pitch :
3mm
Density :
111111 dot/㎡
Module size :
192x192mm
Module resolution :
64x64 dots
LED standard :
SMD2121
Brightness :
≥1000 cd/㎡
Viewing distance :
3-20m
Warranty period :
2 years
Description

P3 Full Color Indoor Fixed High Quality Advertising LED Display Board

Product Description:

1) Indoor P3 SMD2121 led screen is made by first-class LED Lamp chip.
2) Support text, graphic, animation and video with synchronous/asynchronous.
3) High contrast, good flatness, wide viewing angle, low energy consumption.
4) Easy installation & application, freely meet customized picky requirements.
5) Long-term brightness capacity through product life-time with 100000 hours.
6) Sensors such as brightness/temperature/humidity display can be extended.
7) General configuration: power supply, control system, cabinet & processor.
8) General performance: 100,000-hour efficient life-time & 10,000-hour MTBF.

Technical Parameter:

Features
Pixel pitch: 3mm
Density: 111111 dots/m2
Lamp origin: R/G/B=Kinglight
Colors: 1R1G1B
Led specs: SMD2121
Module resolution: W64×H64
Best viewing distance: ≥4m
Best viewing angle: H140,V140
Environment temperature: (-30ºC ~ +90ºC)
Working temperature: (-20ºC ~ +50ºC)
RH: 25~95%
Module weight: About 225g.
Average power consumption: 668W/㎡
Largest power consumption: 945W/㎡
Scan mode: 1/32S
rame frequency: ≥60 frame/s
Refresh rate: ≥600 Hz/s
Grey scale levels/Color processing: 4096levels,Process 16.7M colors
Full white brightness: ≥1000cd/㎡


Module photo
Module size: 192*192MM, 1/32 Scan

P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen

P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen

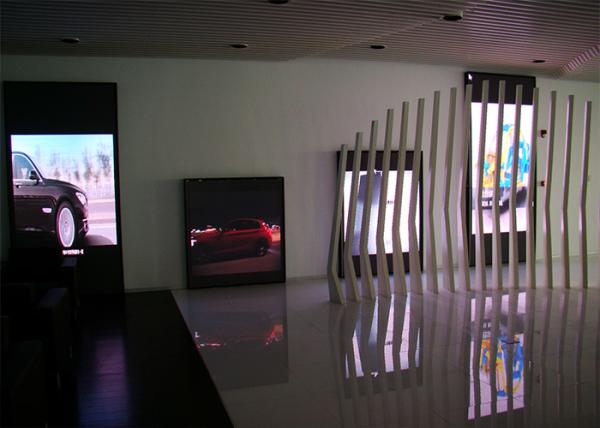

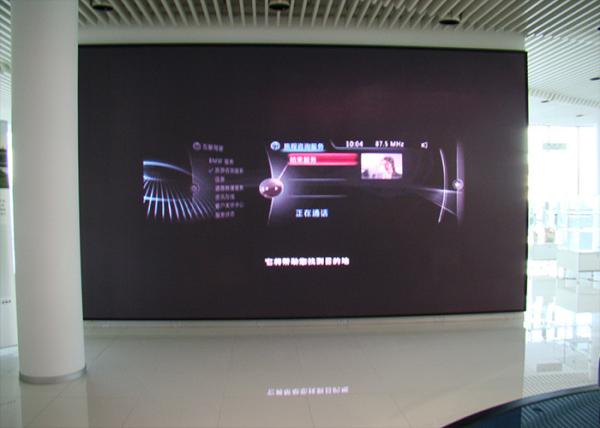

Screen photo
Brightness 1000cd/㎡, LINSN synchronous control system

P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screenP3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen

P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen

3.Package:

We use carton with foam sheet and cabinet with wooden case/flight case.
We will choose the most practical package as to customer's requirements.
1) Carton with foam plate / EPE
2) Neutral packaging without logo
3) Anti-shaking wooden case package for sea shipment.
4) Flight case package with convenient transportation.
5) Customized package can be designed and made.
P3 SMD2121 Indoor Advertising fixed LED Display full color 192x192mm led screen
