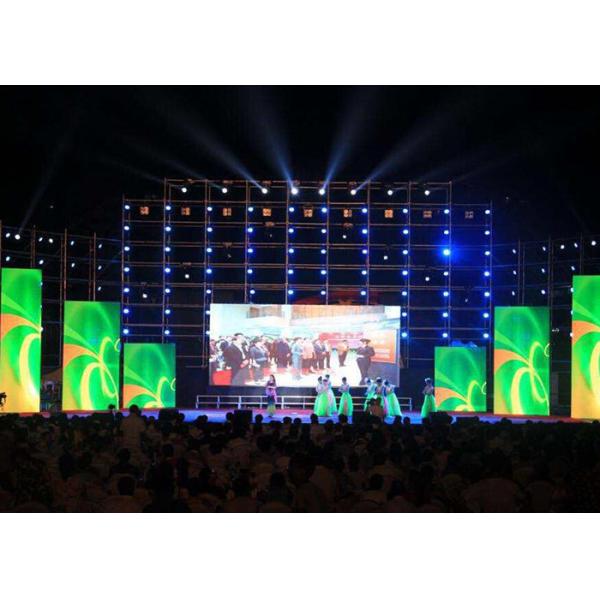

Application
Indoor stage, Banks, stock exchange centers, bus station,Theme park, Airport, Commercial advertising,Mobile media.
Product feature
1.Thanks to the SMD triad technology, the screen is capable of wide viewing angle, smoother surface and stability.
2.Seamless splicing .
3.High gray level and lower brightness delivers good display performance and vivid image.
4.quick installation and easy maintenance, front or rear maintenance.
Specification
ITEM NO | P2 | P2.5 | P3 | P4 |
Module Parameter | ||||
Pixel Pitch | 2mm | 2.5mm | 3mm | 4mm |
Pixel Density | 250000 dot/m2 | 160000 dot/m2 | 111111 dot/m2 | 62500 dot/m2 |
LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
LED Type | SMD1515Black | SMD2121Black | SMD2121Black | SMD2121Black |
Module resolution | 64×64 dot | 64×64 dot | 64×64 dot | 64×32dot |
Module Size | 128×128 mm | 160×160mm | 192×192 mm | 256×128 mm |
Cabinet Parameter | ||||
No of module | 4×4 | 3×3 | 3×3 | 2×4 |
Cabinet Size | 512×512mm | 480×480mm | 576×576mm | 512×512mm |
Flatness | Gap ≤0.2mm | |||
Maintain Way | Rear | |||
IP Rating | IP 43 | |||
Cabinet Material | Aluminium die casting | |||
General Parameter | ||||
Driving method | 1/32 | 1/32 | 1/32 & 1/16 | 116 |
Driving IC | MBI-5124 | |||
Gray Scale | 65536 | |||
Refresh rate | ≥1000 Hz | |||
Brightness | ≥1000 CD/m2 | |||
Color temperature | 4500K<&<9500K | |||
View angle | H:140°, V:120° | |||
Uniformity of the luminance | ≥97% | |||
Max.Power Consumption | ≤800W/m2 | |||
Avg.Power Consumption | 260W/m2 | |||
Input Voltage | AC90~264V,50/60Hz | |||
Frame Rate | 60Hz | |||
MTBF | 9000 Hours | |||
Operating Temp/Humididy | -20ºC - 50ºC / 10%-80%RH | |||
Certification | FCC,CE,Rosh | |||
Blind spot rate | ≤0.01% | |||
Support Input | Composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA | |||
Control Distance | Ethernet cable≤100m & Fiber Optic>100m |
Case
Product Advantages
High refresh rate: With NOVA control system,no scanning line when photographed.
High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect.
High resolution: The most apparent features of the new generation of LED display.
Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
High Brightness: 6000-8000cd/m2, brightness automatically adjusted.
High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time.
Long life span: over100,000hours, warranty at least 2 years.
You need = We design: Provide Personal- Customized led offer.
Remark
1.Price term:Total quotation is based on FOB Shenzhen
2.Warranty period: 2 years
3.Payment term: 30% deposit,Balance before shipping.
4.Packing method: flight case & wooden case
5.Delivery time: 15-20 days after deposit
Service
Your inquiry related to our products or prices will be replied in 24hrs.
Well-trained and experienced staffs to answer all your inquires in fluent English .
Your customized screen we can help you to design and put into product.
Protection of your sales area, ideas of design and all your private information.
Thank you for your visit, if you want more details, please contact us without hesitation !
