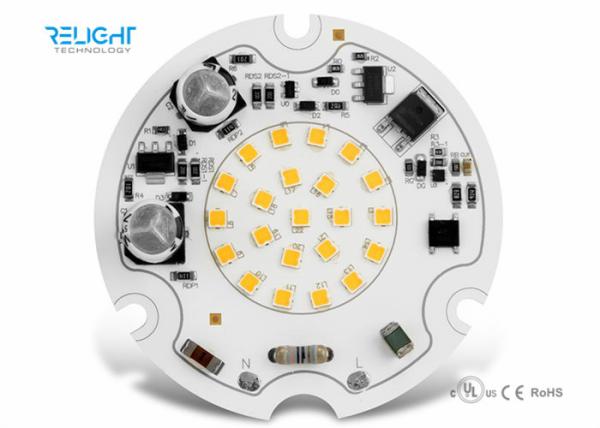

AC LED Module dimmable round module Down light 16W Flicker free
AC LED Module dimmable round module Down light 16W Flicker free
AC LED Module dimmable round module Down light 16W Flicker free
AC LED Module dimmable round module Down light 16W Flicker free
Specifications
Brand Name :
RELIGHT
Model Number :
RL-HMD100A2802H016-8**FF
Place of Origin :
CHINA
MOQ :
100PCS
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
negotiation
Packaging Details :
Customized packing design or packed in standard anti-static material
Certification :
CE RoHS ETL
Delivery Time :
7-10 work days
Material PCB :
Al board
Size :
D=100mm*1.2MM
LED :
2825
QTY LED :
28PCS
CRI :
80/90
Flicker :
No Flicker
EMC :
PASS
Power :
16W
Description

16W AC 230V round module for down light No Flicker

Quick details

16W 230V AC round 2835 LED module

Led source:

2835
Size D=100mm

Rated Watts:

16W

Input Voltage:

230V

Material:

Al board

PCB Thermal conductivity:

1.5

IP

20

Luminus(lm):

1600LM

CCT(K):

3000-6000K

Ra:

80 90

Beam angle:

120

life span(H):

50 000

Operating temperature:

-30℃-55℃

Warranty:

3 years

Detailed parameters:

P/N Power PF CRI Flux Efficiency QTY LED
- W - - LM LM/W PCS

RL-HMD070A2801H016-8**FF

16

0.9

80

1600

100

28

RL-HMD100A2802H016-8**FF

16

0.9

80

1760

110

64

RL-HMD180A2802H023-8**FF

16

0.9

80

1600

100

64

Advantage:

  • Aluminum board
  •  No flicker solution
  •  EMI compliance
  •  Surge protection: 2.5KV
  •  TRIAC dimming
  •  CCT:2700K-6500K
  •  High luminous efficiency


Product details:

AC LED Module dimmable round module Down light 16W Flicker free

AC LED Module dimmable round module Down light 16W Flicker free

Characteristics

  • Input Voltage 200~240Vac
  • Frequency 50/60Hz
  • Protection IP20
  • Surge level 2.0KV
  • Hi-pot 1.5KVac
  • Storage temperature -30-85℃
  • Operation temperature -30-55℃(Ts of led components)
  • Beam Angle 120 deg

High Efficiency with big size chip

Better heat dissipation with high quality lead frame and pure golden wire

Equipped with LED encapsulating production line, to meet varied standards in BIN and CRI

Cooperated with world grand brand, to offer customer specified LED.

Application

  • Spot light
  • Track light
  • Down light
  • Bulb lamp

Why Relight?

  • Short lead time for sampling.
  • Professional after sale service team.
  • Visiting customers regularly to understand their real needs.
  • Cooperating with professional third-party laboratories to provide customers with professional testing and certifications.
  • Cooperating with professional logistics companies and provide express service.

Our Factory:

AC LED Module dimmable round module Down light 16W Flicker free

AC LED Module dimmable round module Down light 16W Flicker free
