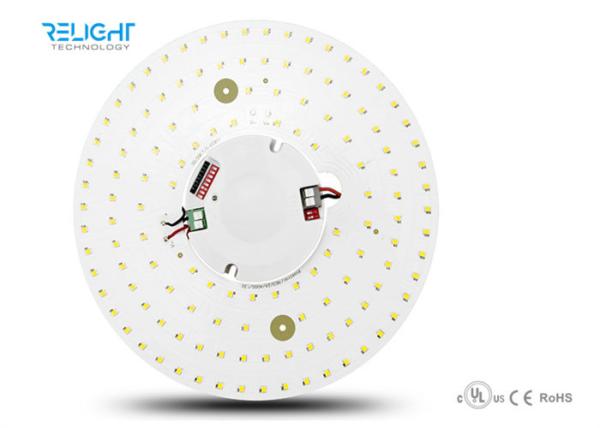

RELIGHT SMD LED senser module / LED Lighting Module with driver
Quick details

Detailed parameters:

Advantage:

• Stand-by power < 0.5W.
• Stand-by dimming level is optional, 10% / 25%.
• Integration of microwave motion sensor, daylight
• sensor and LED power supply.
• Automatic switching and dimming based on motion
• and light level.

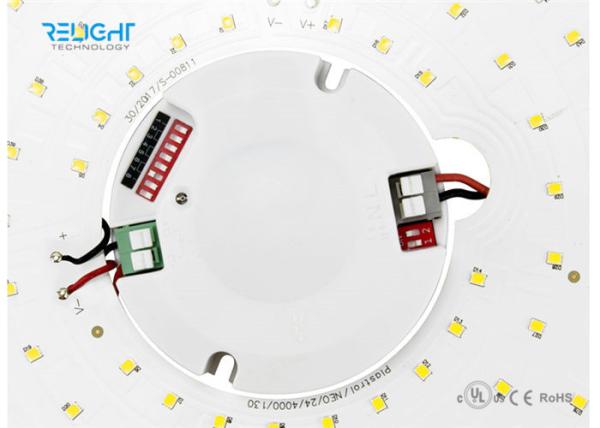

• Constant current can be set via DIP switch.
• Compact size makes the drivers suitable to fix within
• most LED ceiling lights.
• Detection area, time delay and daylight threshold
• can be precisely set via DIP switch

Sensor DIM LED drivers, are innovative products integrated with HF motion detector, daylight sensor

and LED power supply. The products supply a simple energy-saving solution for LED ceiling lights.

As all control parts are integrated in a same housing, it is very easy to assemble and save labor cost.

Compact size makes the drivers easy to be installed in luminaires and get more simple lighting

structure. As updated version adopts advanced sensor driver circuit, stand-by power is less

than 0.5W, more energy saving. In addition, optional stand-by dim level is friendlier for actual use.

Optional Function:

Detection area
Detection area can be reduced by selecting the combination on the DIP swithes to fit precisely each
application.


Hold time
Refers to the time period the lamp remains at 100% illumination after no motion detected.


Daylight sensor
The sensor can be set to only allow the lamp to illuminate below a defined ambient brightness
threshold.When set to Disable mode, the daylight sensor will switch on the lamp when motion
is detected regardless of ambient light level. 50lux: twilight operation, 15lux, 5lux: darkness
operation only.


Corridor function (Stand-by period)
Refers to the time period the lamp remains at a low light level before it completely switches off in the
long absence of people. When set to “ + ∞ ”, the low light is maintained until motion is detected.
When set to “0s”, the light will turn off after hold time.


Stand-by dimming level
The low light level you would like to have after the hold time in the long absence of people.



Product details:

















Application

• Down light
• Ceiling light
