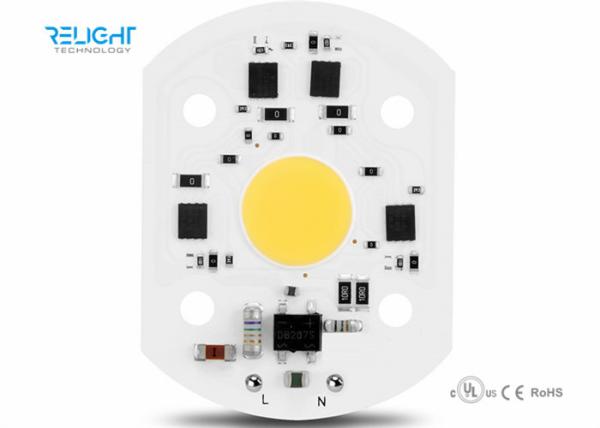

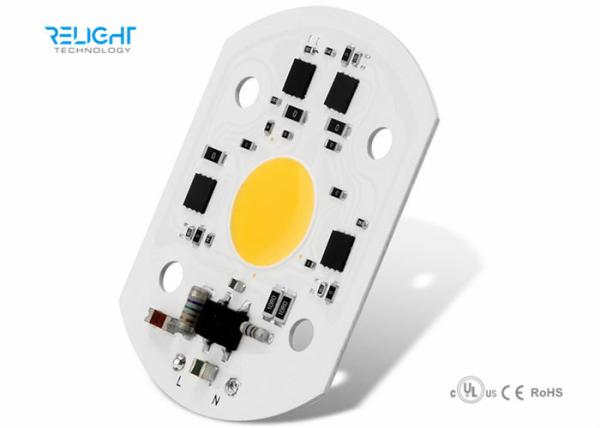

230V AC DOB Modules Dirver on board 30W 40W for sport light, track light
230V AC DOB Modules Dirver on board 30W 40W for sport light, track light
230V AC DOB Modules Dirver on board 30W 40W for sport light, track light
230V AC DOB Modules Dirver on board 30W 40W for sport light, track light
Specifications
Brand Name :
RELIGHT
Model Number :
DOB 20W 30W
Place of Origin :
CHINA
MOQ :
100pcs
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
negotiation
Delivery Time :
7-10days
Packaging Details :
Customized packing design or packed in standard anti-static material
Certification :
CE, ROSH. UL
Size :
42*57mm
CCT :
2700-6500k
PF :
>0.95
Input Voltage :
230V
Application :
Spot light/ Downlight/ Bulb light
Efficiency(LM/W) :
115LM/W
CRI :
80/90
Lumen 20W :
2300LM
Lumen 30W :
3150LM
PCB :
Al board; Ceramic board;
Description

RELIGHT 20W 30W 230V AC Driver on board module

Quick details

20W 30W 230V AC DOB module

Led source:

COB
Size 42*57mm

Rated Watts:

20W 30W

Input Voltage:

230V

Material:

Al board Ceramics board

PCB Thermal conductivity:

2.0

IP

20

Luminus(lm):

20W-2300LM 30W-3150LM

CCT(K):

2700-6000K

Ra:

80 90

Beam angle:

120

life span(H):

50 000

Operating temperature:

-30℃-55℃

Warranty:

3 years

Detailed parameters:

P/N Power PF CRI Flux Efficiency CCT
- W - - LM LM/W K
RL-TOD4257A0020HV-830 20W 0.95 80 2200 110 3000
RL-TOD4257A0020HV-840 20W 0.95 80 2300 115 4000
RL-TOD4257A0020HV-860 20W 0.95 80 2400 120 6000
RL-TOD4257A0030HV-830 30W 0.95 80 3000 100 3000
RL-TOD4257A0030HV-840 30W 0.95 80 3150 105 4000
RL-TOD4257A0030HV-860 30W 0.95 80 3300 110 6000

Advantage:

  • CRI:80/90/95 options
  • High efficiency
  • Various CCT available
  • Solutions for Down-light / Track light
  • Input directly without driver
  • Surge protection 2.0KV
  • Power factor higher than 0.95, Low THDI<10%


Product details:

230V AC DOB Modules Dirver on board 30W 40W for sport light, track light

230V AC DOB Modules Dirver on board 30W 40W for sport light, track light

Characteristics

  • Input Voltage 200~240Vac
  • Frequency 50/60Hz
  • Protection IP20
  • Surge level 2.0KV
  • Hi-pot 1.5KVac
  • THDI <10%
  • Storage temperature -30-85℃
  • Operation temperature -30-90℃(Ts of led components)
  • Beam Angle 120 deg

Application

  • Spot light
  • Track light
  • Down light

230V AC DOB Modules Dirver on board 30W 40W for sport light, track light

230V AC DOB Modules Dirver on board 30W 40W for sport light, track light

Why Relight?

  • 1. Independent LED production line, controlling product quality from the beginning.
  • 2. From raw materials to shipments, multiple inspection procedures.
  • 3. Cooperating with international companies to meet the different needs of customers.
  • 4. Customized production services, not just modules, but also finished lamps.
  • 5. Providing professional design, not just modules, but also finished lamps.

230V AC DOB Modules Dirver on board 30W 40W for sport light, track light
