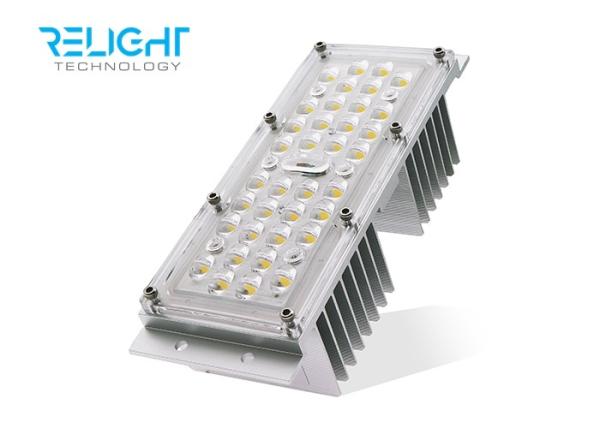

30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings
30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings
30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings
30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings
Specifications
Brand Name :
Relight
Model Number :
RL-30H3030x36-145*63
Certification :
CE,ROHS
Place of Origin :
Shenzhen
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
50,000 pcs/month
Delivery Time :
7-10 working days for sample order, 10-15 working days for bulk order
Packaging Details :
Netrual White Box with Poly bubble inside
PCB Material :
Aluminum
CCT :
4000K/ 5000K/ 5700K
IP Rating :
IP67
Cooler size :
173*70mm
Lens angle :
145*63 TPII-S
IP rank :
IP67
Cable joint :
M13/15
Driver output :
36V
Description

30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings

Quick details:

30W DC Linear LED Module
Led source: SMD 3030
Rated Watts: 30W
Voltage: 436VDC
PF: 0.98
Luminus(lm): 4000 lm±5%
CCT(K): 3000-6000K
Ra: >70
Beam angle: 145*63°
Material: Aluminum
life span(H): >30,000
Operating temperature: -30℃ ~ 55℃
warranty: 3years

Advantage:

  • On the basic character of CR 3030 series light, it shows the application of the Combination of optical and construction.
  • Our lens is made of new import PC materials TEIJIN 1250Z .
  • Industry-leading thermal management utilizing technology .
  • Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  • The LED retrofit kits contain no any mercury or lead.
  • Does not produce UV rays that harm people’s eyes.
  • Directional light means no light pollution, dark sky compliance.
  • Operating temperature range: from 35 Celsius degree to 70 Celsius degree.

Lens:

  • Material: PC
  • Beam Angle : 120 degree
  • Lens size:250*74mm
  • PCB size:230*60mm
  • Match LED: 3030, 3535 SMD LED
  • Other angle:25 degree, 60 degree and 120 degre

30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings

Product details:

30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings

30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings

30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings

Application

  • Street light
  • High way led lamp
  • Tunnel lamp
  • Square lamp
  • Parking lot lamp
  • Track lighting fixtures
  • Scenery area
  • Other applications where high luminous flux is desired

30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings

About Relight:

30w LED Street Light Module 140lm/w 3030SMD Waterproof IP67 led street light fittings
