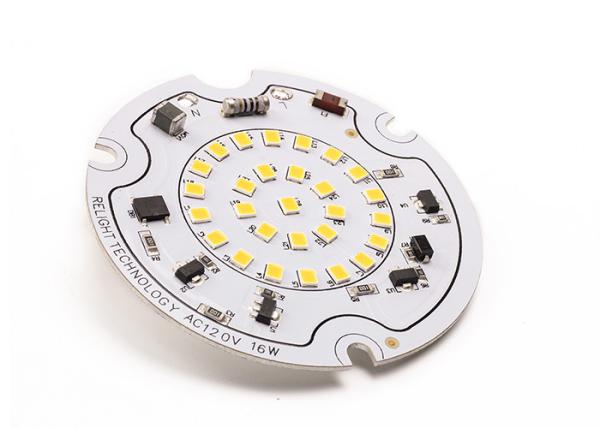

Aluminum PCB 16W AC LED Module 1600lm track light module with 120V triac dimming 3000K
Aluminum PCB 16W AC LED Module 1600lm track light module with 120V triac dimming 3000K
Aluminum PCB 16W AC LED Module 1600lm track light module with 120V triac dimming 3000K
Aluminum PCB 16W AC LED Module 1600lm track light module with 120V triac dimming 3000K
Specifications
Brand Name :
RELIGHT
Model Number :
RL-LMD70A1402H016-830FF
Certification :
CE RoHS
Place of Origin :
CHINA
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
negotiation
Delivery Time :
10-12 working day
Packaging Details :
Packed in standard anti-static materials or Customized packing design is available
PCB :
ALUMINUM
LED :
2835
CRI :
80/90ra
Lumen :
1400-1600lm
Size :
70mm
THDI :
<15%
PF :
0.9
Flicker :
<1.5%
Description

Aluminum PCB 16W AC LED Module 1600lm track light module with 120V triac dimming 3000K

Why Choose Relight?

* High Quality


Our CE/RoHS standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run,
Relight will adhere to the highest quality standards.

* Super Capable


Relight offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.

* Many years' Experience


When it comes to your build you want a partner you can depend on.

Our management team has over 8 years of combined industry knowledge. Our engineering team has over 10years experience.

* Customer First


Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important
documentation as they would their own.

* Professional Engineer


We pride ourselves on our ability to custom tailor programs around our customers' needs.

Quick details:

* Power: 16W
* Voltage: 120V
* PCB Materials: Aluminum
* PCB Size: Dia70mm
* Flux: 1400-1600lm
* LED: 2835
* CCT: 2700K/3000K/4000K @80ra
* PF:>0.9 / SDCM<5
* Dimming: Triac dim



Features:

* AC 120V input directly

* PEMI compliance
* THDI: <15%
* Surge protection: 2.5KV
* High-pot level: 1.5KV

* Various CCT available

Product images:

Aluminum PCB 16W AC LED Module 1600lm track light module with 120V triac dimming 3000K

Aluminum PCB 16W AC LED Module 1600lm track light module with 120V triac dimming 3000K

Other Standard Round Module series for reference:

P/N Size (mm) Input (Vac) PF Flicker(%) Power(W) Flux(Lm)

CRI
RL-HMD70A2801H016-830FF 70 230 0.9 <1.5 16 1400-1600 80
RL-HMD100A2802H016-830FF 100 230

0.9

 <1.5 16 1500-1800 80
RL-HMD180A2802H023-830FF 180 230 0.9 <1.5 23 2000-2300 80
RL-HMD70A2801H016-830TB 70 230 0.9 <1.5 16 1600-1800 80

RL-HMD100A2802H016-830TB

 100 230 0.9 <1.5 16 1600-1900 80
RL-HMD180A2802H023-830TB 180 230 0.9 <1.5 23 2300-2500 80


Application:

* Panel Light
* DownLight
* Ceiling Light

* Track light

* Pendant
* Wall Light

Aluminum PCB 16W AC LED Module 1600lm track light module with 120V triac dimming 3000K

Aluminum PCB 16W AC LED Module 1600lm track light module with 120V triac dimming 3000K

Our Service:

* We will reply for you within 24hours once we get your inquiry.
* Design and produce almost any LED pcb as your requirement.
* We can offer you unique design and some our current models.
* 100%testing guarrantees stable quality, ISO 9001:2000 ,UL, CE&RoHS certification.
