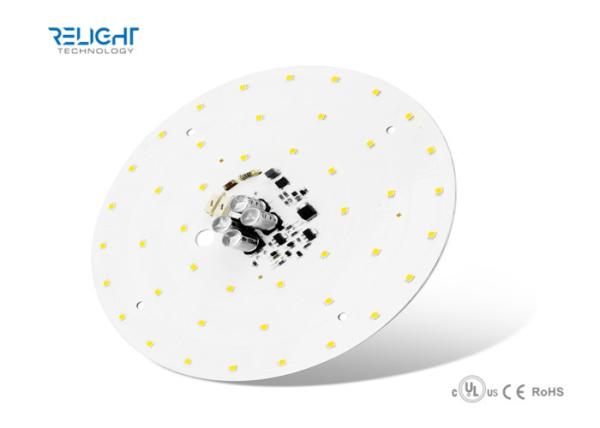

High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K
High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K
High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K
High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K
High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K
High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K
Specifications
Brand Name :
Relight
Model Number :
D100mm-HV
Certification :
CE&RoHS
Place of Origin :
Shenzhen,China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
About 10 business days
Packaging Details :
Customized packing design or standard antistatic package in carton
Product Name :
LED Round HV Module
Material :
Aluminum
Size :
D100mm
Power :
16W
Input Voltage :
230V
CCT :
2700K-6500K
CRI :
80
Efficiency :
110LM/W
Flux :
1760LM
PF :
0.95
Description

High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K

Aluminum D100mm AC 230V 16W 1760LM Round LED Module For Downlight / Ceiling Lights

High Lumen LED Module Light LED Retrofit

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - Lm Lm/W K - -
RL-HMD100A2802H016-840N Ø100 230 16 0.95 1760 110 4000 80 -
RL-HMD100A2802H016-840T Ø100 230 16 0.95 1760 110 4000 80 TRIAC
RL-HMD100A2802H016-840A Ø100 230 16 0.95 1760 110 4000 80 0-10V
RL-LMD100A1404H016-840T Ø100 120 16 0.95 1760 110 4000 80 TRIAC
RL-LMD100A1404H016-840A Ø100 120 16 0.95 1760 110 4000 80 0-10V
RL-HMD070A2801H009-840N Ø70 230 9 0.95 990 110 4000 80 -
RL-HMD070A2801H016-840T Ø70 230 16 0.95 1600 100 4000 80 TRIAC
RL-HMD070A2801H016-840A Ø70 230 16 0.95 1600 100 4000 80 0-10V
RL-LMD070A1402H016-840T Ø70 120 16 0.95 1600 100 4000 80 TRIAC
RL-LMD070A1402H016-840A Ø70 120 16 0.95 1600 100 4000 80 0-10V

HV round module retrofit Features

  • LEDs driven directly from AC line voltage, no AC/DC conversion.
  • Compact size and low-cost for design flexiblity.
  • Excellent power factor(>0.90) and low THD(<20%).Comply with EMI and other safety requirements.
  • High power conversion efficiency(>90% typical). High system luminous efficiency(>80lm/W)
  • Compatible with leading edge dimmers and most of Triac dimmers
  • Suitable for light bulb, candle light, downlight etc.

High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K

High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K

LED retrofit Application:

1. Ceiling lights

2. Advertisement light-box

3. Commercial luminaires

4. Channel lights

5. Troffer lamps
6. Architectural lighting
7. Decorative lighting

8. Panel lights

9. Down lights

10. Highbay/lowbay / flood/ceiling lights

High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K

High Power 1760LM 16W 230V HV Round LED Module 2700K - 6500K

Competitive Advantage:

  • Customized design

  • LED component analyze, engineering file service

  • Ultra samples preparation

  • After-sales service

Our Service:

  • We will reply for you within 24hours once we get your inquiry.
  • Design and produce almost any LED pcb as your requirement.
  • We can offer you unique design and some our current models.
  • 100%testing guarrantees stable quality, ISO 9001:2000 ,UL, CE&RoHS certification.

Quotation Requirement :

  • led pcb's size;
  • led pcb's model;
  • led lights' quantity;
  • led pcb's quantity.
