Specifications
Brand Name :
RELIGHT
Model Number :
AC LED module
Certification :
CE & ROHS
Place of Origin :
CHINA
MOQ :
1 000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
5 Working Days
Packaging Details :
Package size: 70X36X36 cm
Supply Ability :
50000 Set/Sets per Month
Material :
Aluminum PCB
CCT :
2700-6000K
Luminous Flux(lm) :
1000
Power: :
14W
Warranty: :
3 Years
CRI :
90
Description

Detailed Product Description

CCT:2700-5700KPCB Materials:ALUMINUM
LED:2835*28pcsCRI:80/90ra
Lumen:810-900lmSize:70mm
THDI:<15%PF:0.9


AC230V input directly led round module 16W ultra-low flicker 1.5% with EMI compliance

Quick details chart:

*Power: 14W
* LED: Samsung/ JF(2835*28pcs )
* PCB Materials: Aluminum
* PCB Size: Dia700mm
* Flux: 810-900lm
* CCT: 2700K/3000K/4000K @80ra
* PF:>0.9
* SDCM<5
* Dimming: Non-dim / Triac dim/ 1-10V dim
* Life span: 50000hrs
* Warranty: 3-5years

* PEMI compliance
Different CCT Available: 2700K, 3000K, 4000K, 5000K, 5700K
Features:
* AC 120V input directly

* THDI: <15%
* Surge protection: 2.5KV
* High-pot level: 1.5KV
* Ultra-low Flicker: <1.5%
* Various CCT available
Application:
* Panel Light
* DownLight
* Ceiling Light

* Pendant
* Wall Light
Standard Round Module series:

P/NSize (mm)Input (Vac)PFFlicker(%)Power(W)Flux(Lm)CRI
RL-HMD70A2801H016-830FF702300.9<1.5161400-160080
RL-HMD100A2802H016-830FF1002300.9<1.5161500-180080
RL-HMD180A2802H023-830FF1802300.9<1.5232000-230080
RL-HMD70A2801H016-830TB702300.9<1.5161600-180080
RL-HMD100A2802H016-830TB1002300.9<1.5161600-190080
RL-HMD180A2802H023-830TB1802300.9<1.5232300-250080


FAQ


Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.

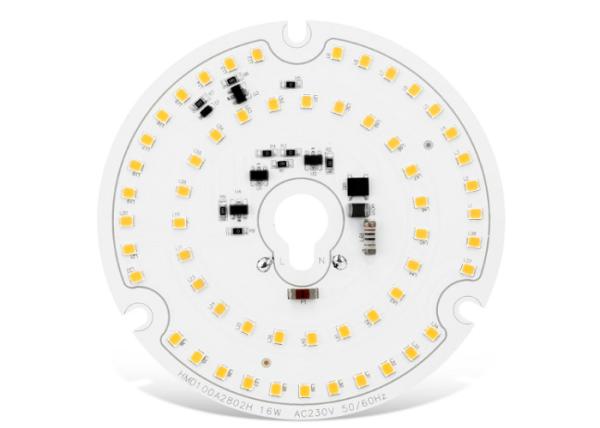

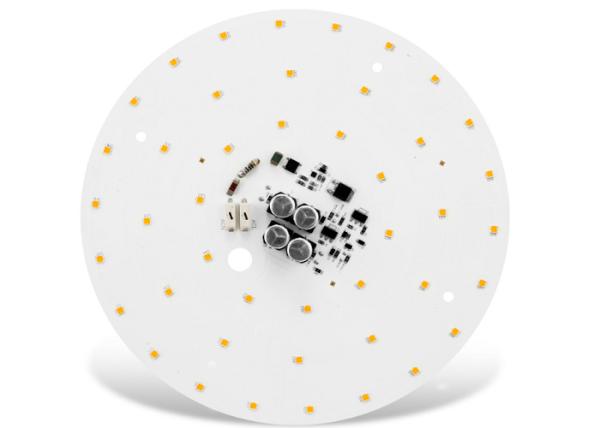

Product images:
Round AC120V/220-240V Cool White color led dimmable module D100mm-2700K/4000K CRI90 Aluminum PCB material

Round AC120V/220-240V Cool White color led dimmable module D100mm-2700K/4000K CRI90 Aluminum PCB material
Round AC120V/220-240V Cool White color led dimmable module D100mm-2700K/4000K CRI90 Aluminum PCB material
Our company:

Round AC120V/220-240V Cool White color led dimmable module D100mm-2700K/4000K CRI90 Aluminum PCB material
Round AC120V/220-240V Cool White color led dimmable module D100mm-2700K/4000K CRI90 Aluminum PCB material
