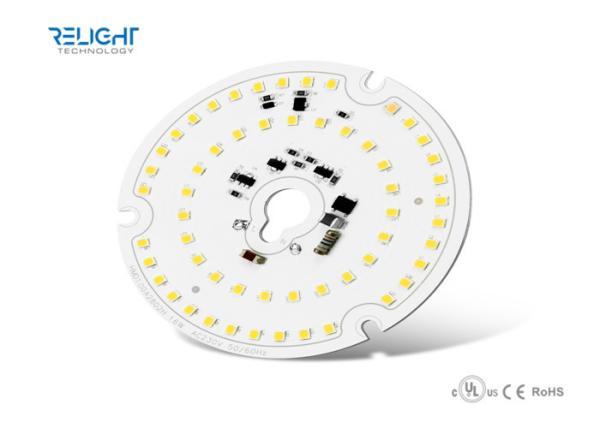

AC 230v 16w Driverless Aluminium LED Module Lights With IC Driver
AC 230v 16w Driverless Aluminium LED Module Lights With IC Driver
AC 230v 16w Driverless Aluminium LED Module Lights With IC Driver
AC 230v 16w Driverless Aluminium LED Module Lights With IC Driver
AC 230v 16w Driverless Aluminium LED Module Lights With IC Driver
AC 230v 16w Driverless Aluminium LED Module Lights With IC Driver
Specifications
Brand Name :
Relight
Model Number :
D100mm-HV
Certification :
CE&RoHS
Place of Origin :
Shenzhen,China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
About 10 business days
Packaging Details :
Customized packing design or standard antistatic package in carton
Product Name :
LED Round HV Module
Material :
Aluminum
Size :
D100mm
Power :
16W
Input Voltage :
230V
Current :
360mA
CCT :
2700-6000K
CRI :
80
Efficiency :
80LM/W
Flux :
1280LM
PF :
0.95
Description

AC 230v 16w Driverless Aluminium LED Module Lights With IC Driver

New style AC 230v round led pcb module 16w driverless aluminium pcb with IC Driver led pcb board Aluminum D100mm CRI95 CCT3500K Round LED Module For Downlight / Panel Lights

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - Lm Lm/W K - -
RL-HMD100A2802H016-840N Ø100 230 16 0.95 1760 110 4000 80 -
RL-HMD100A2802H016-840T Ø100 230 16 0.95 1760 110 4000 80 TRIAC
RL-HMD100A2802H016-840A Ø100 230 16 0.95 1760 110 4000 80 0-10V
RL-LMD100A1404H016-840T Ø100 120 16 0.95 1760 110 4000 80 TRIAC
RL-LMD100A1404H016-840A Ø100 120 16 0.95 1760 110 4000 80 0-10V
RL-HMD070A2801H009-840N Ø70 230 9 0.95 990 110 4000 80 -
RL-HMD070A2801H016-840T Ø70 230 16 0.95 1600 100 4000 80 TRIAC
RL-HMD070A2801H016-840A Ø70 230 16 0.95 1600 100 4000 80 0-10V
RL-LMD070A1402H016-840T Ø70 120 16 0.95 1600 100 4000 80 TRIAC
RL-LMD070A1402H016-840A Ø70 120 16 0.95 1600 100 4000 80 0-10V

AC 230v 16w Driverless Aluminium LED Module Lights With IC DriverAC 230v 16w Driverless Aluminium LED Module Lights With IC Driver

LED retrofit Application:

1. Ceiling lights

2. Advertisement light-box

3. Commercial luminaires

4. Channel lights

5. Troffer lamps
6. Architectural lighting
7. Decorative lighting

8. Panel lights

9. Down lights

10. Highbay/lowbay / flood/ceiling lights

AC 230v 16w Driverless Aluminium LED Module Lights With IC DriverAC 230v 16w Driverless Aluminium LED Module Lights With IC Driver

Factory&Exhibitons

AC 230v 16w Driverless Aluminium LED Module Lights With IC Driver
AC 230v 16w Driverless Aluminium LED Module Lights With IC DriverAC 230v 16w Driverless Aluminium LED Module Lights With IC DriverAC 230v 16w Driverless Aluminium LED Module Lights With IC DriverAC 230v 16w Driverless Aluminium LED Module Lights With IC DriverAC 230v 16w Driverless Aluminium LED Module Lights With IC DriverAC 230v 16w Driverless Aluminium LED Module Lights With IC DriverAC 230v 16w Driverless Aluminium LED Module Lights With IC Driver

Competitive Advantage:

  • Customized design

  • LED component analyze, engineering file service

  • Ultra samples preparation

  • After-sales service

Our Service:

  • We will reply for you within 24hours once we get your inquiry.
  • Design and produce almost any LED pcb as your requirement.
  • We can offer you unique design and some our current models.
  • 100%testing guarrantees stable quality, ISO 9001:2000 ,UL, CE&RoHS certification.

Quotation Requirement :

  • led pcb's size;
  • led pcb's model;
  • led lights' quantity;
  • led pcb's quantity.

Why us Relight?

High Quality

Our CE/RoHS standards insure quality assemblies from start to finish.

Whether it's a simple custom product or a complex turnkey production run,

Relight will adhere to the highest quality standards.

--------------------------------------------------------------------------------

Super Capable

Relight offers the latest in assembly capabilities and qualifications insuring that

quality is built into every product we produce.

------------------------------------------------------------------------------

------------------------------------------------------------------------------

Many years' Experience

When it comes to your build you want a partner you can depend on.

Our management team has over 8 years of combined industry knowledge. O

ur engineering team has over 10years experience.

--------------------------------------------------------------------------------

Customer First

Protecting your Intellectual Property is job one! Our staff of trained professionals

are all working under a strict confidentiality contract and treat your important

documentation as they would their own.

----------------------------------------------------------------------------

Professional Engineer

We pride ourselves on our ability to custom tailor programs around our customers' needs.

Contacts:

AC 230v 16w Driverless Aluminium LED Module Lights With IC Driver
