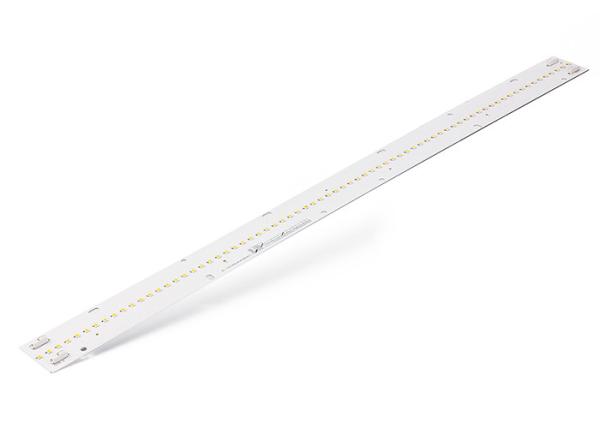

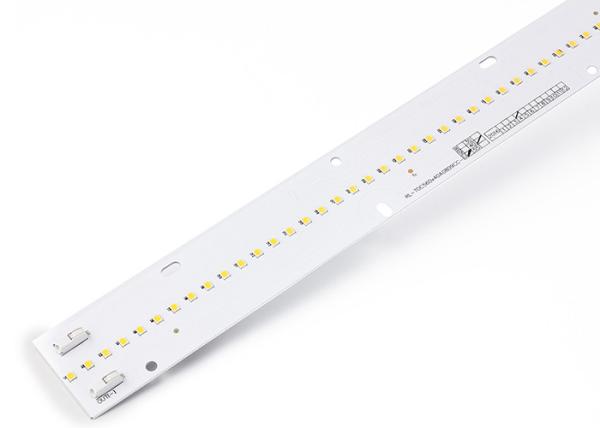

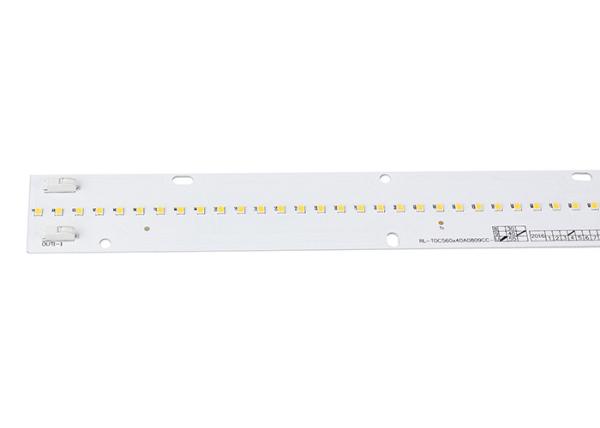

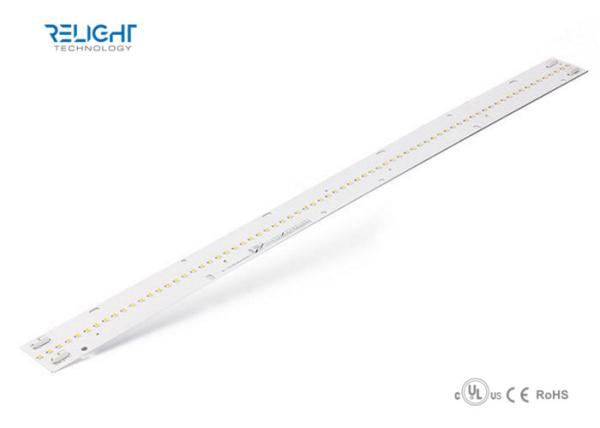

Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm
Specifications
Brand Name :
Relight
Model Number :
RL-CM560x40A36095
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
1000PCS
Delivery Time :
5-10 working days
Packaging Details :
poly, cartons
PCB :
Aluminum
LED Type :
SMD 2835
LED :
48pcs
PF :
>0.95
Input Voltage :
10-26v
Luminous Flux(lm) :
2484lm
Color Rendering Index :
80(Ra)
Power: :
18w
Color Temperature :
3000-5700K
efficiency :
138lm/W
led quantity :
84
Beam angle :
120 Deg
Cut interval :
100MM
Size :
560X40mm
Description

Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm

Specifications

*High efficiency up to 140lm/W

*High CRI even up to 95

*Color variation within 5-step Macadam

*Power: 18W/36W/12W/24W

*Voltage: 10-26v

*Dimension: 560X40mm

*CCT: 3000K/4000K/5700K

*Application: Troffer/Retrofit light/Tri-proof

Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mmLinear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm


Application reference
 -- General light
 -- Down light
 -- Ceiling light
 -- Wall light

Linear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mmLinear light DC 2835 SMD LED Module , high CRI high power led lamp module 560X40mm

Why us Relight?

High Quality

Our CE/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, Relight will adhere to the highest quality standards.

------------------------------------------------------------------------------

Super Capable

Relight offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.

------------------------------------------------------------------------------

Many years' Experience

When it comes to your build you want a partner you can depend on. Our management team has over 8 years of combined industry knowledge. Our engineering team has over 10years experience.

--------------------------------------------------------------------------------

Customer First

Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.

----------------------------------------------------------------------------

Proffesioal Engineer

We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them.
