Dimmable 100 Lm/W 280*30mm 230V / 120V Linear LED AC Module For Panel Light
Dimmable 100 Lm/W 280*30mm 230V / 120V Linear LED AC Module For Panel Light
Specifications
Brand Name :
Relight
Certification :
CE & RoHS
Place of Origin :
Shenzhen, China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
About 10 business days
Packaging Details :
Custom packing design or standard antistatic package in carton
Product name :
LED linear DC module
Material :
Aluminum
Size :
280*30mm
Power :
9 / 16w
Input Voltage :
230V / 120V
CCT :
2700-6000k
CRI :
80-95
Efficiency :
100 lm/W
Dimming :
TRIAC
Flux :
900 / 1600Lm
PF :
0.95
Description

Smart design 16w LED linear DC module for Panel light

LED linear DC module Specification:

P/N Size Voltage -Vdc Current -mA Power -W Flux Efficiency CCT CRI
mm Typ Max Typ Max Typ Max Lm Lm/W K -
RL-CM280x24A1203H007-840 280*24 34.8 39.6 200 450 7 18 1180 170 4000 80
RL-CM280x24A0409H007-840 280*24 11.6 13.2 600 1350 7 18 1180 170 4000 80
RL-CM560x24A1206H014-840 560*24 34.8 39.6 400 900 14 36 2360 170 4000 80
RL-CM560x24A0809H014-840 560*24 23.2 26.4 600 1350 14 36 2360 170 4000 80
RL-VM600x24A0706H008-840 600*24 24 - 340 - 8 - 1000 125 4000 80
RL-VM600x24A0706H016-840 600*24 24 - 680 - 16 - 1840 115 4000 80

HV Light Engine Datasheet - Linear Series.pdf

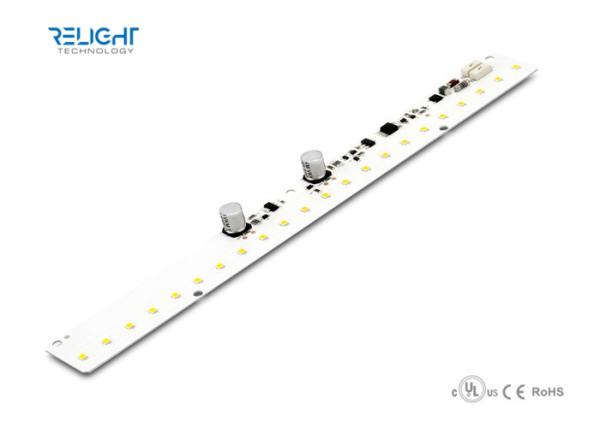

LED linear DC module show:

Dimmable 100 Lm/W 280*30mm 230V / 120V Linear LED AC Module For Panel Light

Dimmable 100 Lm/W 280*30mm 230V / 120V Linear LED AC Module For Panel Light

LED linear DC module Application:

1. Ceiling lights

2. Advertisement light-box

3. Commercial luminaires

4. Channel lights

5. Troffer lamps
6. Architectural lighting
7. Decorative lighting

8. Panel lights

9. Down lights

10. Highbay/lowbay / flood/ceiling lights

Dimmable 100 Lm/W 280*30mm 230V / 120V Linear LED AC Module For Panel Light

Dimmable 100 Lm/W 280*30mm 230V / 120V Linear LED AC Module For Panel Light

Competitive Advantage:

  • Customized design

  • LED component analyze, engineering file service

  • Ultra samples preparation

  • After-sales service

Our Service:

  • We will reply for you within 24hours once we get your inquiry.
  • Design and produce almost any LED pcb as your requirement.
  • We can offer you unique design and some our current models.
  • 100%testing guarrantees stable quality, ISO 9001:2000 ,UL, CE&RoHS certification.

Quotation Requirement :

  • led pcb's size;
  • led pcb's model;
  • led lights' quantity;
  • led pcb's quantity.

Why us Relight?

High Quality

Our CE/RoHS standards insure quality assemblies from start to finish.

Whether it's a simple custom product or a complex turnkey production run,

Relight will adhere to the highest quality standards.

--------------------------------------------------------------------------------

Super Capable

Relight offers the latest in assembly capabilities and qualifications insuring that

quality is built into every product we produce.

------------------------------------------------------------------------------

Many years' Experience

When it comes to your build you want a partner you can depend on.

Our management team has over 8 years of combined industry knowledge. O

ur engineering team has over 10years experience.

--------------------------------------------------------------------------------

Customer First

Protecting your Intellectual Property is job one! Our staff of trained professionals

are all working under a strict confidentiality contract and treat your important

documentation as they would their own.

----------------------------------------------------------------------------

Professional Engineer

We pride ourselves on our ability to custom tailor programs around our customers' needs.
