High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards
High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards
High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards
High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards
High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards
High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards
Specifications
Brand Name :
Relight
Model Number :
AC LED module
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
10 Business Days
Packaging Details :
Custom Design or Standard Box Packing
Color :
Cool White
CCT :
2700-6500
Power :
9W
Illumination: :
4000
Voltage: :
230V
Diameter: :
D100mm
Viewing Angle :
120
Material: :
Aluminum PCB
Warranty: :
3 Years
Description

Detailed Product Description

Material: Aluminum PCB CCT: 2700-6000K
Luminous Flux(lm): 4000 Power:: 9W
Warranty:: 3 Years CRI: 90

Detailed Product Description

CCT: 2700-5700K PCB Materials: ALUMINUM
LED: 2835*28pcs CRI: 80/90ra
Lumen: 810-900lm Size: 100mm
THDI: <15% PF: 0.9

AC230V input directly led round module 16W ultra-low flicker 1.5% with EMI compliance

Quick details chart:

*Power: 14W
* LED: Samsung/ JF(2835*28pcs )
* PCB Materials: Aluminum
* PCB Size: Dia700mm
* Flux: 810-900lm
* CCT: 2700K/3000K/4000K @80ra
* PF:>0.9
* SDCM<5
* Dimming: Non-dim / Triac dim/ 1-10V dim
* Life span: 50000hrs
* Warranty: 3-5years

* PEMI compliance
Different CCT Available: 2700K, 3000K, 4000K, 5000K, 5700K

Features:

* AC 120V input directly

* THDI: <15%
* Surge protection: 2.5KV
* High-pot level: 1.5KV
* Ultra-low Flicker: <1.5%
* Various CCT available

Application:
* Panel Light
* DownLight
* Ceiling Light

* Pendant
* Wall Light

Standard Round Module series:

P/N Size (mm) Input (Vac) PF Flicker(%) Power(W) Flux(Lm) CRI
RL-HMD70A2801H016-830FF 70 230 0.9 <1.5 16 1400-1600 80
RL-HMD100A2802H016-830FF 100 230 0.9 <1.5 16 1500-1800 80
RL-HMD180A2802H023-830FF 180 230 0.9 <1.5 23 2000-2300 80
RL-HMD70A2801H016-830TB 70 230 0.9 <1.5 16 1600-1800 80
RL-HMD100A2802H016-830TB 100 230 0.9 <1.5 16 1600-1900 80
RL-HMD180A2802H023-830TB 180 230 0.9 <1.5 23 2300-2500 80

FAQ


Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.

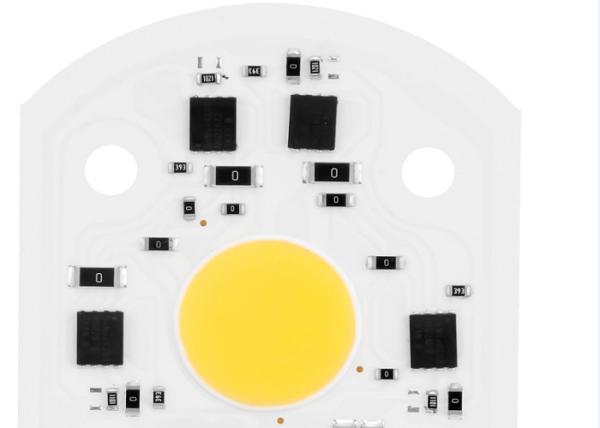

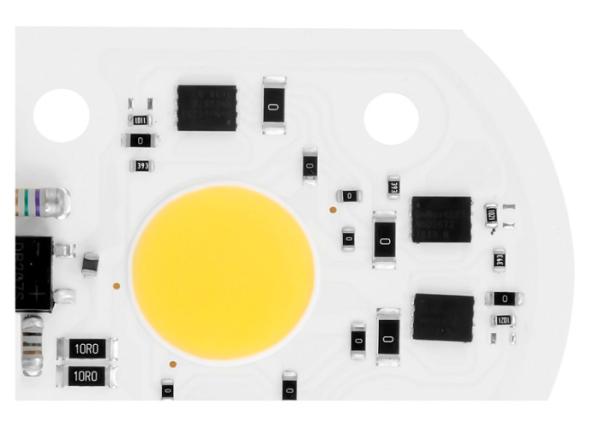

Product images:
High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards

High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards

High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards


Our company:

High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards

High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards

High CRI Round LED Module Panel Ring Shape , AC 230V 16w Driverless boards

How to contact us?
Judith
Email: sales13@relight-tech.com
WhatsApp: + 86 13424055790
Address: : 6th Floor, Building A, Guancheng Industrial Park,Gongming Town, Guangming District, Shenzhen, China
