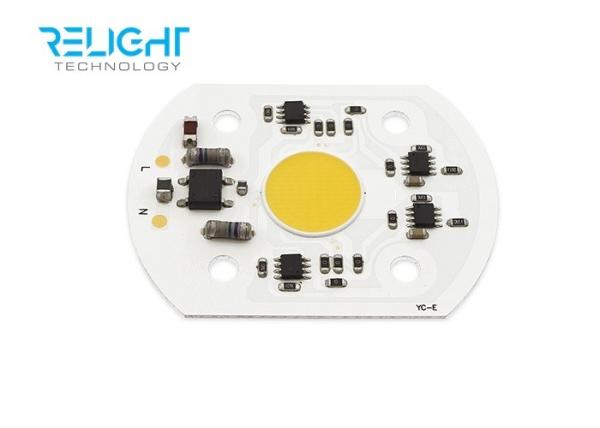

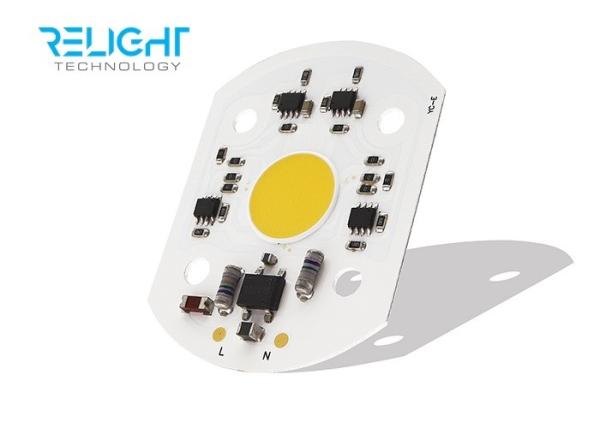

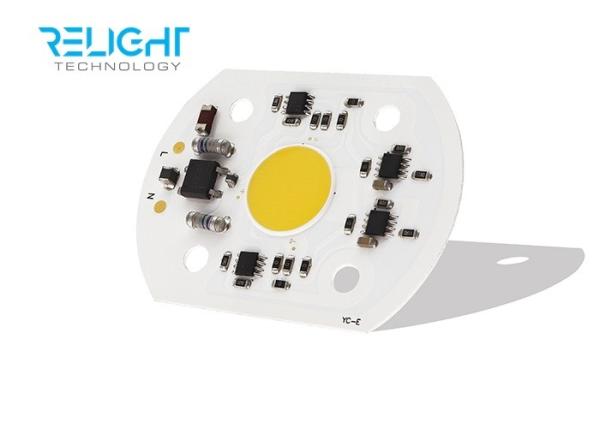

COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight
COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight
COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight
COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight
COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight
COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight
Specifications
Brand Name :
RELIGHT
Model Number :
DOB20W
Place of Origin :
CHINA
MOQ :
1K
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
7-14 days
Packaging Details :
Standard Packing
Certification :
CE ROSH UL
Part Number :
DOB50W
Size :
72*54 mm
PF :
0.98
Voltage :
230V
Ra :
>80
Power :
50W
Lumen :
5500
LM/W :
110LM/W
CRI :
80
Description

COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight

Quick Details:

P/N Size Voltage Power PF CRI Flux Efficiency CCT
mm Input V W - - LM lm/W -
RL-TOD5472A0050HV-830 54*72 230 50 0.95 80 5000 100 3000
RL-TOD5472A0050HV-840 54*72 230 50 0.95 80 5250 105 4000
RL-TOD5472A0050HV-857 54*72 230 50 0.95 80 5500 110 5700
RL-TOD5472A0060HV-830 54*72 230 60 0.95 80 5400 90 3000
RL-TOD5472A0060HV-840 54*72 230 60 0.95 80 5700 95 4000
RL-TOD5472A0060HV-857 54*72 230 60 0.95 80 6000 100 5700

Feature:

l CRI:80/90/95 options

l High total efficiency

l Various CCT available:2700-6500K

l CRI:80/90/95 options

l Solutions for Down-light/ Track light/ Flood light etc.

l 230Vac input directly without driver

l Surge protection 2.0KV

l Power factor higher than 0.95, Low THDI<10%

COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight

Characteristics:

Input Voltage 200~240Vac

Frequency 50/60Hz

Protection IP20

Surge level 2.0KV

Hi-pot 1.5KVac

THDI <10%

Storage temperature -30-85℃

Operation temperature -30-90℃(Ts of led components)

Beam Angle 120 deg

COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight

Application:

COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight

Competitive Advantage:

  • 1. Payment: T/T, Paypal,Western Union available
  • 2. Samples can be available within 3-5 working days; Wholesale Order: 25-30Days
  • 3. Shipping freight is quoted under your requests, Discouts are offered based on order quantities
  • 4. Shipping port: Shenzhen ,China

Why us Relight?

Super Capable

Relight offers the latest in assembly capabilities and qualifications insuring that

quality is built into every product we produce.

------------------------------------------------------------------------------

Many years' Experience

When it comes to your build you want a partner you can depend on.

Our management team has over 8 years of combined industry knowledge. O

ur engineering team has over 10years experience.

--------------------------------------------------------------------------------

Professional Engineer

We pride ourselves on our ability to custom tailor programs around our customers' needs.

COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight
