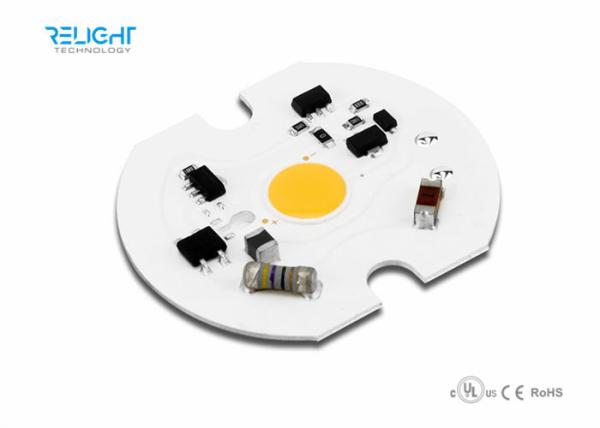

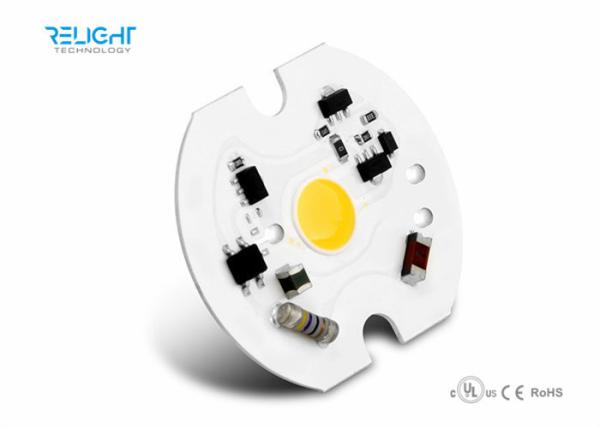

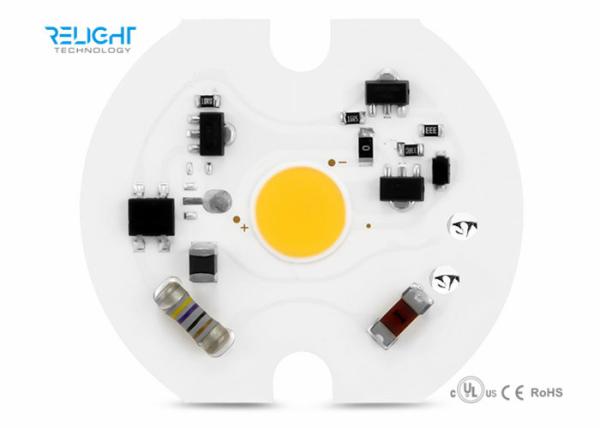

5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light
5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light
5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light
5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light
5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light
5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light
Specifications
Brand Name :
RELIGHT
Model Number :
SMD DOB Module
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
7-14 days
Packaging Details :
packed with anti-static plastic material
Certification :
CE ROSH UL
LED :
DOB module
Application :
Downlight , Track light
Power :
5W 10W 15W
CCT :
3000K-6500K
size :
40*36mm
CRI :
80/90
Lumen 5W :
500LM
Lumen 10W :
1000LM
Lumen 15W :
1500LM
Efficiency :
100LM/W
Description

RELIGHT 5W 10W 15W 230V AC DOB module for downlight track light

Quick details

5W 10W 15W 230V AC DOB module

Led source:

COB
Size 45*36mm

Rated Watts:

5W 10W 15W

Input Voltage:

230V

Material:

Al board Ceramics board

PCB Thermal conductivity:

2.0

IP

20

Luminus(lm):

5W-475LM 10W-1000LM 15W-1500LM

CCT(K):

3000-6000K

Ra:

80 90

Beam angle:

120

life span(H):

50 000

Operating temperature:

-30℃-55℃

Warranty:

3 years

Detailed parameters:

P/N Power PF CRI Flux Efficiency CCT
- W - - LM LM/W K
RL-TOD4036A0005HV-830 5W 0.95 80 475 95 3000
RL-TOD4036A0005HV-840 5W 0.95 80 500 100 4000
RL-TOD4036A0005HV-860 5W 0.95 80 500 100 6000
RL-TOD4036A0010HV-830 10W 0.95 80 950 95 3000
RL-TOD4036A0010HV-840 10W 0.95 80 1000 100 4000
RL-TOD4036A0010HV-860 10W 0.95 80 1000 100 6000
RL-TOD4036A0015HV-830 15W 0.95 80 1425 95 3000
RL-TOD4036A0015HV-840 15W 0.95 80 1500 100 4000
RL-TOD4036A0015HV-860 15W 0.95 80 1500 100 6000

Advantage:

  • CRI:80/90/95 options
  • High total efficiency
  • Various CCT available: 2700-6500K
  • CRI:80/90/95 options
  • Solutions for Down-light / Track light / Flood light etc.
  • 230Vac input directly without driver
  • Surge protection 2.0KV
  • Power factor higher than 0.95, Low THDI<10%


Product details:

5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light

5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light

Characteristics

  • Input Voltage 200~240Vac
  • Frequency 50/60Hz
  • Protection IP20
  • Surge level 2.0KV
  • Hi-pot 1.5KVac
  • THDI <10%
  • Storage temperature -30-85℃
  • Operation temperature -30-90℃(Ts of led components)
  • Beam Angle 120 deg

Application

  • Spot light
  • Track light
  • Down light
  • Bulb lamp

5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light

5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light

Why Relight?

  • Short lead time for sampling.
  • Professional after sale service team.
  • Visiting customers regularly to understand their real needs.
  • Cooperating with professional third-party laboratories to provide customers with professional testing and certifications.
  • Cooperating with professional logistics companies and provide express service.

5W 10W 15W AC 230V DOB LED Module Driver On Board For Downlight / Track Light
