Specifications
Brand Name :
SEEMYT
Model Number :
SMT-A3KD-A
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
USD30-60 per piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
5-10 working days for 500pcs
Packaging Details :
25*25*20CM/pcs, 2KG
Baud rate :
1200bps,2400bps,4800bps,9600bps,19200pbs,38400pbs
Protocol :
Pelco-D ,Pelco-P ,SAMSUNG
Communication :
RS-485
Power input :
DC 12V -1A
Communication distance :
max 1500m
Quantity control :
max 128 PTZ cameras
Ambient Temperature :
0℃~60℃
Relative Humidity :
90%RH
Dimension :
205mm*168mm*48 mm
Weight :
1.5KG
Description

Brief introduction

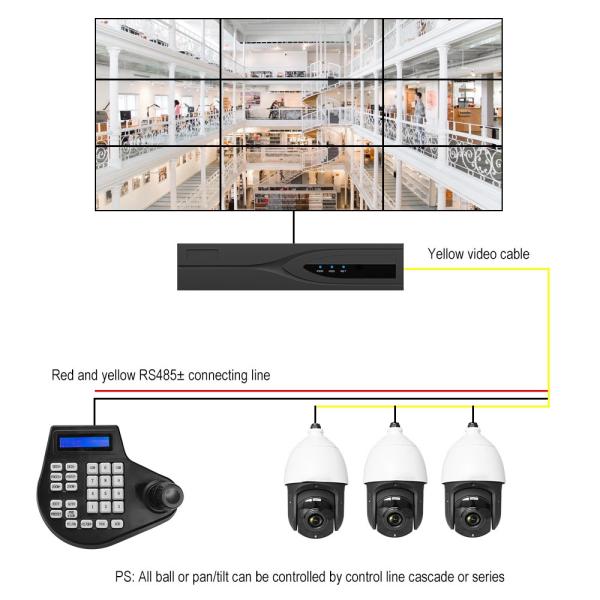

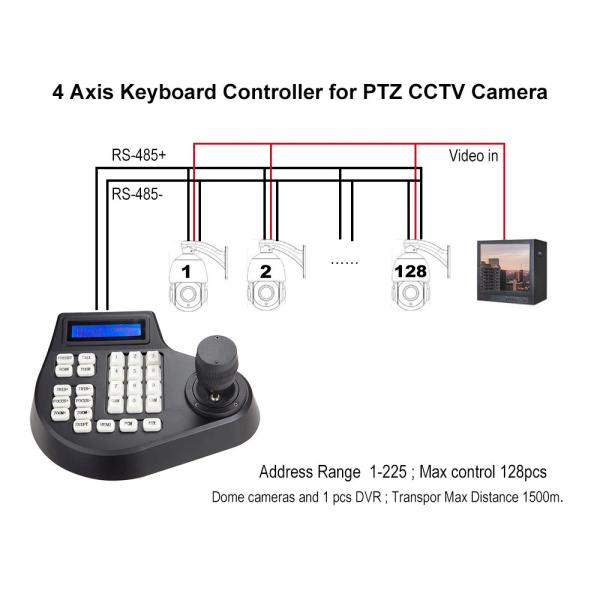

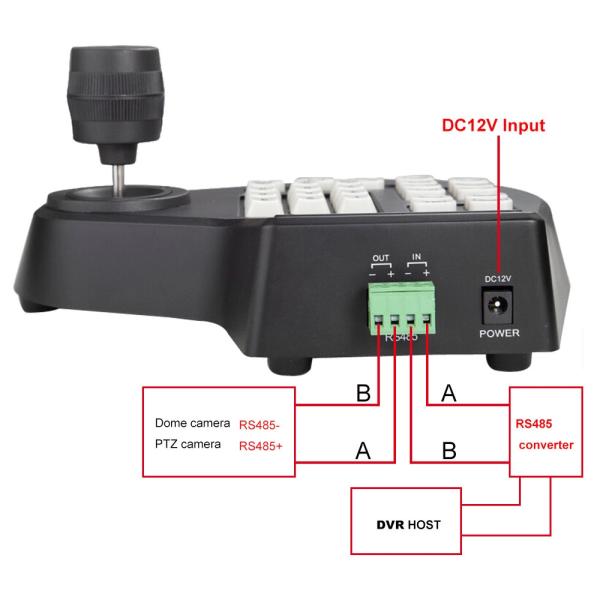

The keyboard controller can control high speed dome cameras, slow dome camera ,zoom camera , decoders, etc. The electric outlet between the controlling keyboard and the receiving terminal is EIA/RS – 485, which enables the keyboard to control as many as 128 dome cameras or other terminals within a maximal communication range of 1.5 Km.

Product introduction:
1. Baud rate: 1200bps,2400bps,4800bps,9600bps,19200pbs,38400pbs
2. Protocol:Pelco-D ,Pelco-P ,SAMSUNG
3. Communication: RS-485
4. Power input: DC 12V -1A
5. Communication distance: max 1500m
6. Can control max 128 speed domes
7. Password setup function
8. Ambient Temperature: 0℃~60℃
9. Relative Humidity:90%RH

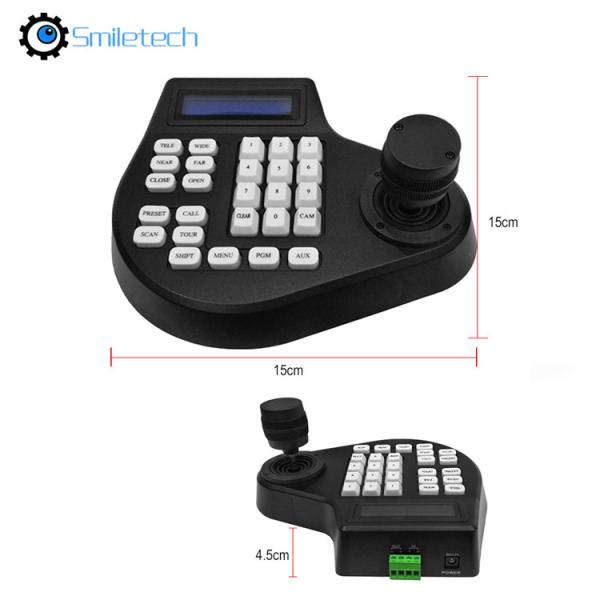

10. Dimension: 205mm*168mm*48 mm

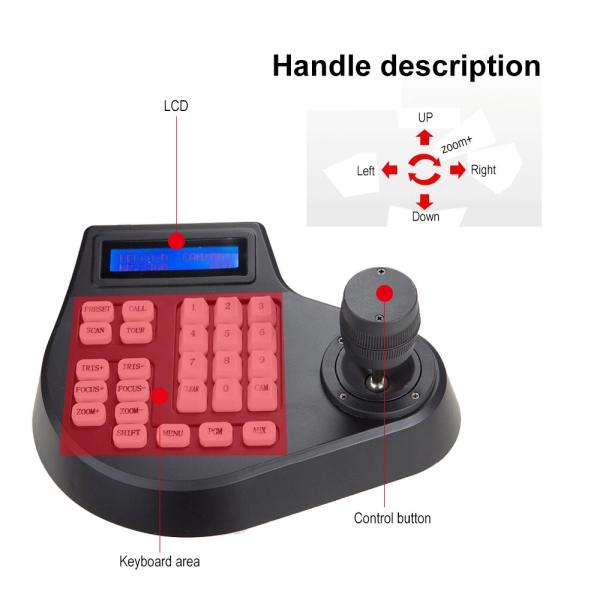

Description of Main Functions
The main functions of the keyboard include:
1. The keyboard output adopts photoelectric insulated 485 control, which
provides strong anti-jamming and long-range transmission.
2. The range for dome camera or decoder address setup: 1~255.
3. Variable-speed operation can be applied to the built-in dome of the high speed dome camera.
4. Pre-set positions can be setup and previewed in the high speed dome camera.
5. Up to four tour routes can be setup and previewed in the high speed dome
camera, with each tour having a maximum of 16 pre-set positions, dwell time and
speed for each pre-set positions programmable.
6. The high speed dome camera can be manually / automatically controlled.
7. Lens zoom ratio, focus and iris can be manually controlled.
8. More than one terminals, such as dome cameras and decoders, can be controlled.

3D Axis joystick keyboard AHD TVI CVI analog speed dome PTZ Controller RS485 Pelco-D/P display for surveillance camera3D Axis joystick keyboard AHD TVI CVI analog speed dome PTZ Controller RS485 Pelco-D/P display for surveillance camera3D Axis joystick keyboard AHD TVI CVI analog speed dome PTZ Controller RS485 Pelco-D/P display for surveillance camera3D Axis joystick keyboard AHD TVI CVI analog speed dome PTZ Controller RS485 Pelco-D/P display for surveillance camera
