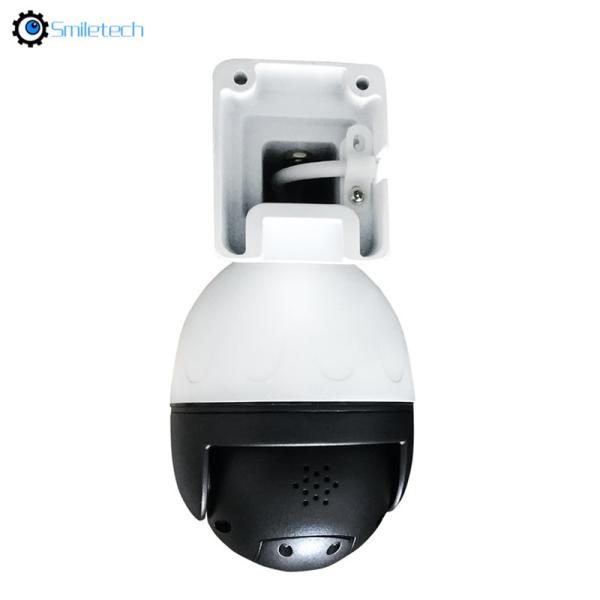

Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
Specifications
Brand Name :
SEEMYT
Model Number :
SMT-NM2RU-5MP-WIFI
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
USD50-80 per piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
5-10 working days for 100pcs
Packaging Details :
1.4KG/pcs,22*20*14cm/pcs,43*43*46cm/carton,17.5KG/carton,12pcs/carton
Name :
2.5 inch outdoor intelligent PTZ camera
Image sensor :
1/2.8" progressive CMOS
Effective pixel :
2MP/5MP/8.0MP 3840*2160&18fps
Lens :
2.7-13.5mm zoom lens
Optical zoom :
5X optical zoom
LED :
6pcs 42μ array LED lights
IR distance :
60m
Pan range :
0°-355°Continuous rotation
Tilt range :
0°-90° (Auto Flip)
Horizontal speed :
0.1°-45°/s
Vertical speed :
128
Cruise track :
8 groups, each group support 16 presets
Humidity :
≤95% Humidity (Non condensing)
Consumption :
<20W
Work temperature :
-40°~60℃
Protection :
waterproof IP66
Power supply :
DC12V2A,POE(Optional)
Chips :
Hisilicon3516A+SONY334
Description

Product features:

1.Adopt high performance 1/2.8" CMOS. support 5.0MP/2.0MP resolution.

2.Support dual stream compression technology. Optional function: WIFI/POE/Audio/Alarm/ SD card slot.

3.Using imported dot matrix large glass lamps and imported high speed glass lamp light, to ensure the IR distance 60 m; product life can reach 30,000 hours.

4.Intelligent infrared control technology can automatically control the infrared light according to the environment.

Under the premise of ensuring monitoring results, it can effectively enhance the infrared lamp's life and ensure

the product stability.

5.Constant current circuit design, to ensure stable operation of the infrared light. And it won't reduce the infrared lamps' life which caused by the changing of the power supply.

6.Efficient cooling structure, using physical means heat, which can effectively reduce the temperature of the inside dome camera, to prevent the inner to be fogging, and to ensure the machine's stability.

7.Works with Connect using any iOS / Android device or our dedicated PC CMS Software.

8.Live Mobile view with advanced peer to peer(P2P) technology seamless connectivity worldwide. No DDNS or Port forwarding required.

Technical Parameter:

Model No. SMT-NM2RU-2MP SMT-NM2RU-5MP
Signal model PAL/NTSC
Image sensor 1/2.8" progressive CMOS Hisilicon3516E+SONY307

1/2.5" progressive CMOS

Hisilicon3516E+SONY335
Effective pixel 2.0MP (1920*1080) 5.0MP (2592*1944)
Horizontal resolution 2.0 Megapixels 5.0 Megapixels
Output pixel 1920*1080&30fps 1920*1080&25fps 1280*720&50fps 2592*1944&15fps 2592*1520&22fps 2304*1296&30fps
Minimum illumination 0.01Lux&F1.2(AGC ON); 0Lux(IR ON) 0.05Lux&F1.2(AGC ON); 0Lux(IR ON)
S/N radio ≥50dB(AGC OFF)
Iris F1.6-3.0
FOV 3.8°-72°
D/N IR-CUT
BLC Auto
White balance Auto
Backlight compensation On/off
Audio frequency Optional
Audio compression standard G711,PCM
Electronic shutter PAL:1/25～1/100000s NTSC:1/30～1/100000s
Focus length 2.7-13.5mm
Optical focus 5X
LED 6pcs LED lights
Support ambient light detection IR illumination on 1-15 grades selectable
Auto control IR LED PWM
Night vision Up to 60m
Focus system Auto/Manual
Pan range 0°-355°Continuous rotation
Tilt range 0°-90° (Auto Flip)
Horizontal speed 0.1°-30°/s
Vertical speed 0.1°-20°/s
Presets 128
Cruise track 8 groups, each group support 16 presets.
Pattern Scan 1 group
Others Scan Support Horizontal scan, deuce area scan, scan random
Video compression H.265 Main Profile / H.264 High profile / M-JPEG
Audio compression G.711, G.726
Primary stream 1920*1080&30fps 2592*1944&15fps
Secondary stream 1280*720&50fps 2304*1296&30fps
Video bit rate 32Kbps-16Mbps continuously adjustable, support CBR / VBR
Communications Protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTPS,DNS,ARP

DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
Compatibility IE, CMS, HCMS, HIKVISION, UC ONVIF
Browser Support IE7/IE8+Chrome8+Firefox3.5+Safari5
P2P Android/IOS
Humidity ≤95% Humidity (Non condensing)
Cooling Structure Dustproof structure outside the circle
Protection waterproof IP66
Lightning Protection Transient voltage 3000V, surge protection and voltage transient protection weather proof
Power supply DC12V(2A), POE(Optional)
Consumption < 20W
Work temperature -10°~50℃
Interface Built in RJ45network interface support 10M/100M IP DATA, Power input
Size 172*168*111(mm)
Net Weight 450g

Mini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome cameraMini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome cameraMini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome cameraMini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome cameraMini 5MP 5X zoom IR WIFI PTZ two way audio AI motion detection waterproof IP66 IR network 2MP outdoor speed dome camera
